Family Designation: PS BT-MAS (PULL STUD) BT Pull stud with MAS retention knob

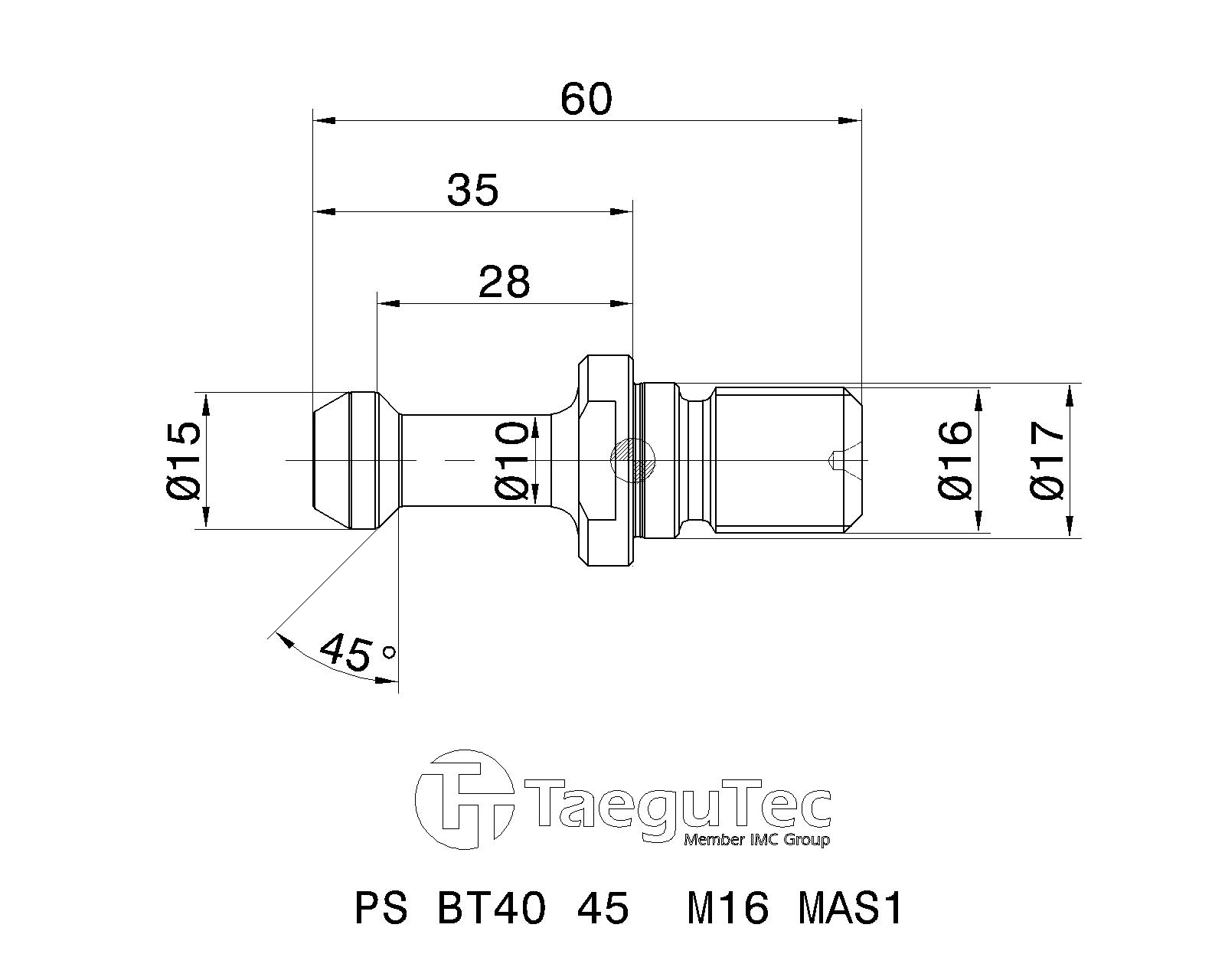

Item Designation: PS BT40 45 M16 MAS1
SS CRKS BD_3 BD_2 BD CND LB OAL LB_2 BHTA Fig GICATGIREMgiic
40 M16 15.0010.0017.00-28.0060.035.0045.014650696 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesSTPL
4650696 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=0&cat=4650696&itemDesc=PS BT40 45 M16 MAS1"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4650696', 'PS BT40 45 M16 MAS1' , 'DXF' , '4650696 - PS BT40 45 M16 MAS1');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4650696&itemDesc=PS BT40 45 M16 MAS1"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
Items Per Package : 1
Fig. 1: Coolant holes only in items with a "B" suffix
Fig. 2: With external O-ring and coolant hole
Fig. 3: With external and internal O-rings and coolant hole
3D Representation
2D Representation
