Family Designation: PS BT-JIS (PULL STUD) BT Pull stud with JIS 63398 retention knob


Item Designation: PS BT40 15 M16 JIS OB

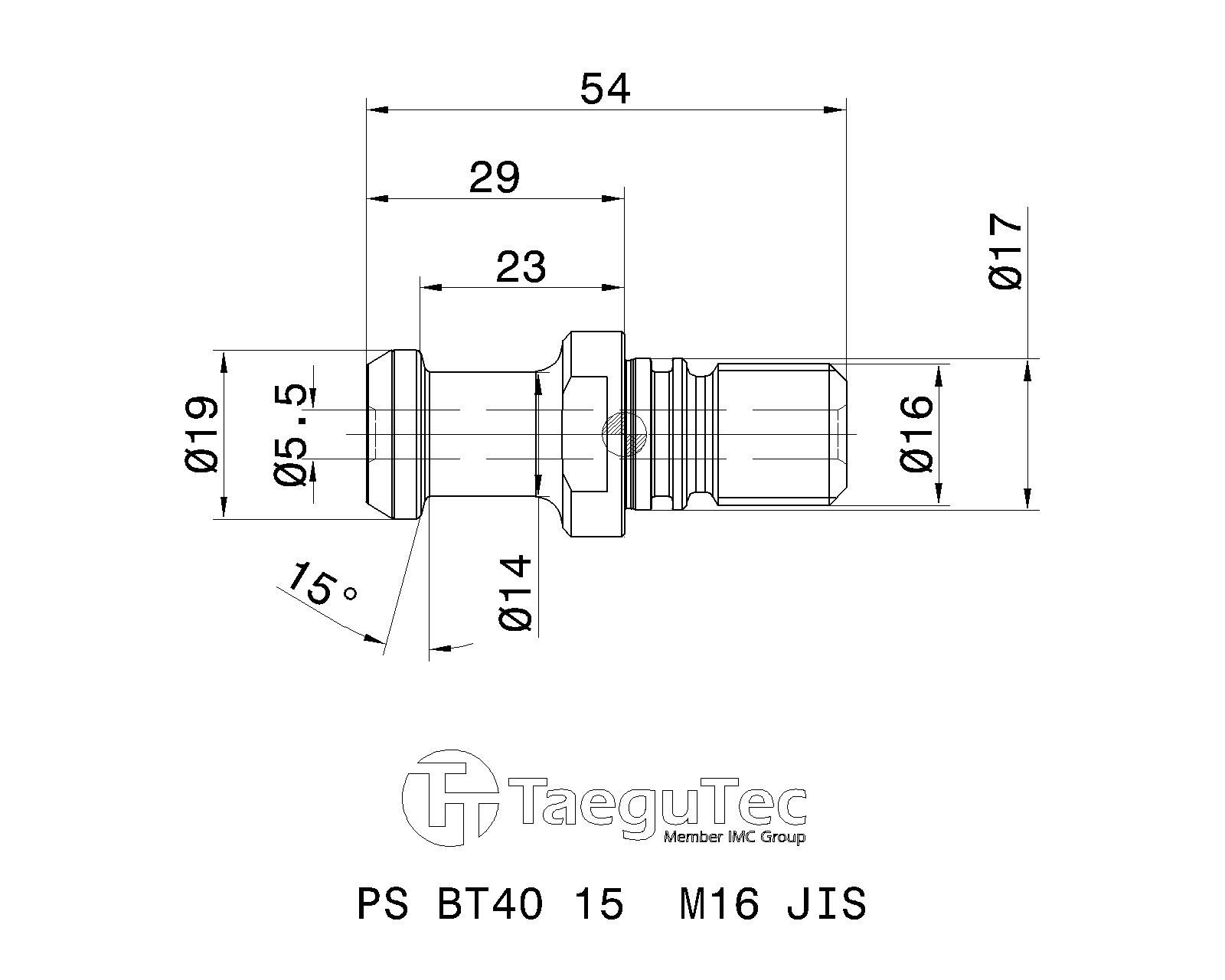

SS CRKS BD_3 BD_2 BD CND LB OAL LB_2 BHTA Fig GICATGIREMgiic
40 M16 19.0014.0017.005.523.0054.029.0015.014650784 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesSTPL
4650784 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=0&cat=4650784&itemDesc=PS BT40 15 M16 JIS OB"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4650784', 'PS BT40 15 M16 JIS OB' , 'DXF' , '4650784 - PS BT40 15 M16 JIS OB');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4650784&itemDesc=PS BT40 15 M16 JIS OB"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
Items Per Package : 1
Fig. 1: Coolant holes only in items with a "B" suffix
Fig. 2: With external O-ring and coolant hole
Fig. 3: With external and internal O-rings and coolant hole
