TaeguTec Cutting Tools - Metal Working Tools - PS BT-JIS (PULL STUD) : 4650786 - PS BT50 15 M24 JIS OBO
× Login Information
Family Designation: PS BT-JIS (PULL STUD) BT Pull stud with JIS 63398 retention knob

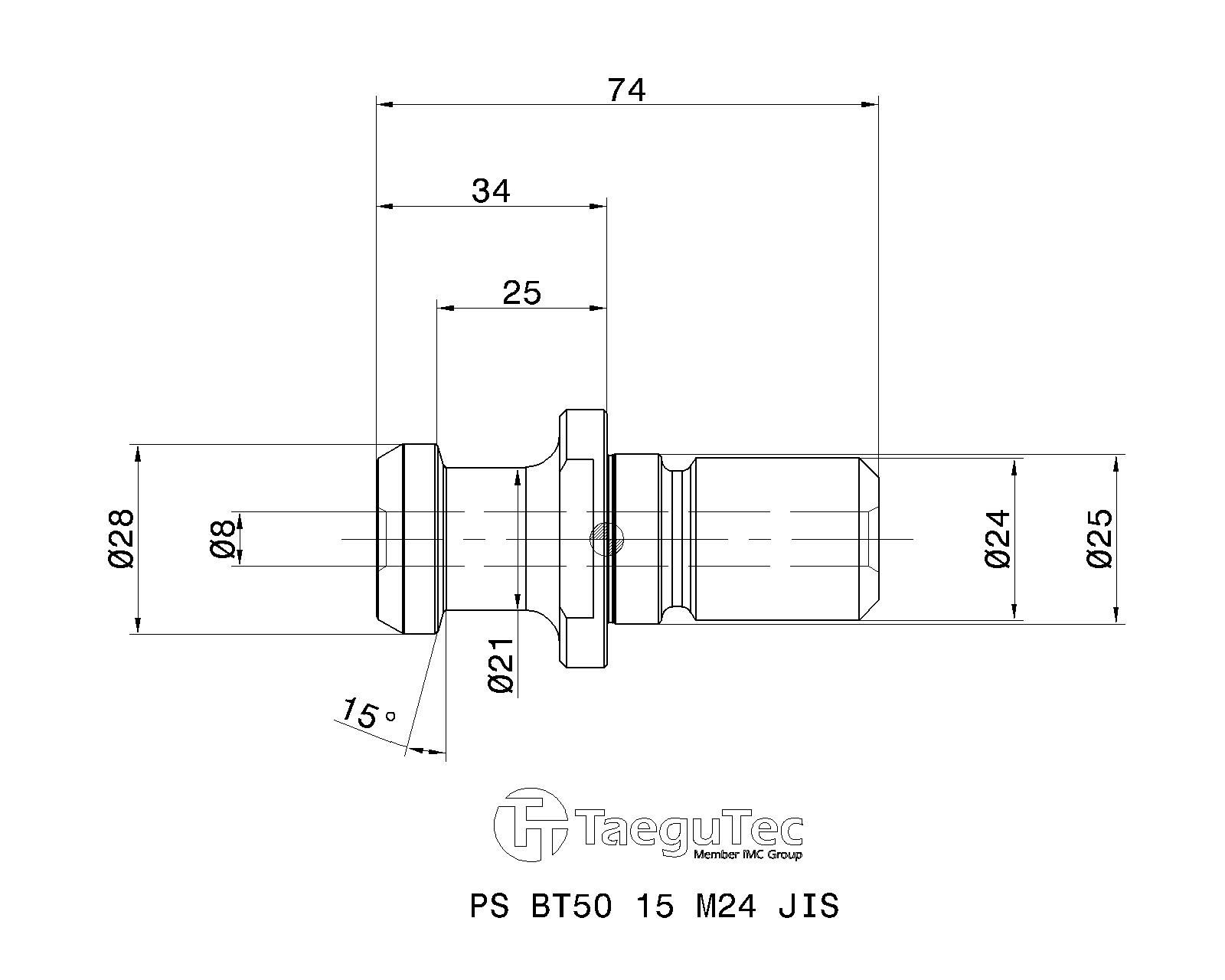

Item Designation: PS BT50 15 M24 JIS OBO
SS CRKS BD_3 BD_2 BD CND LB OAL LB_2 BHTA Fig GICATGIREMgiic
50 M24 28.0021.0025.008.025.0074.034.0015.024650786 0
Catalog NoFiles PackageGISCGTCAdd to favoritesSTPL
4650786 ** 9<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=0&stplFolder=STPL&p21=0&cat=4650786&itemDesc=PS BT50 15 M24 JIS OBO"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4650786&itemDesc=PS BT50 15 M24 JIS OBO"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
Items Per Package : 1
(**) Requires a price and delivery time quotation
 Fig. 1: Coolant holes only in items with a "B" suffix
Fig. 2: With external O-ring and coolant hole
Fig. 3: With external and internal O-rings and coolant hole
3D Representation
2D Representation
