TaeguTec Cutting Tools - Metal Working Tools - GTIN ER-ISO (TAPPING) : 4651052 - GTIN ER32 ISO 12.50X10.00
× Login Information

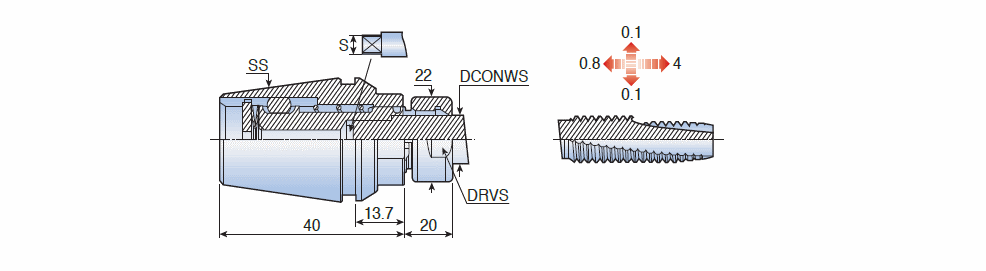

Family Designation: GTIN ER-ISO (TAPPING) Tapping collets of ISO type taps with tension & compression floating mechanism for ER 32 collet chucks


 IT_SURFACE HARDNESS 58~60HRC  IT_N5
Item Designation: GTIN ER32 ISO 12.50X10.00
SS Tap min Tap max DCONWS S DRVS ClssID LTA GICATGIREMgiic
ER32 M16 M16 12.5010.0020.00.22726F59BDC3B08 ~33.00~4651052 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4651052 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4651052&cat=4651052&itemDesc=GTIN ER32 ISO 12.50X10.00"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4651052', 'GTIN ER32 ISO 12.50X10.00' , 'DXF' , '4651052 - GTIN ER32 ISO 12.50X10.00');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4651052&itemDesc=GTIN ER32 ISO 12.50X10.00"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
No coolant should be induced through the tap collet, as it will cause malfunctioning of the mechanism
3D Representation

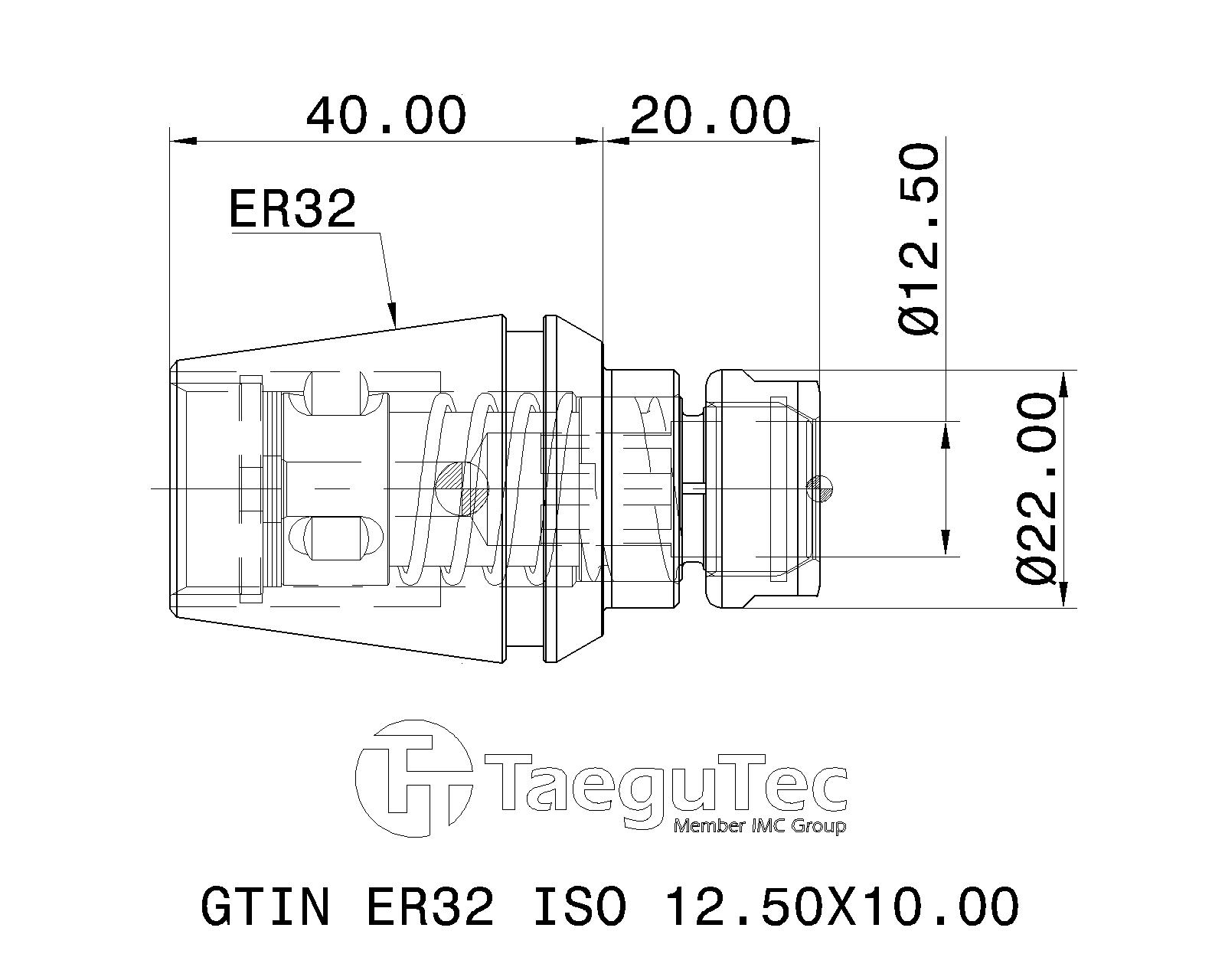

2D Representation
