Family Designation: DIN69871-SRK Thermal shrinking chucks with DIN 69871 form AD taper shanks for solid carbide tools only


 IT_BALANCE_25000 RPM  IT_BALANCE GRADE  IT_RUN-OUT A0.003  IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 50~52HRC  IT_N5
Item Designation: DIN69871 40 SRK 10X85
SS DCONWS BTED BD LPR LBX LB Lmin ADJRGA LSCWS CRKS THID Shank ClssID LTA CCTWS CCFWS LS GICATGIREMgiic
40 10.0016.0024.50104.1085.060.3030.0~6.0036.0M16 M12 0.94C ~71EAD3871D313 ~104.10~ZYL ~01 ~68.4~4651725 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4651725 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4651725&cat=4651725&itemDesc=DIN69871 40 SRK 10X85"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4651725', 'DIN69871 40 SRK 10X85' , 'DXF' , '4651725 - DIN69871 40 SRK 10X85');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4651725&itemDesc=DIN69871 40 SRK 10X85"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Add B for coolant through the flange
3D Representation

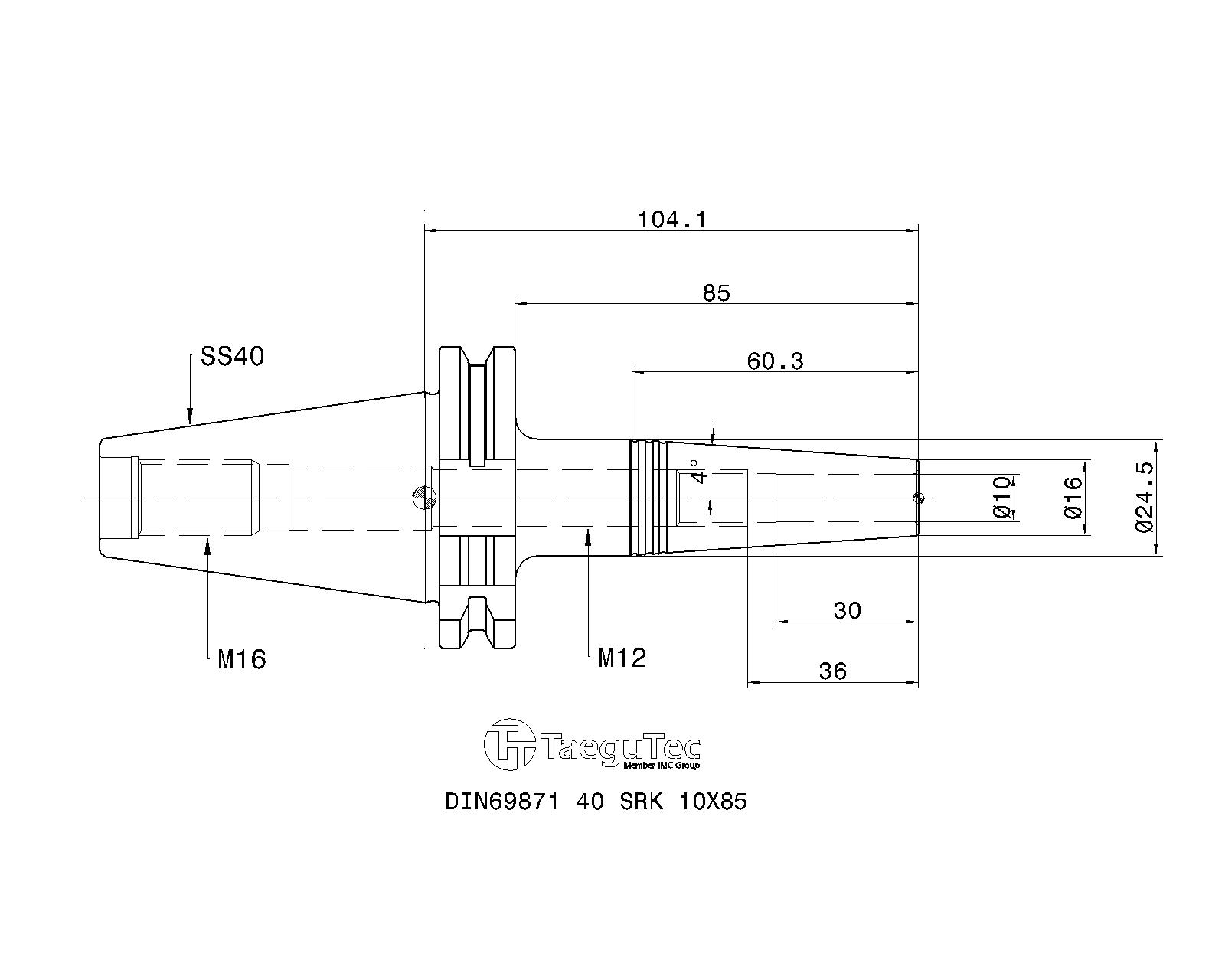

2D Representation
