Family Designation: HSK A-THC (Hydraulic) Hydraulic chucks with HSK DIN 69893 form A taper shanks


 IT_N5  IT_RUN-OUT A0.003  IT_SURFACE HARDNESS 58~60HRC  IT_BALANCE GRADE  IT_BALANCE_20000 RPM
Item Designation: HSK A 63 THC 32-125
DCONMS DCONWS BD BD_2 LPR LBX LB ADJRGA LSCWS Lmin THID S1 Shank ClssID LTA CCTWS CCFWS GICATGIREMgiic
63 32.0063.0075.00125.0099.063.0010.0065.055.0~M16X1 32.00~C ~71EAD3871D313 ~125.00~ZYL ~01 ~4652922 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4652922 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=0&stplFolder=0&p21=4652922&cat=4652922&itemDesc=HSK A 63 THC 32-125"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4652922', 'HSK A 63 THC 32-125' , 'DXF' , '4652922 - HSK A 63 THC 32-125');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4652922&itemDesc=HSK A 63 THC 32-125"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

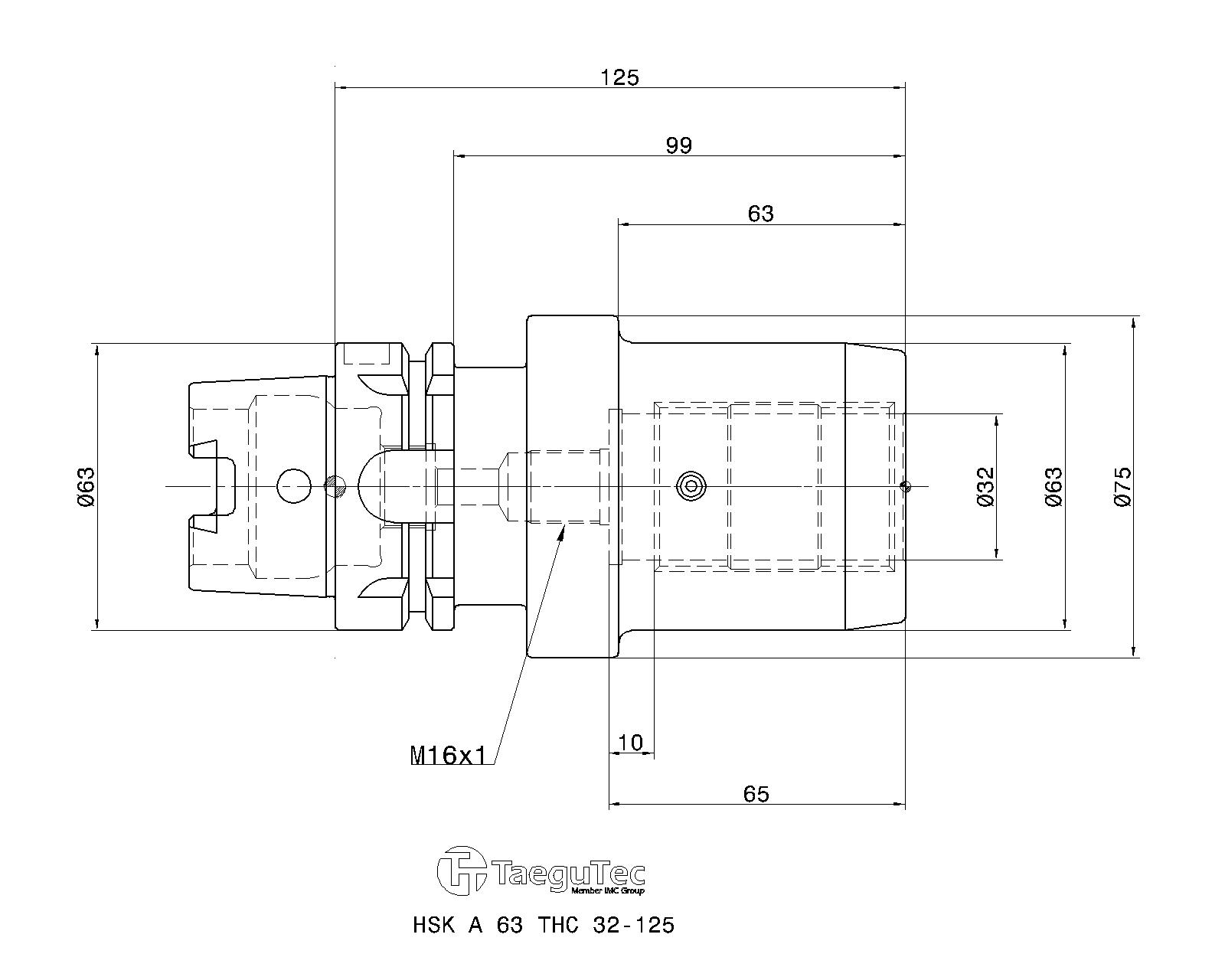

2D Representation
