Family Designation: HSK FM-ER DIN 6499 ER collet chucks with HSK DIN 69893 FM taper shanks
(1) The driving pins can be removed to turn the toolholder into a standard HSK F 63 type

(1) The driving pins can be removed to turn the toolholder into a standard HSK F 63 type

 IT_BALANCE_25000 RPM  IT_BALANCE GRADE  IT_RUN-OUT A0.003  IT_SURFACE HARDNESS 58~60HRC  IT_N5
Item Designation: HSK FM 63 ER 16X160
DCONMS CSI DCONNWS DCONXWS BD BD_2 LPR LBX LB THID S1 HSK FM d ClssID LTA CCTWS CCFWS GICATGIREMgiic
63 ER16 0.5010.0028.0040.00160.00134.085.601.32M10 16.00~ 63 ~ 0.5-10 ~71EAD3871D313 ~149.40~SZD ~02 ~4653140 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4653140 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4653140&cat=4653140&itemDesc=HSK FM 63 ER 16X160"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4653140', 'HSK FM 63 ER 16X160' , 'DXF' , '4653140 - HSK FM 63 ER 16X160');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4653140&itemDesc=HSK FM 63 ER 16X160"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

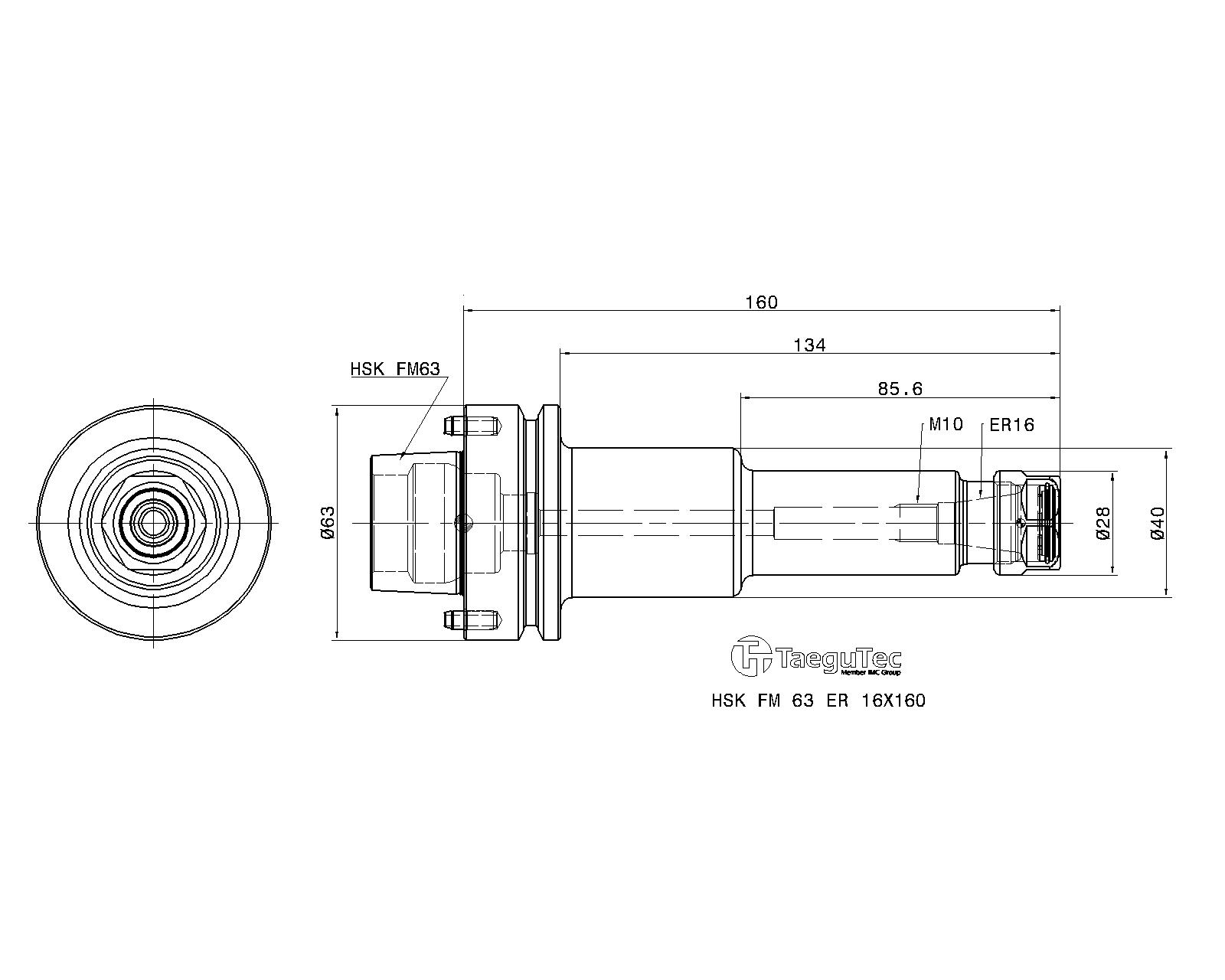

2D Representation
