Family Designation: HSK FM-ER DIN 6499 ER collet chucks with HSK DIN 69893 FM taper shanks
(1) The driving pins can be removed to turn the toolholder into a standard HSK F 63 type

(1) The driving pins can be removed to turn the toolholder into a standard HSK F 63 type

 IT_BALANCE_25000 RPM                               IT_BALANCE GRADE                                   IT_RUN-OUT A0.003                                  IT_SURFACE HARDNESS 58~60HRC                       IT_N5

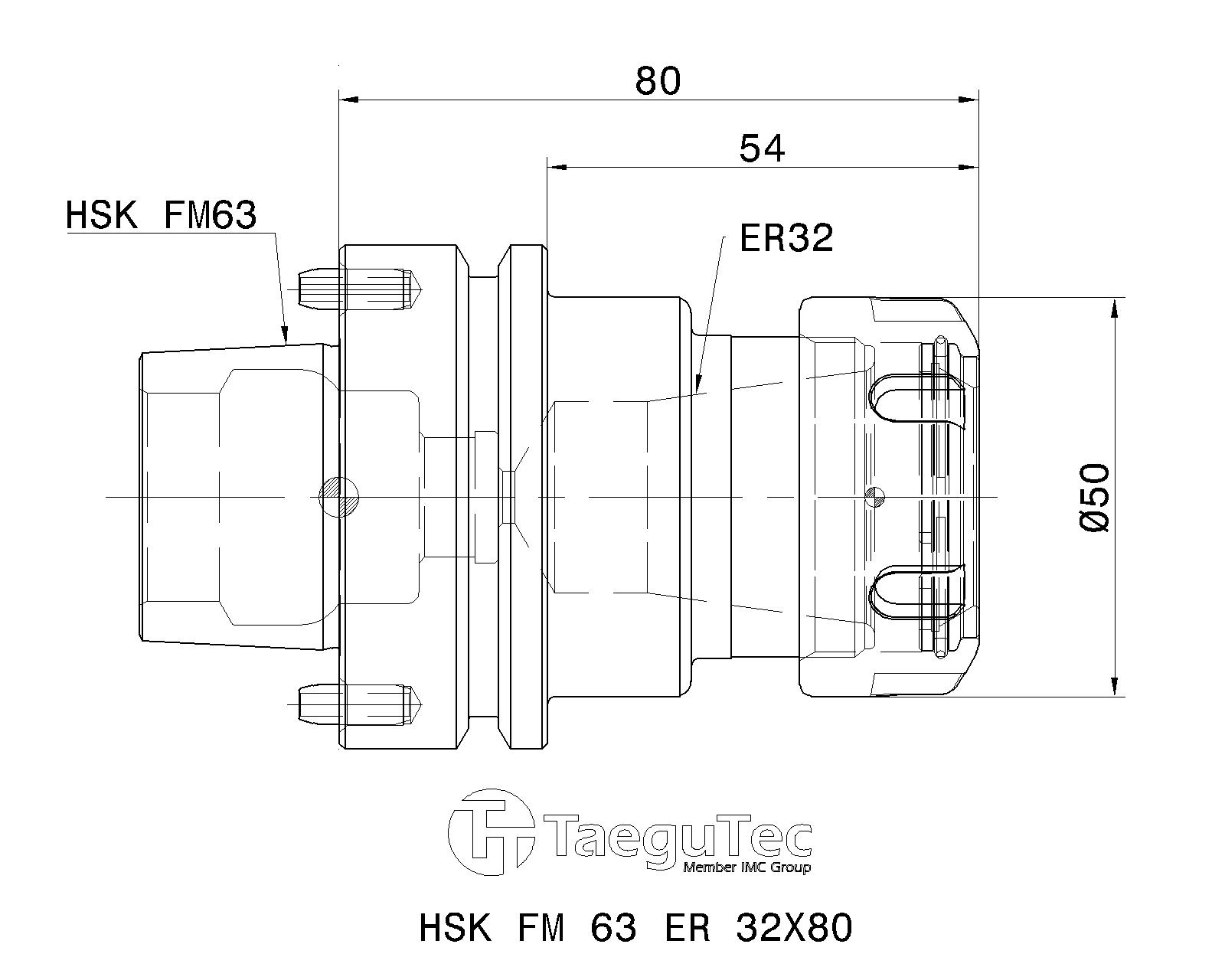

Item Designation: HSK FM 63 ER 32X80
DCONMS CSI DCONNWS DCONXWS BD BD_2 LPR LBX LB THID S1 HSK FM d ClssID LTA CCTWS CCFWS GICATGIREMgiic
63 ER32 2.0020.0050.00-80.0054.0-0.9632.00~ 63 ~ 2-20 ~71EAD3871D313 ~67.03~SZD ~02 ~4653141 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4653141 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4653141&cat=4653141&itemDesc=HSK FM 63 ER 32X80"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4653141', 'HSK FM 63 ER 32X80' , 'DXF' , '4653141 - HSK FM 63 ER 32X80');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4653141&itemDesc=HSK FM 63 ER 32X80"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation
2D Representation
