Family Designation: HSK A-EM (Endmill Holer) Weldon DIN 6359/DIN 6359 form B end mill holders with HSK DIN69893 form A taper shanks


 IT_N5  IT_SURFACE HARDNESS 58~60HRC  IT_RUN-OUT A0.005
Item Designation: HSK A 100 EM 18X100
DCONMS DCONWS BD BD_2 LPR LBX LB Shank ClssID LTA CCTWS CCFWS GICATGIREMgiic
100 18.0050.00-100.0071.0-2.93W ~71EAD3871D313 ~100.00~ZYL ~10 ~4653154 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4653154 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=0&stplFolder=STPL&p21=4653154&cat=4653154&itemDesc=HSK A 100 EM 18X100"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4653154', 'HSK A 100 EM 18X100' , 'DXF' , '4653154 - HSK A 100 EM 18X100');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4653154&itemDesc=HSK A 100 EM 18X100"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

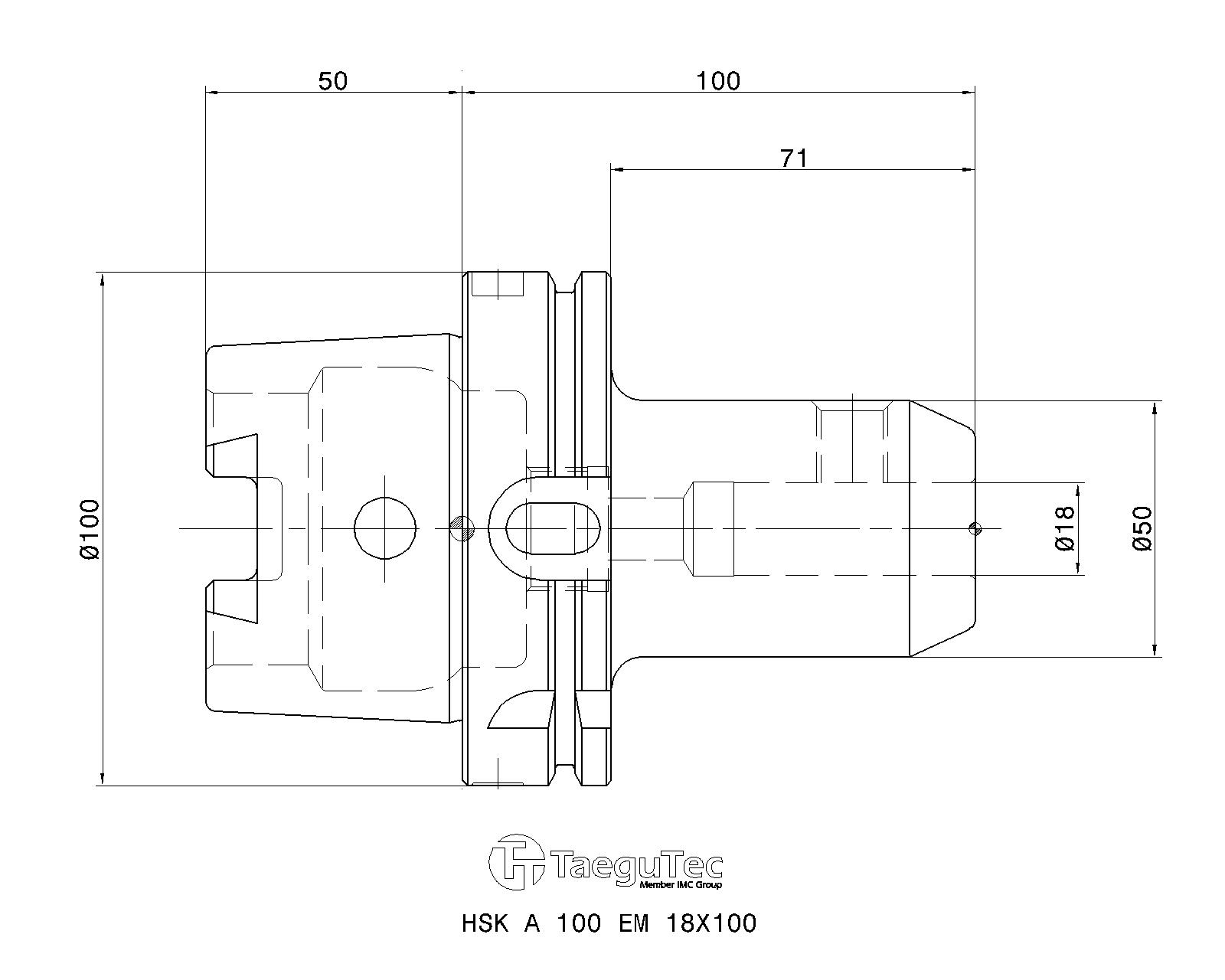

2D Representation
