Family Designation: HSK A-SRKIN Thermal shrinking chucks with HSK DIN 69893 form A taper shanks for solid carbide and steel shank tools


 IT_BALANCE_25000 RPM  IT_BALANCE GRADE  IT_RUN-OUT A0.003  IT_SURFACE HARDNESS 50~52HRC  IT_N5

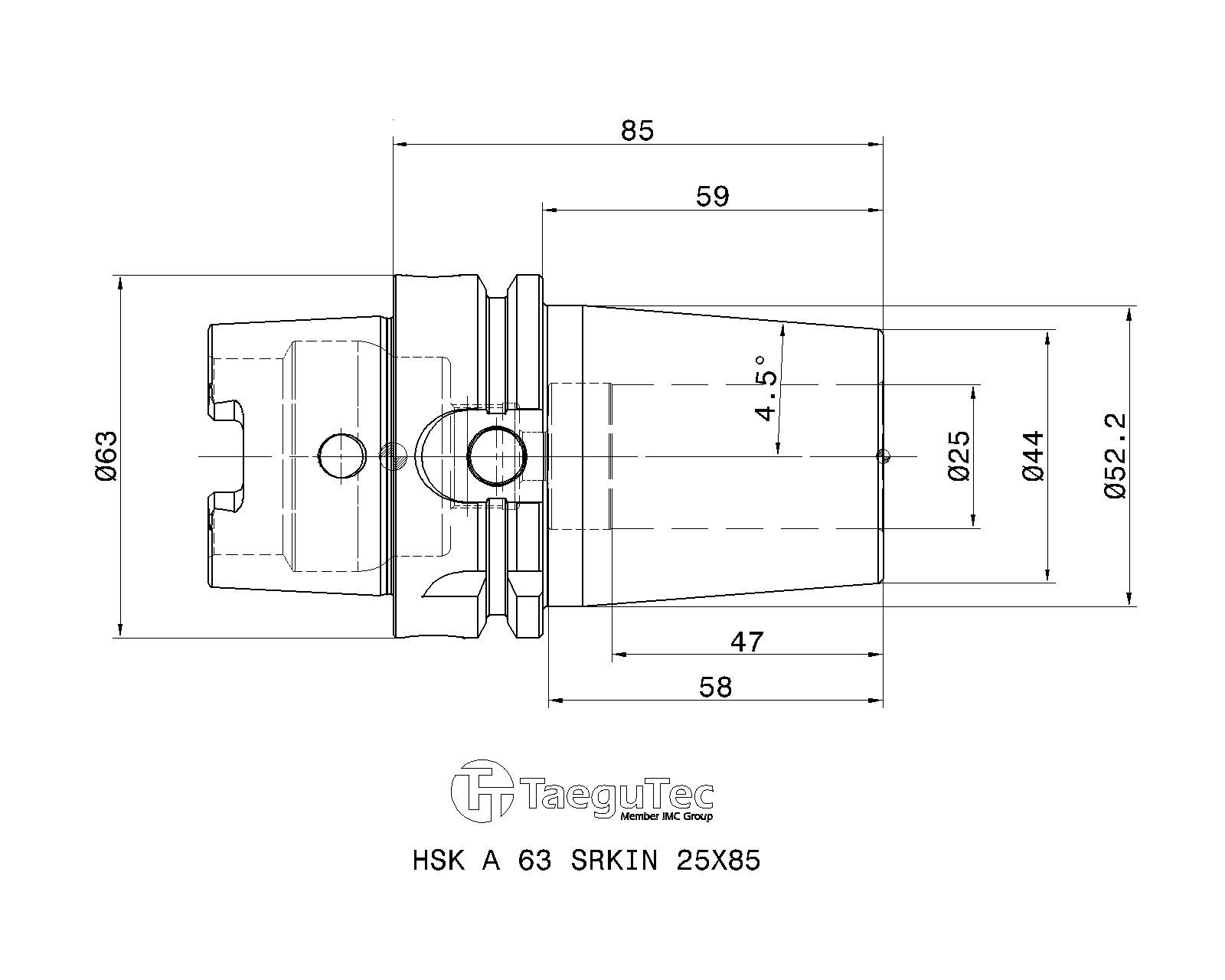

Item Designation: HSK A 63 SRKIN 25X 85
DCONMS DCONWS BTED BD LPR LBX LB Lmin ADJRGA LSCWS THID Hex Key Shank ClssID LTA CCTWS CCFWS GICATGIREMgiic
63 25.0053.0044.0085.0059.0-47.0~11.0058.0- - 1.02C ~71EAD3871D313 ~85.00~ZYL ~01 ~4655085 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4655085 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4655085&cat=4655085&itemDesc=HSK A 63 SRKIN 25X 85"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4655085', 'HSK A 63 SRKIN 25X 85' , 'DXF' , '4655085 - HSK A 63 SRKIN 25X 85');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4655085&itemDesc=HSK A 63 SRKIN 25X 85"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Use only inductive heating device for T-SHRINK holders
3D Representation
2D Representation
