Family Designation: BT-TSK (Slim Chuck) High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in MAS-403 form AD taper shanks


 IT_N5  IT_RUN-OUT A0.003  IT_SURFACE HARDNESS 58~60HRC  IT_BALANCE GRADE  IT_TAPER SHANK GRADE  IT_BALANCE_20000 RPM

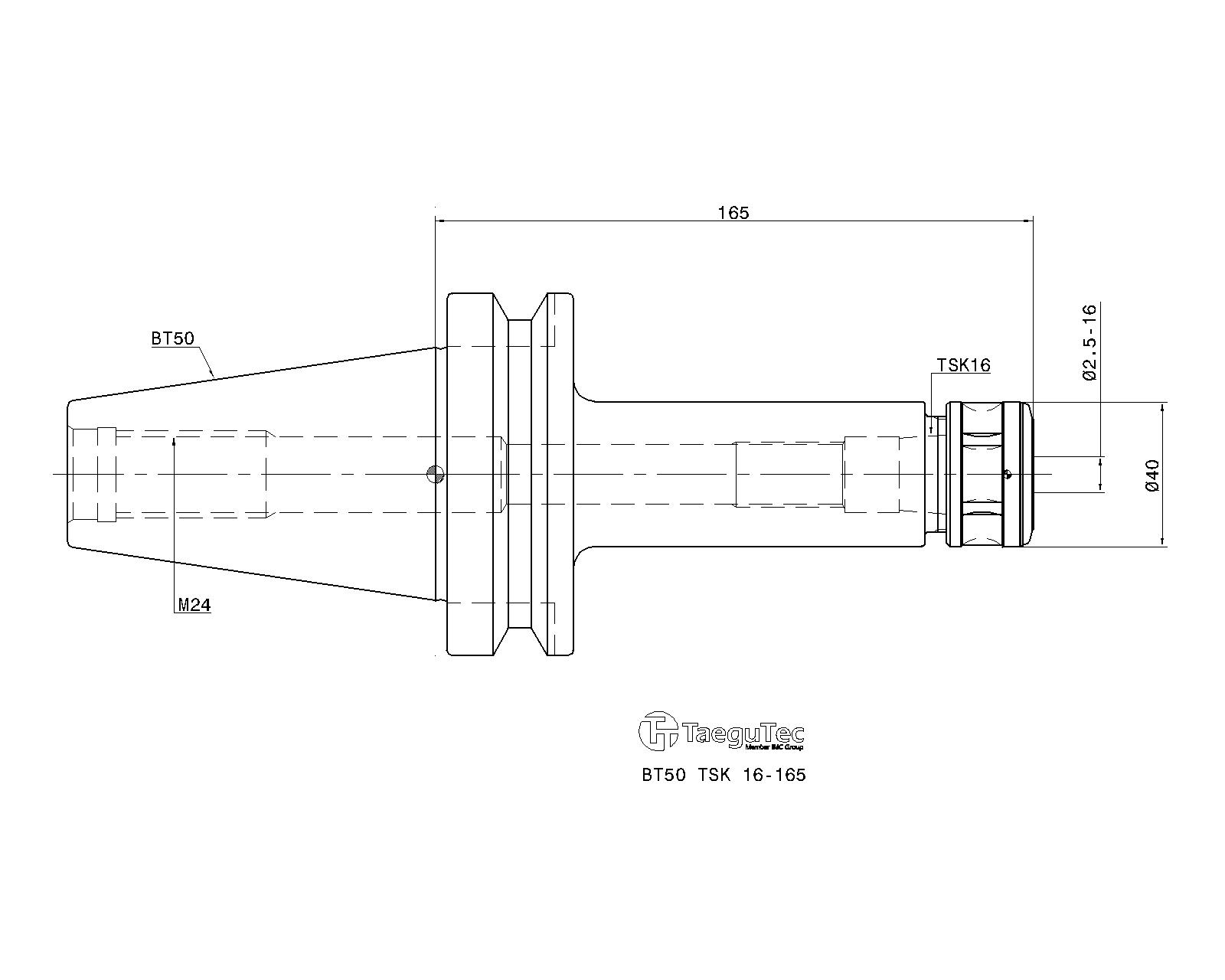

Item Designation: BT50 TSK 16-165
S1 SS CSI DCONNWS DCONXWS BD LPR nut spanner CRKS ClssID LTA GICATGIREMgiic
40.00~50 16 2.5016.0040.00165.00TSKN 16 TSKS 16 M24 71EAD3871D313 ~165.00~4655114 Balance to G6.3 at 20,000RPM 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4655114 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=0&stplFolder=0&p21=4655114&cat=4655114&itemDesc=BT50 TSK 16-165"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4655114', 'BT50 TSK 16-165' , 'DXF' , '4655114 - BT50 TSK 16-165');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4655114&itemDesc=BT50 TSK 16-165"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Balance to G6.3 at 20,000RPM
Items Per Package : 1
Add B for coolant through flange
3D Representation
2D Representation
