Family Designation: COLLET TSK High accuracy slim collets for TSK chucks with runout up to 5 micron at 2.5xD & finishing


Item Designation: TSK 25-20.0

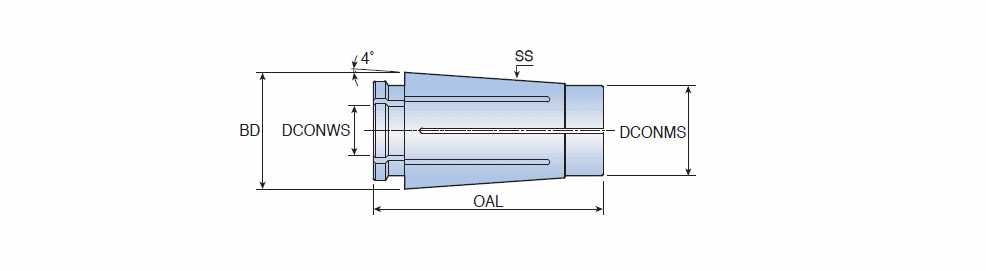

SS DCONNWS DCONXWS BD DCONMS OAL Shank ClssID LTA GICATGIREMgiic
25 19.5020.0035.7028.8057.00C ~726F59BDC3B08 ~10.50~4655178 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4655178 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4655178&cat=4655178&itemDesc=TSK 25-20.0"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4655178', 'TSK 25-20.0' , 'DXF' , '4655178 - TSK 25-20.0');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4655178&itemDesc=TSK 25-20.0"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

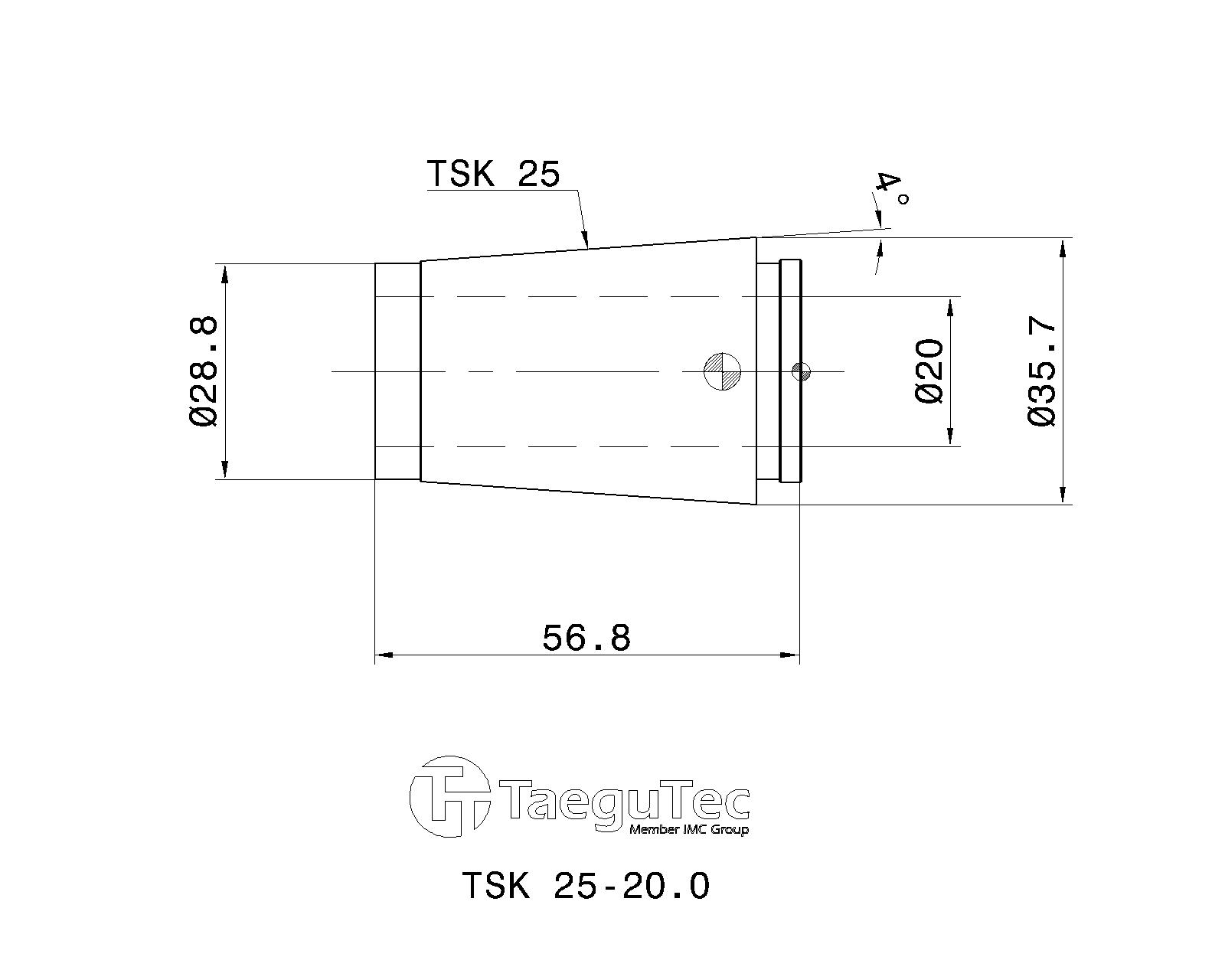

2D Representation
