Family Designation: C-EM Weldon DIN 6359/DIN 6359 form B end mill holders with C-ADAPTER (ISO 26623-1) taper shanks


 IT_N5  IT_SURFACE HARDNESS 58~60HRC  IT_RUN-OUT A0.005
Item Designation: C5 EM12X60
DCONMS DCONWS BD LPR LB CRKS S1 L2 Shank ClssID LTA CCTWS CCFWS GICATGIREMgiic
50 12.0042.0060.0040.0M16 0.830.00~60.00~W ~71EAD3871D313 ~60.00~ZYL ~10 ~4655498 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4655498 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4655498&cat=4655498&itemDesc=C5 EM12X60"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4655498', 'C5 EM12X60' , 'DXF' , '4655498 - C5 EM12X60');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4655498&itemDesc=C5 EM12X60"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

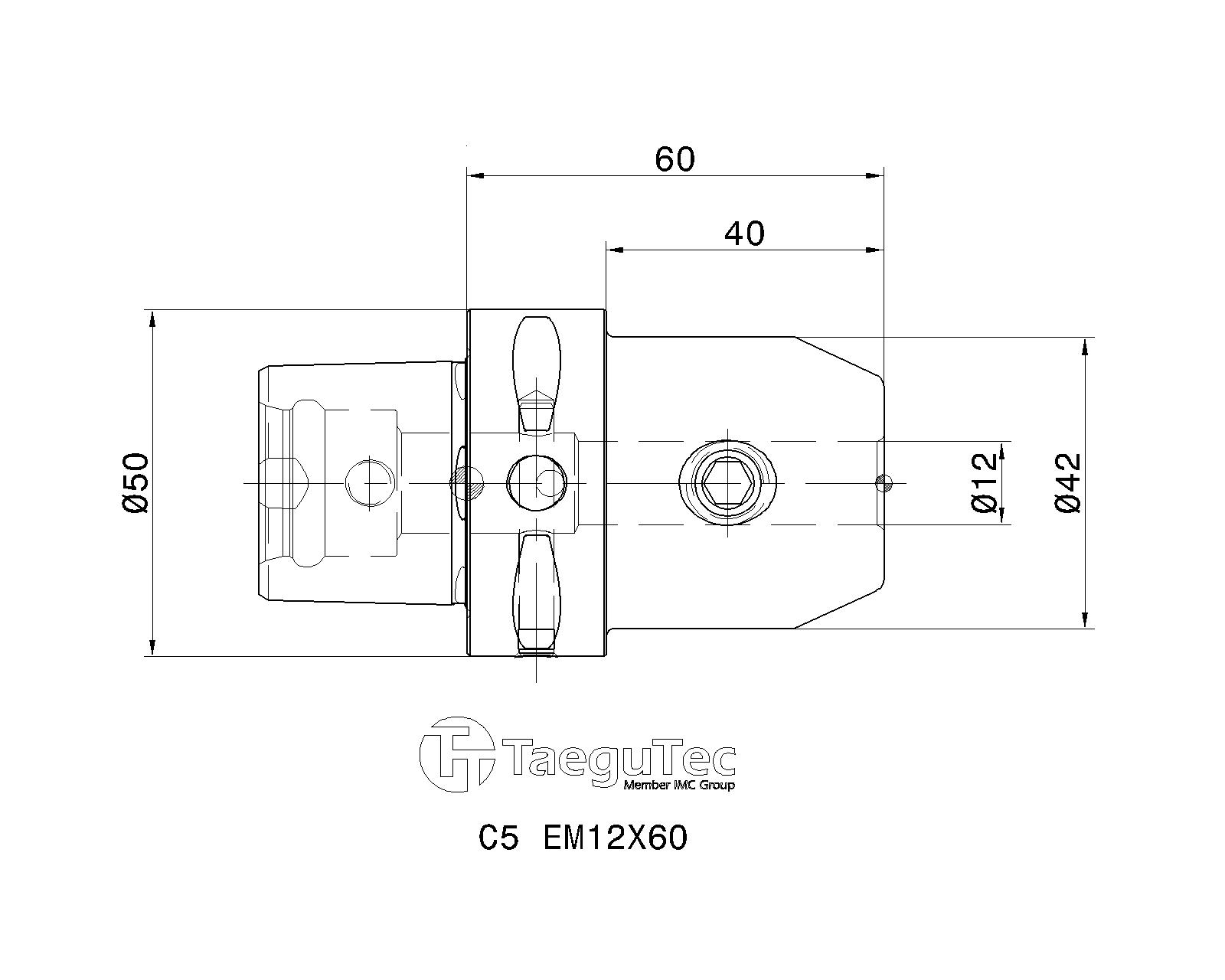

2D Representation
