TaeguTec Cutting Tools - Metal Working Tools - ANHX 11/16 R-AL : 5612114

Family Designation: ANHX 11/16 R-AL

Double sided ground inserts with 4 helical positive cutting edges and polished tops for aluminum machining of 90° shoulders

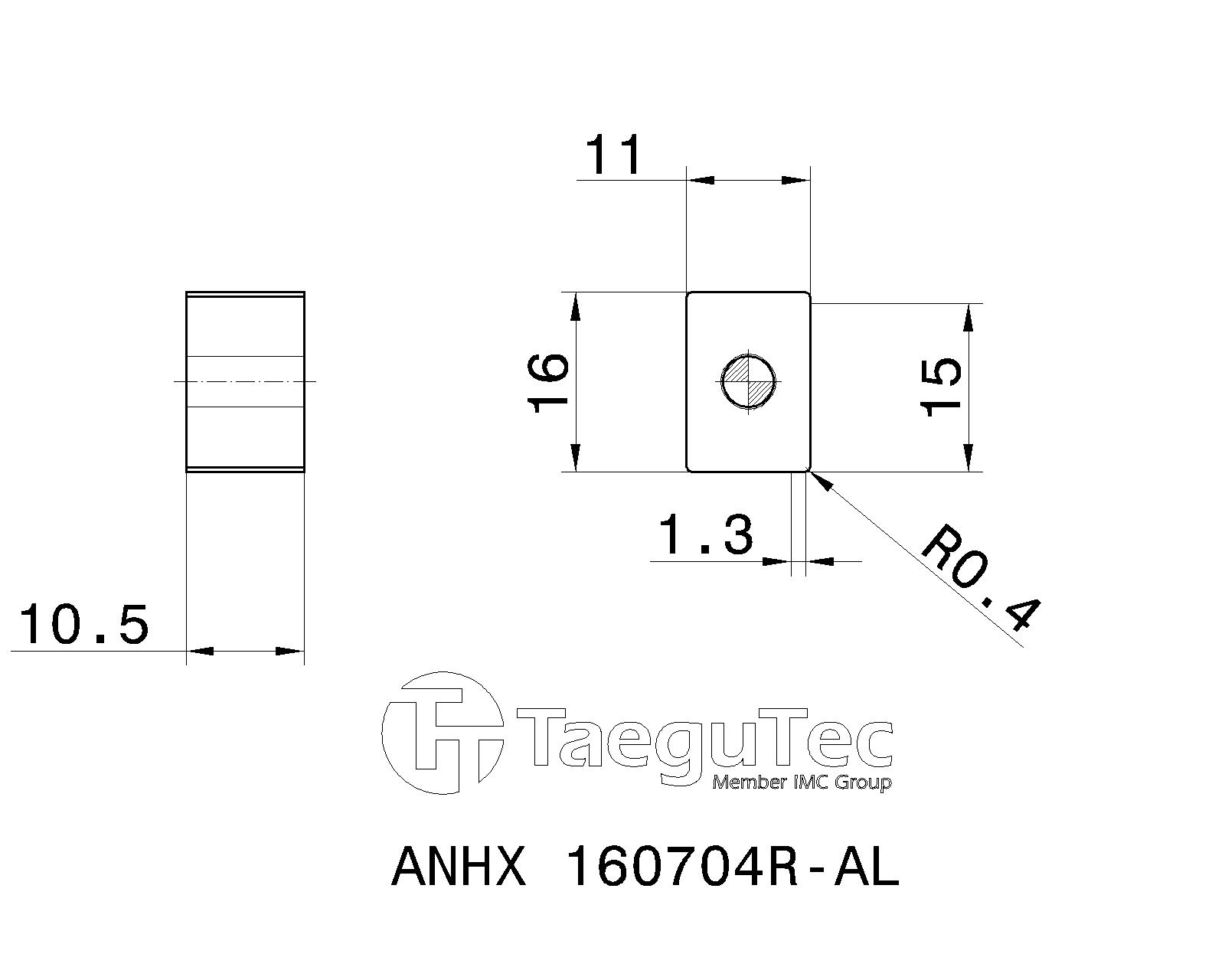

Item Designation: ANHX 160704R-AL

L	W1	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	CB	GRDMFG	GICAT	GIREM	giic
16.00	11.00	10.90	1.30	0.40	15.00	16.00~	4.50	12.00	0.400	0.100	M4 ~	4~	C2M-AN16 ~	A ~	71DD68D91938A ~	AL ~	K10 ~	5612114		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	Add to favorites	Properties File	P21
5612114	K10			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=5612114&cat=5612114&itemDesc=ANHX 160704R-AL"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=5612114&itemDesc=ANHX 160704R-AL"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
