Family Designation: ANHX 11/16 R-AL Double sided ground inserts with 4 helical positive cutting edges and polished tops for aluminum machining of 90° shoulders


Item Designation: ANHX 160708R-AL
L W1 S BS RE APMX S1 ap
(min)
ap
(max)
fz
(max)
fz
(min)
SF CEDC Insert SC ClssID CB GRDMFG GICATGIREMgiic
16.0011.0010.701.300.8015.0016.00~4.5012.000.4000.100M4 ~4~C2M-AN16 ~A ~71DD68D91938A ~AL ~K10 ~5612869 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCAdd to favoritesProperties FileP21
5612869 K101<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=5612869&cat=5612869&itemDesc=ANHX 160708R-AL"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=5612869&itemDesc=ANHX 160708R-AL"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 10
3D Representation

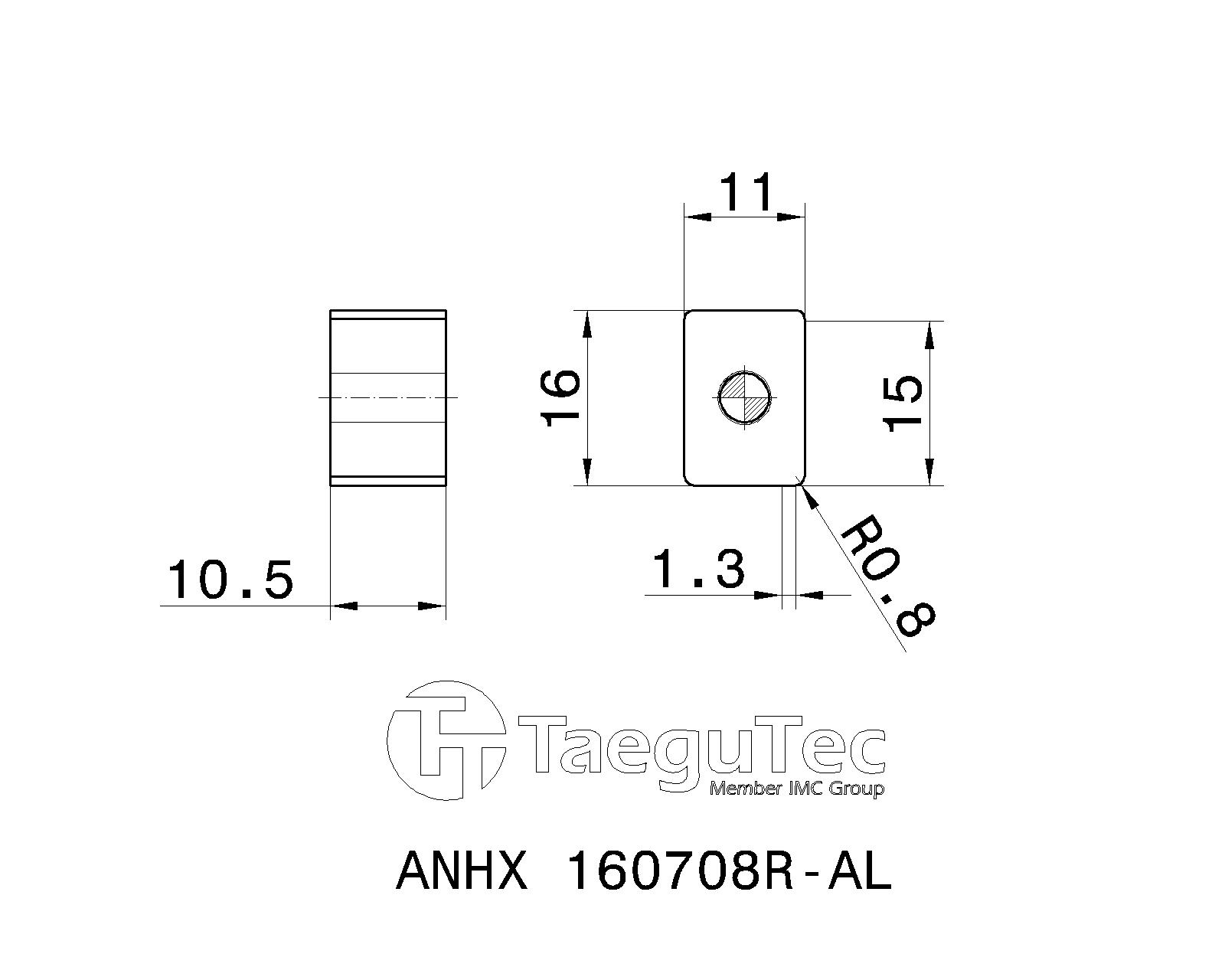

2D Representation
