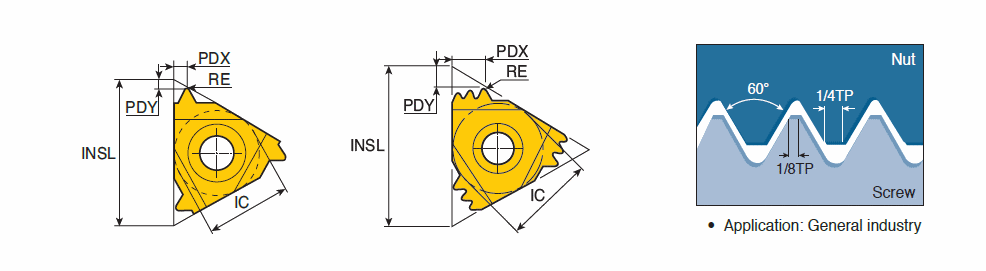

Family Designation: ER/L-UN External american UN full profile (UN, UNC, UNF, UNEF) threading inserts
External right-hand shown

External right-hand shown

Item Designation: 11ER 32 UN
IC TPI INSL RE PDY PDX CICT SC ClssID HAND GICATGIREMgiic
6.3532.011.000.090.60.61T ~71DDA089C8D1E ~R ~5922665 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCAdd to favoritesProperties FileP21
5922665 TT90303<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=0&stpFolder=STP&stplFolder=0&p21=5922665&cat=5922665&itemDesc=11ER 32 UN"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=5922665&itemDesc=11ER 32 UN"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 5
Tolerance: Class 2A
3D Representation
2D Representation
Not Available 2D Required
