TaeguTec Cutting Tools - Metal Working Tools - TCD-3XD (CYLINDRICAL) : 6102134 - TCD 075-079-12S0-3D
× Login Information

Family Designation: TCD-3XD (CYLINDRICAL) DRILLRUSH Head changeable drills with cylindrical shank (3xD) and coolant holes
Drilling depth: 3xdiameter

Drilling depth: 3xdiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: TCD 075-079-12S0-3D
Tool sty DCN  DCX  DCONMS LU L1 LPR LS OAL SSC  PL  Machines Zeff Min Tol Max Tol Shank ClssID MIID CICT DC L/D CCFMS CCTMS LTA GICATGIREMgiic
HEAD TYPE ~7.507.9012.0024.023.0~37.145.082.107 1.10Y ~ ~2~0~0~C ~71E01A0608FE4 ~TCD-075-P 1~7.50~3.00~01 ~ZYL ~36.00~6102134 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6102134 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6102134&cat=6102134&itemDesc=TCD 075-079-12S0-3D"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6102134', 'TCD 075-079-12S0-3D' , 'DXF' , '6102134 - TCD 075-079-12S0-3D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6102134&itemDesc=TCD 075-079-12S0-3D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

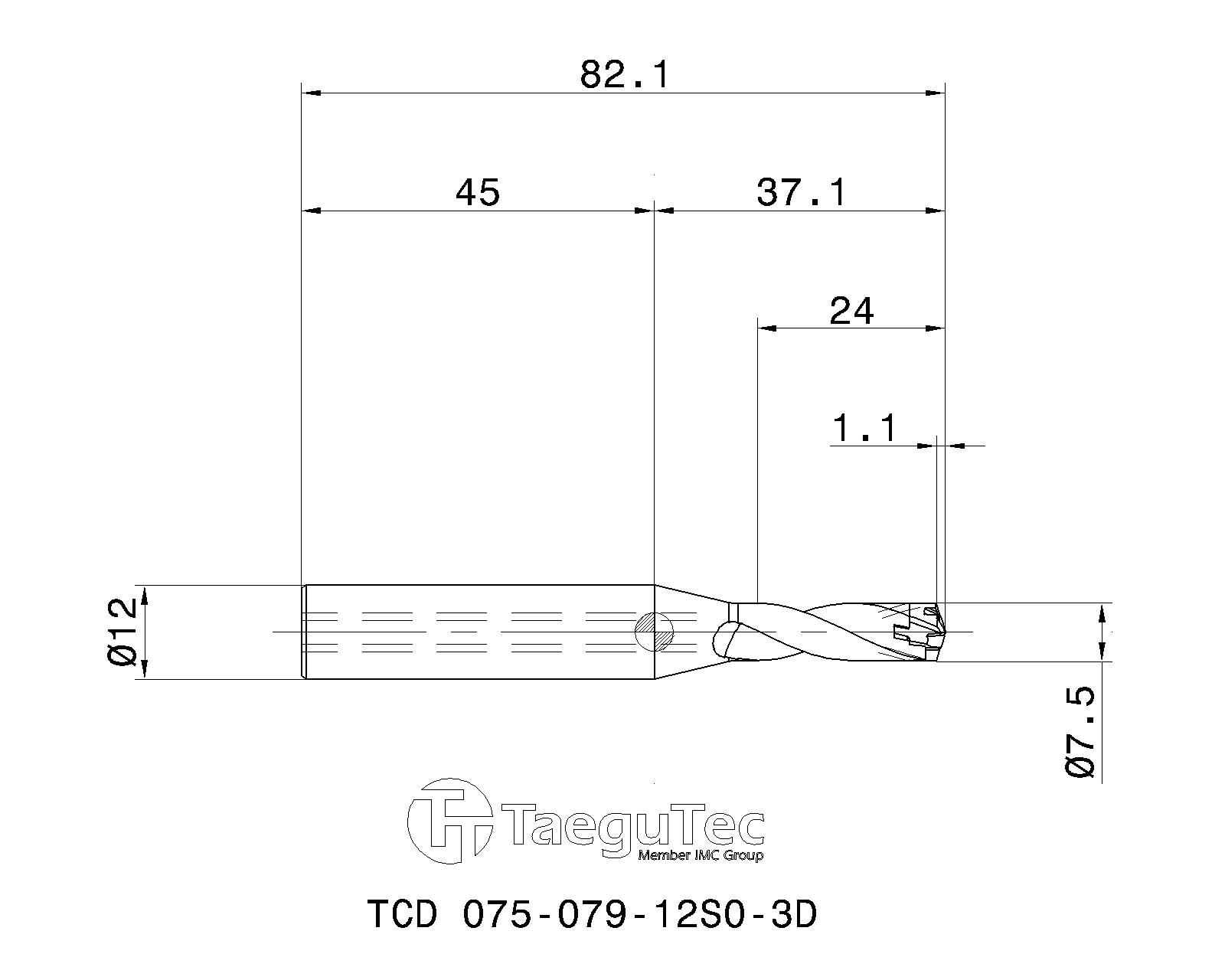

2D Representation
  Spare Parts
4354891K TCD D060-D099Clamping key
