Family Designation: 2F 16/20/25/30/32 Ball nose end mills for rough or semi-finish profiling with one insert 2FB of both internal & external pockets in diameters of 16/20/25/30/32 mm


Item Designation: 2F 25-35-32-L250-P

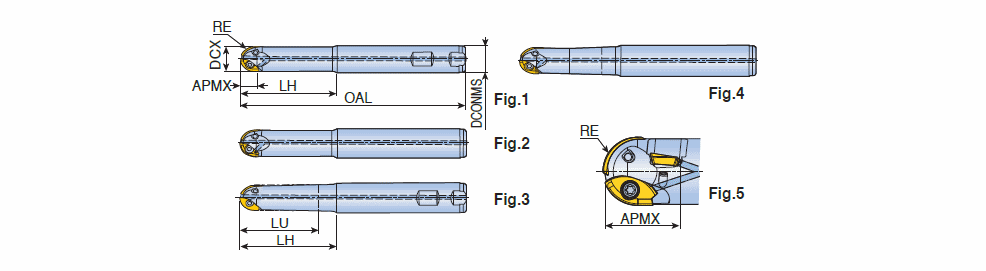

Tool sty DCX  CICT RE DCONMS OAL LH LU APMX  Fig. S1 RMPX Zout KAPR HAND Arbor  PD Insert Shank ClssID MIID MIID_2 CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~25.002 12.5032.00250.00110.00-35.10O 525.00~1.80~1.202~2.0~ ~ ~ ~ ~C 71E01A05D27A8 ~2FB250-M APKT 09T3 PER-EM ZYL ~01 ~190.00~6105378 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6105378 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6105378&cat=6105378&itemDesc=2F 25-35-32-L250-P"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6105378', '2F 25-35-32-L250-P' , 'DXF' , '6105378 - 2F 25-35-32-L250-P');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6105378&itemDesc=2F 25-35-32-L250-P"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

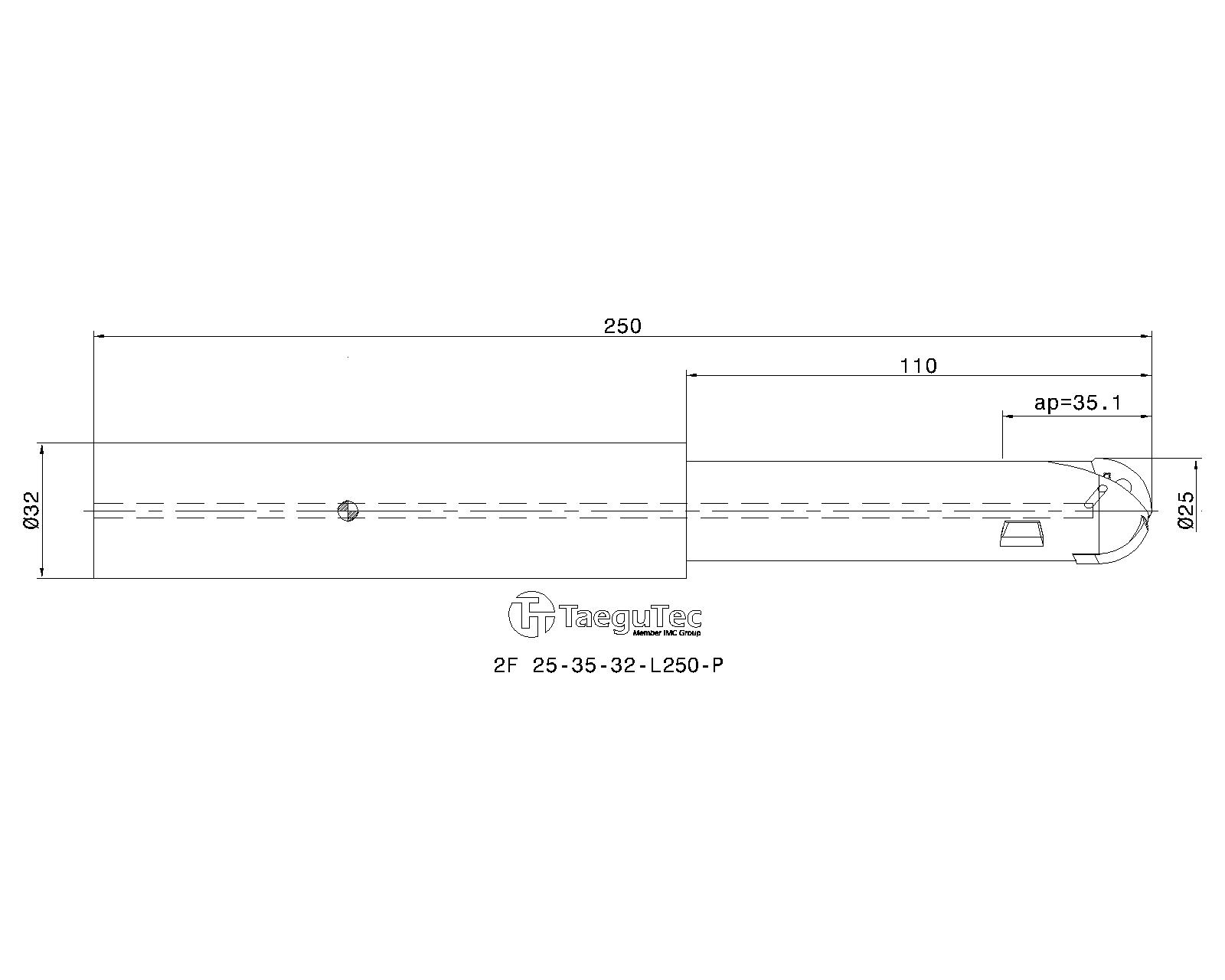

2D Representation
  Spare Parts
4351578TS 25055I/HGScrew
4351684TS 35085I/HG(M3.5X8.75MM)Screw
4350869TD 15 (T-15/51)TD wrench
4351180TD 8(T-8/51)TD wrench
