Family Designation: TSE 2...M

Solid carbide end mills with flat type & medium & 2 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels

EM FLUTES_2

EM HELIX ANGLE_30

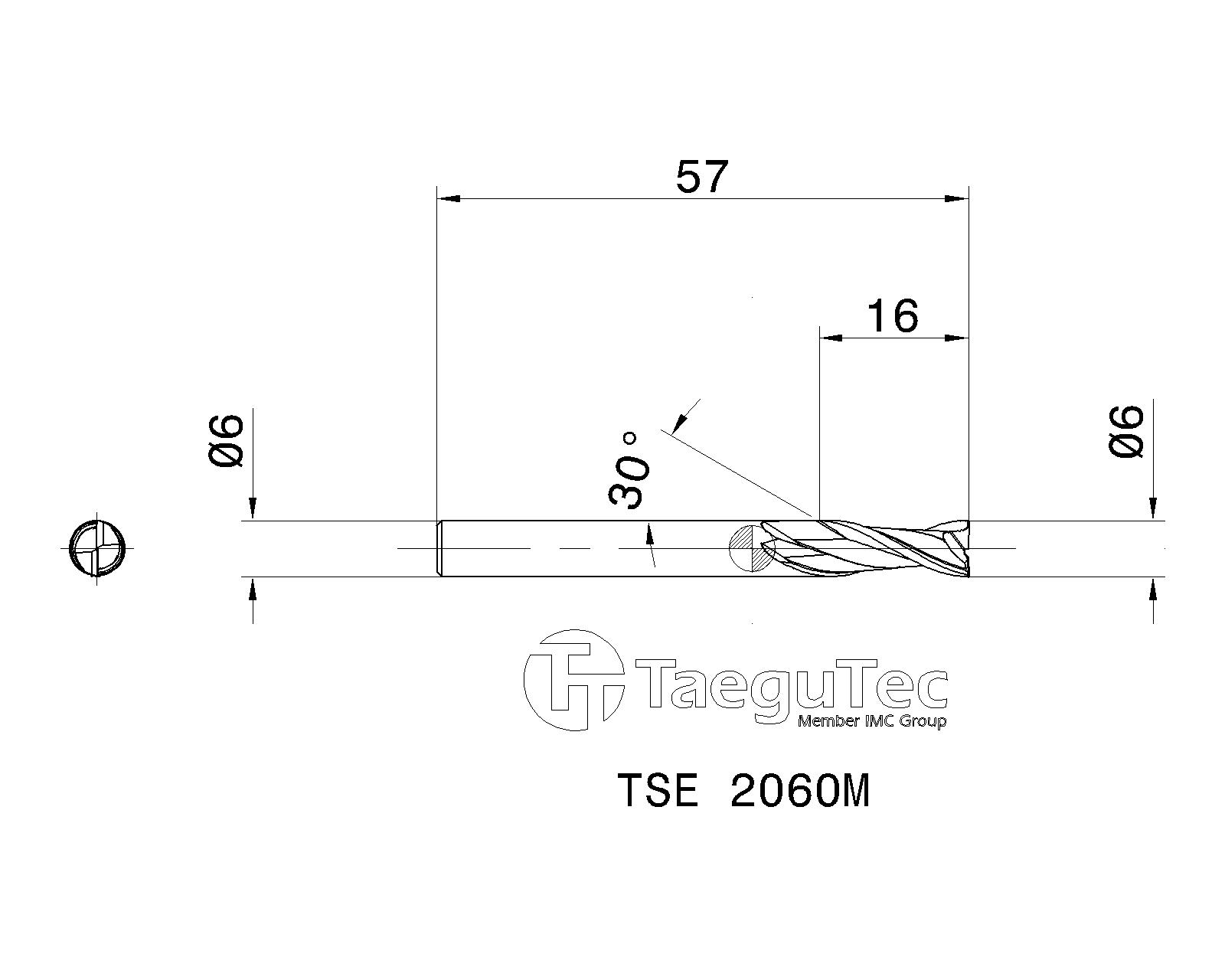

Item Designation: TSE 2060M

Tool sty	DC	OAL	APMX	DCONMS	NOF	FHA	Shank	RMPX	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	6.00	57.00	16.00	6.00	2~	30.0~	C ~	5.00~	0.020	0.060	71E01A05D27A8 ~	ZYL ~	01 ~	23.20~	6112880		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6112879	TT5515			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6112879&cat=6112879&itemDesc=TSE 2060M"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6112879', 'TSE 2060M' , 'DXF' , '6112879 - TSE 2060M');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6112879&itemDesc=TSE 2060M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6112880	TT5525			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6112880&cat=6112880&itemDesc=TSE 2060M"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6112880', 'TSE 2060M' , 'DXF' , '6112880 - TSE 2060M');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6112880&itemDesc=TSE 2060M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
