Home Page > Milling & Solid End mills > Solid Carbide End Mills > TSE 2...M > TSE 2070M

Milling & Solid End mills
Main Application

Solid Carbide End Mills
Sub Application

Related Holder

Family Designation: TSE 2...M

Solid carbide end mills with flat type & medium & 2 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels

EM FLUTES_2

EM HELIX ANGLE_30

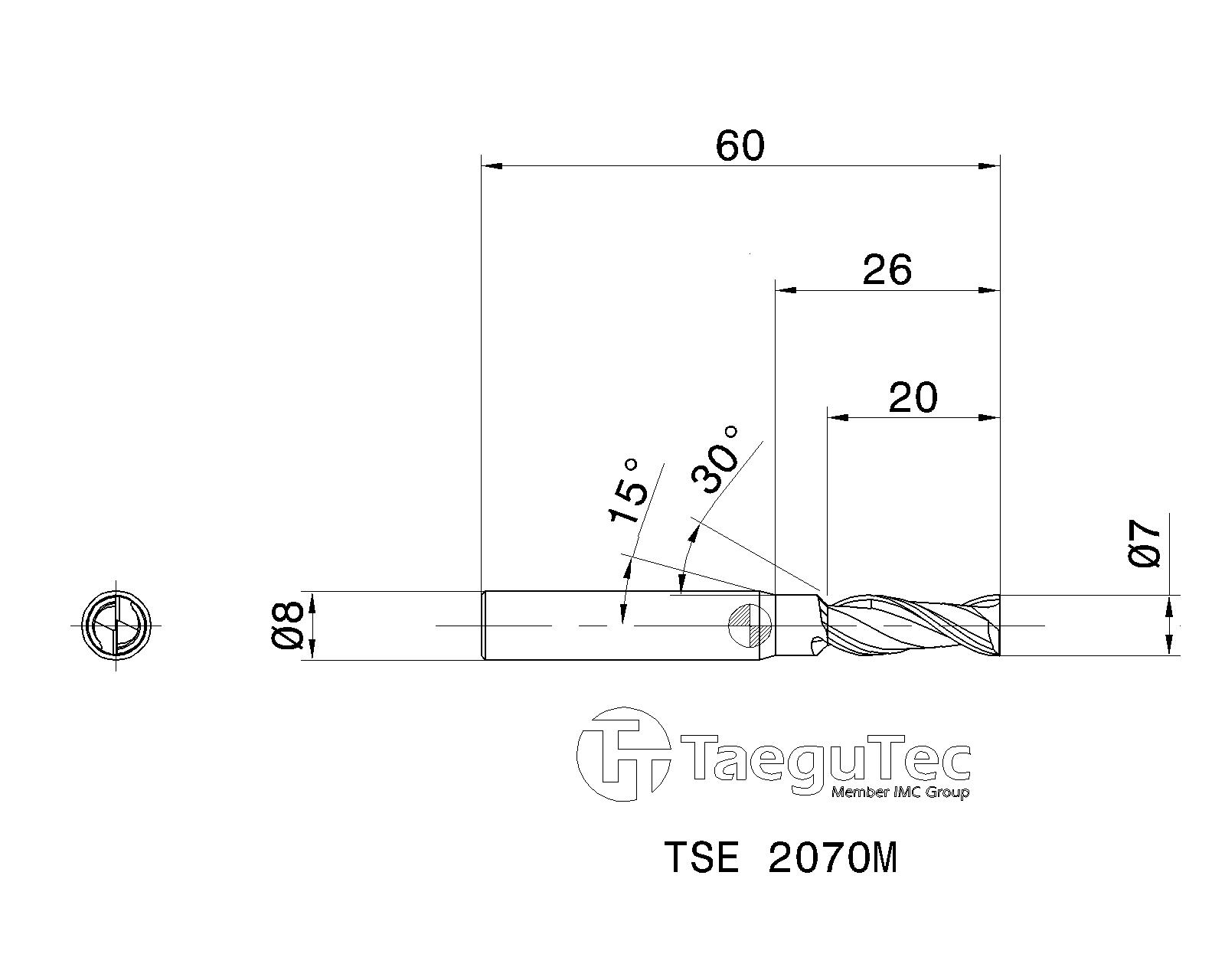

Item Designation: TSE 2070M

Tool sty	DC	OAL	APMX	DCONMS	NOF	FHA	Shank	RMPX	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	7.00	60.00	20.00	8.00	2~	30.0~	C ~	5.00~	0.030	0.070	71E01A05D27A8 ~	ZYL ~	01 ~	28.90~	6112885		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6112884	TT5515			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6112884&cat=6112884&itemDesc=TSE 2070M"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6112884', 'TSE 2070M' , 'DXF' , '6112884 - TSE 2070M');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6112884&itemDesc=TSE 2070M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6112885	TT5525			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6112885&cat=6112885&itemDesc=TSE 2070M"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6112885', 'TSE 2070M' , 'DXF' , '6112885 - TSE 2070M');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6112885&itemDesc=TSE 2070M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
