Home Page > Milling & Solid End mills > Step down machining > TSE 4...M > TSE 4140M-14

Milling & Solid End mills
Main Application

Step down machining
Sub Application

Related Holder

Family Designation: TSE 4...M

Solid carbide end mills with flat type & medium & 4 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels

EM FLUTES_4

EM HELIX ANGLE_30

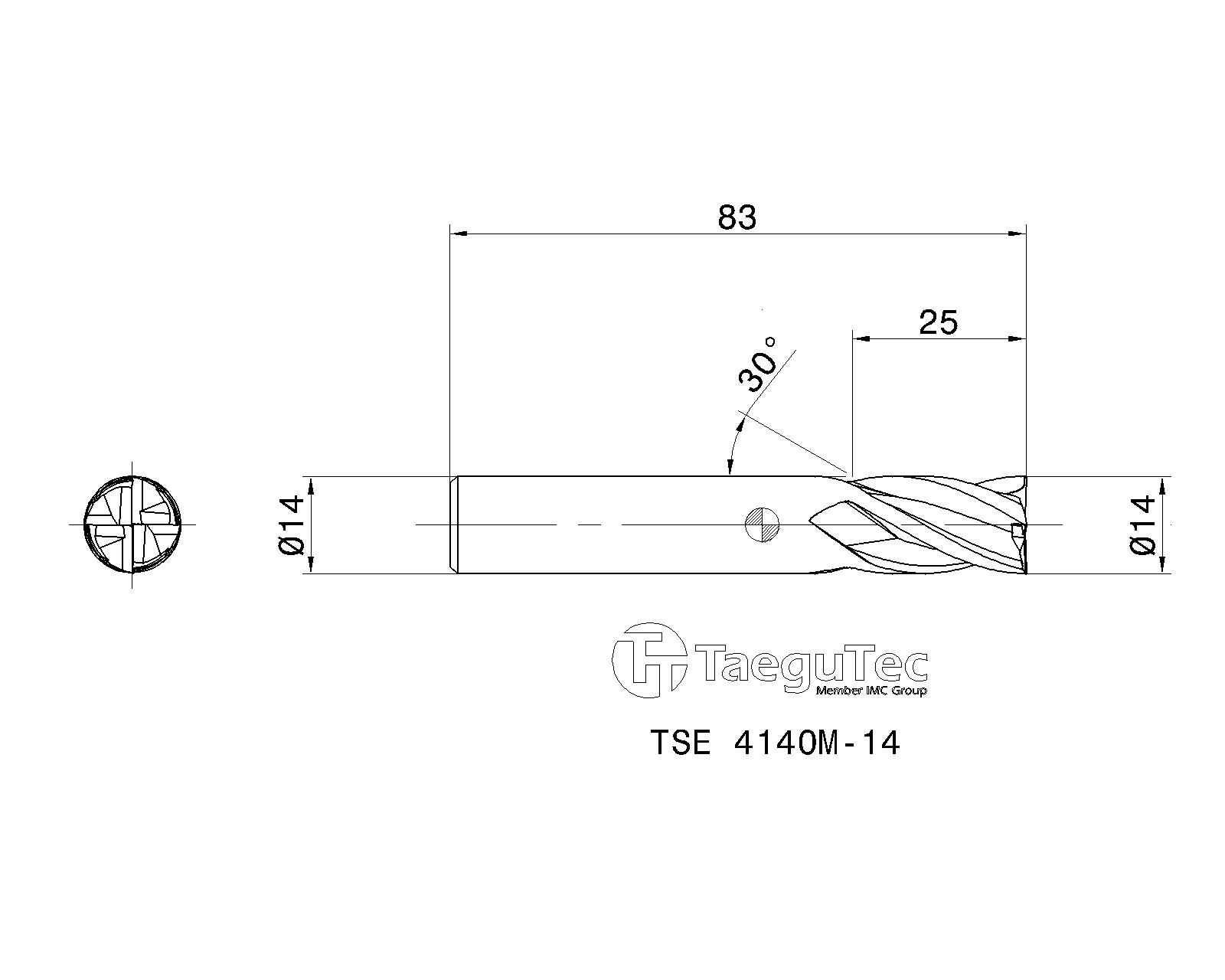

Item Designation: TSE 4140M-14

Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	fz (min)	fz (max)	RMPX	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	14.00	83.00	25.00	14.00	30.0~	C ~	0.030	0.136	5.00~	4~	71E01A05D27A8 ~	ZYL ~	01 ~	38.00~	6112958		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6112957	TT5515			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6112957&cat=6112957&itemDesc=TSE 4140M-14"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6112957', 'TSE 4140M-14' , 'DXF' , '6112957 - TSE 4140M-14');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6112957&itemDesc=TSE 4140M-14"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6112958	TT5525			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6112958&cat=6112958&itemDesc=TSE 4140M-14"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6112958', 'TSE 4140M-14' , 'DXF' , '6112958 - TSE 4140M-14');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6112958&itemDesc=TSE 4140M-14"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
