Home Page > Milling & Solid End mills > Drill Mill > HES 4...XLT > HES 4040XLT(20X70)

Milling & Solid End mills
Main Application

Drill Mill
Sub Application

Related Holder

Family Designation: HES 4...XLT

Solid carbide end mills with extra long cutting length & 4 flute for general purpose

EM FLUTES_4

EM HELIX ANGLE_30

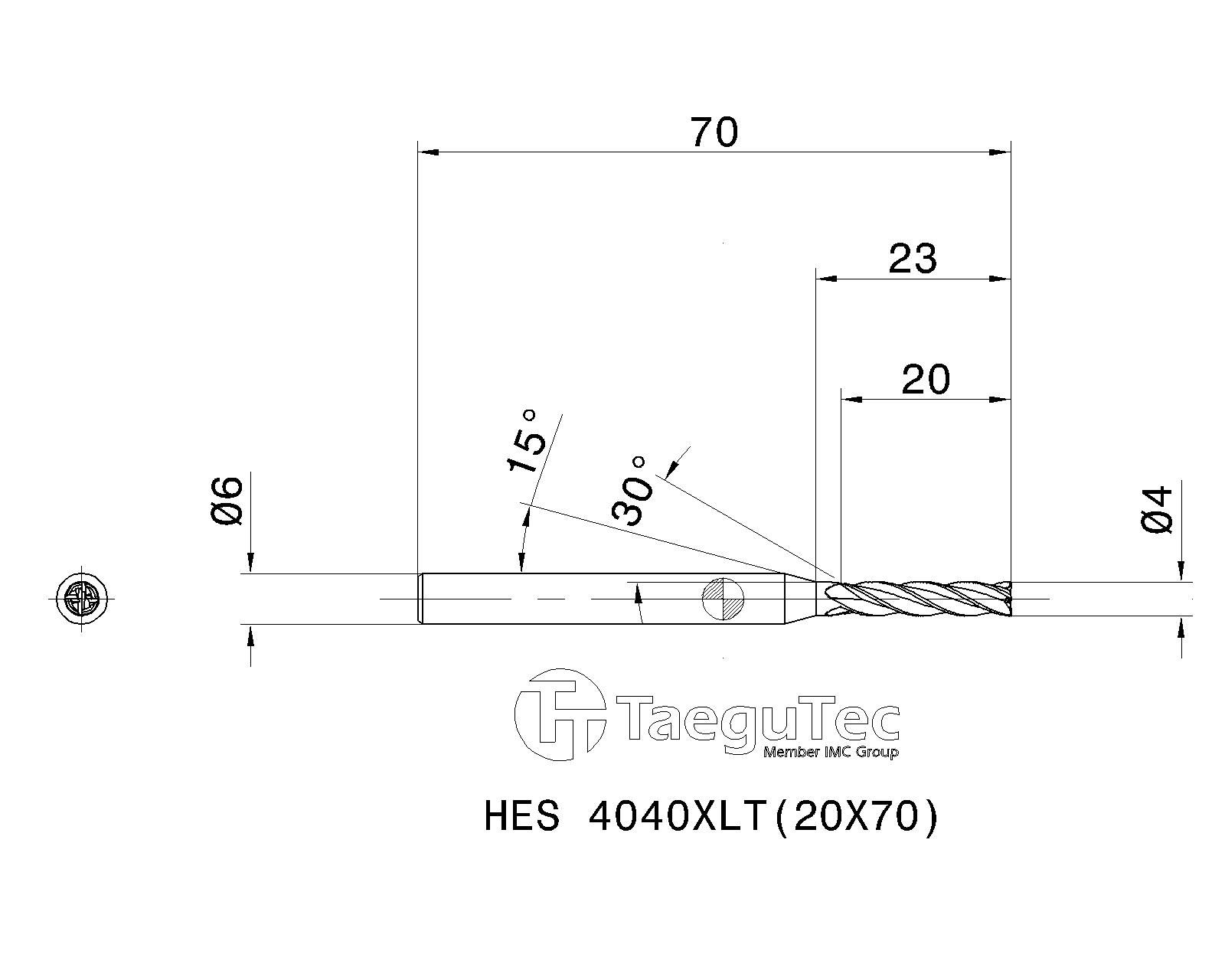

Item Designation: HES 4040XLT(20X70)

Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	4.00	70.00	20.00	6.00	30.0~	C ~	5.00~	0.020	0.050	4~	71E01A05D27A8 ~	ZYL ~	01 ~	34.00~	6113021		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6113020	TT5515			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113020&cat=6113020&itemDesc=HES 4040XLT(20X70)"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6113020', 'HES 4040XLT(20X70)' , 'DXF' , '6113020 - HES 4040XLT(20X70)');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6113020&itemDesc=HES 4040XLT(20X70)"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6113021	TT5525			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113021&cat=6113021&itemDesc=HES 4040XLT(20X70)"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6113021', 'HES 4040XLT(20X70)' , 'DXF' , '6113021 - HES 4040XLT(20X70)');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6113021&itemDesc=HES 4040XLT(20X70)"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
