Home Page > Milling & Solid End mills > Step down machining > HES 4...LT-R > HES 4080LT-R1.0

Milling & Solid End mills
Main Application

Step down machining
Sub Application

Related Holder

Family Designation: HES 4...LT-R

Solid carbide end mills of corner R type with long & 4 flute for general purpose

EM FLUTES_4

EM HELIX ANGLE_30

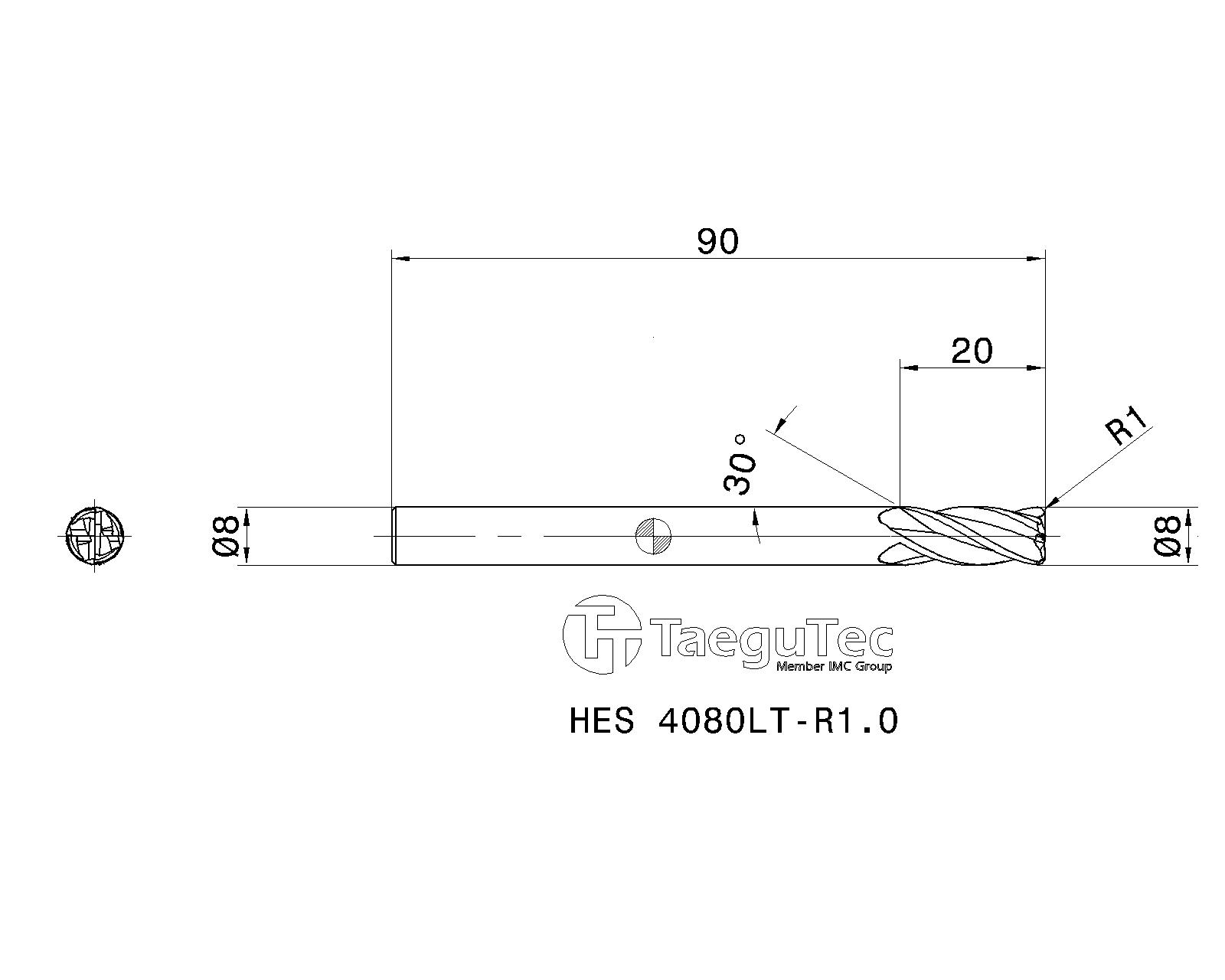

Item Designation: HES 4080LT-R1.0

Tool sty	DC	RE	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	8.00	1.00	90.00	20.00	8.00	30.0~	C ~	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6113251		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6113250	TT5515			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113250&cat=6113250&itemDesc=HES 4080LT-R1.0"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6113250', 'HES 4080LT-R1.0' , 'DXF' , '6113250 - HES 4080LT-R1.0');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6113250&itemDesc=HES 4080LT-R1.0"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6113251	TT5525			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113251&cat=6113251&itemDesc=HES 4080LT-R1.0"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6113251', 'HES 4080LT-R1.0' , 'DXF' , '6113251 - HES 4080LT-R1.0');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6113251&itemDesc=HES 4080LT-R1.0"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
