TaeguTec Cutting Tools - Metal Working Tools - SEH 6...XLT : 6113277 - SEH 6160XLT
× Login Information

Family Designation: SEH 6...XLT 6 Flute solid carbide flat type end mills of extra long length type for finishing


 EM FLUTES_6  EM HELIX ANGLE_45
Item Designation: SEH 6160XLT
Tool sty DC OAL APMX DCONMS FHA Shank RMPX fz
(min) 		fz
(max) 		NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~16.00125.0070.0016.0045.0~C ~5.00~0.0500.1306~71E01A05D27A8 ~ZYL ~01 ~77.00~6113277 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6113277 TT55153<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113277&cat=6113277&itemDesc=SEH 6160XLT"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6113277', 'SEH 6160XLT' , 'DXF' , '6113277 - SEH 6160XLT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6113277&itemDesc=SEH 6160XLT"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

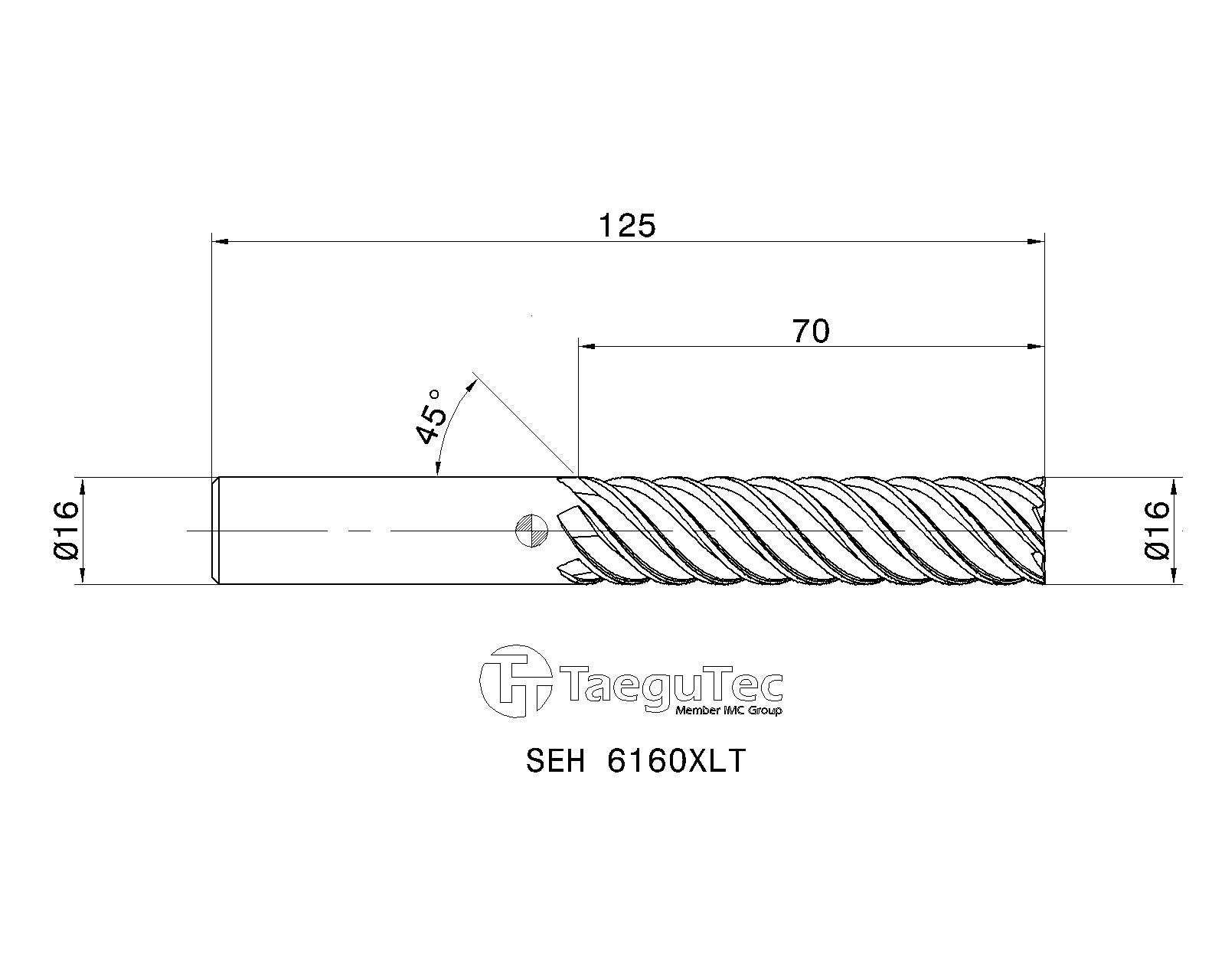

2D Representation
