Family Designation: BES 4...T Solid carbide spherical ball nose end mills with 4 flute for profiling


 EM FLUTES_4  EM HELIX ANGLE_30
Item Designation: BES 4080T
Tool sty DC RE DCONMS DN OAL APMX LH FHA Shank RMPX NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~8.004.008.006.71100.008.2033.030.0~C ~0.00~4~71E01A05D27A8 ~ZYL ~01 ~64.00~6113405 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6113405 TT55153<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113405&cat=6113405&itemDesc=BES 4080T"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6113405', 'BES 4080T' , 'DXF' , '6113405 - BES 4080T');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6113405&itemDesc=BES 4080T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

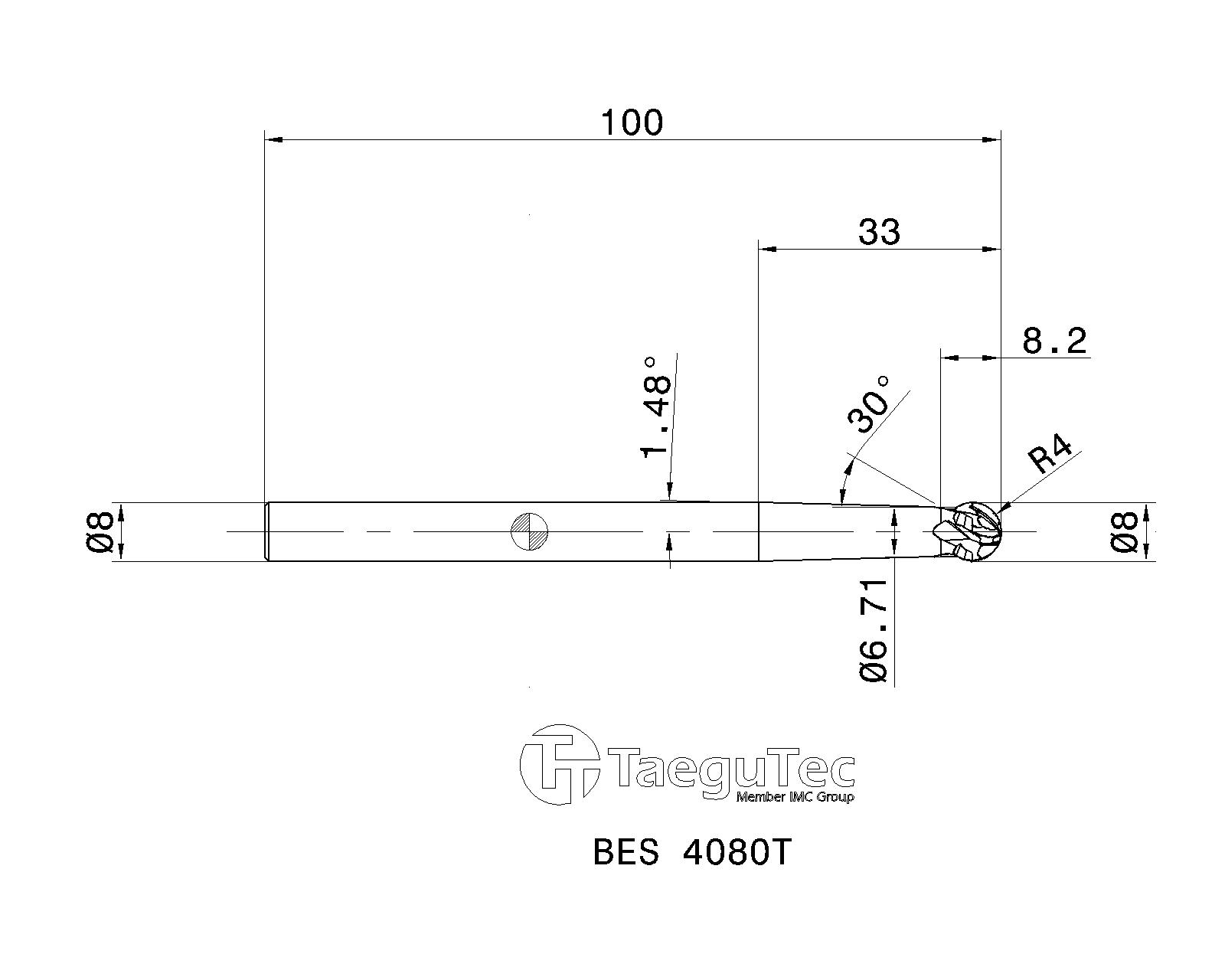

2D Representation
