Family Designation: SED 4...U-C 4 Flute solid carbide end mills for difficult-to-cut materials with chamfer & unequal spaced cutting edges in less vibration and high productivity
 EM FLUTES_4                                        EM HELIX ANGLE_45
Item Designation: SED 4100U-C0.3
Tool sty DC CHW OAL LU APMX DCONMS Type Machine FHA Shank RMPX fz
SOLID TYPE ~10.000.3072.00-25.0010.00 ~ ~45.0~C ~5.00~0.0300.1004~71E01A05D27A8 ~ZYL ~01 ~32.00~6113431 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6113431 TT55153<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113431&cat=6113431&itemDesc=SED 4100U-C0.3"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6113431', 'SED 4100U-C0.3' , 'DXF' , '6113431 - SED 4100U-C0.3');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6113431&itemDesc=SED 4100U-C0.3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

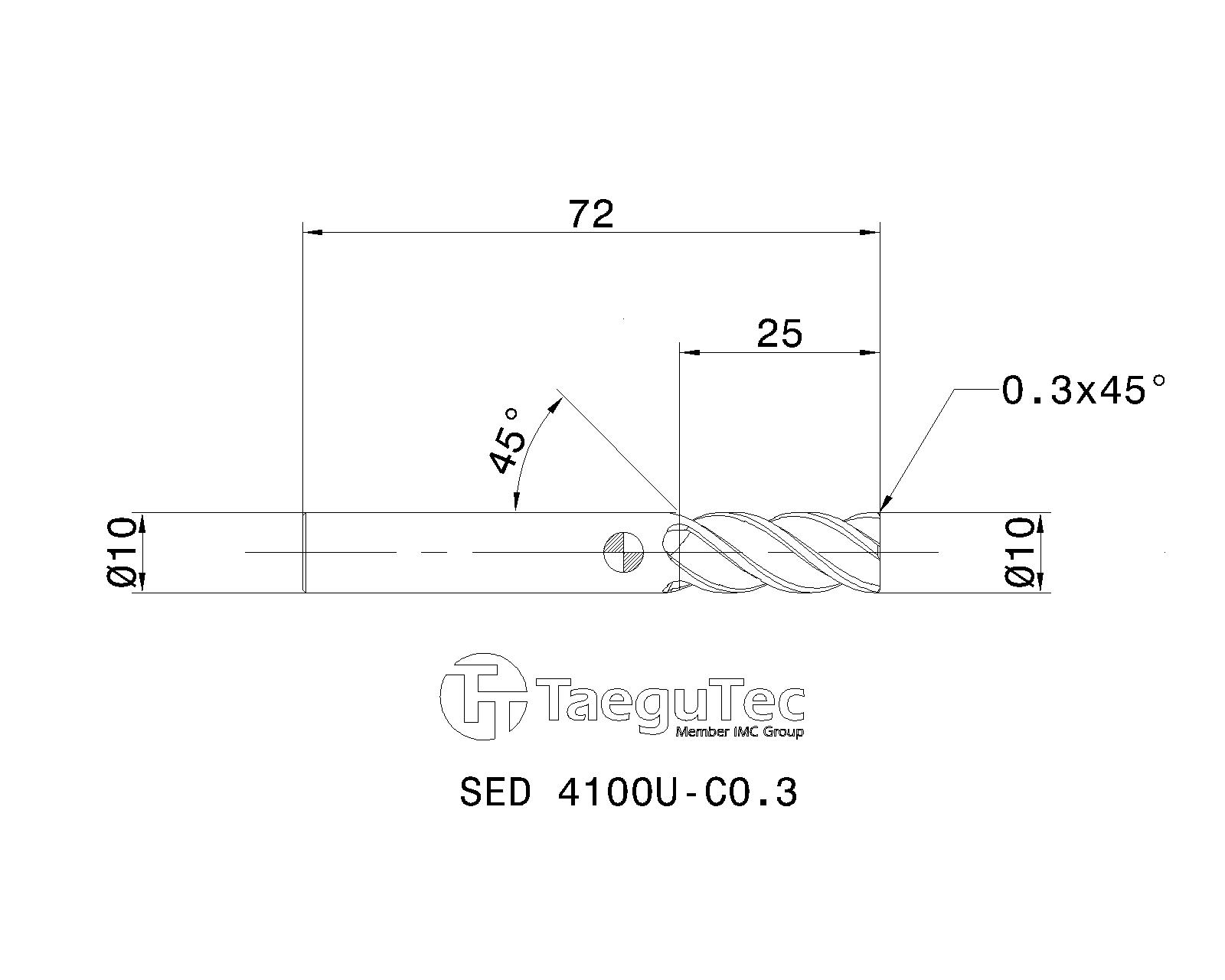

2D Representation
