TaeguTec Cutting Tools - Metal Working Tools - REL ...L : 6113552

Solid carbide roughing end mills with serrated cutting edges & long length type & 3-4 flute & corner chamfer for hardened steels

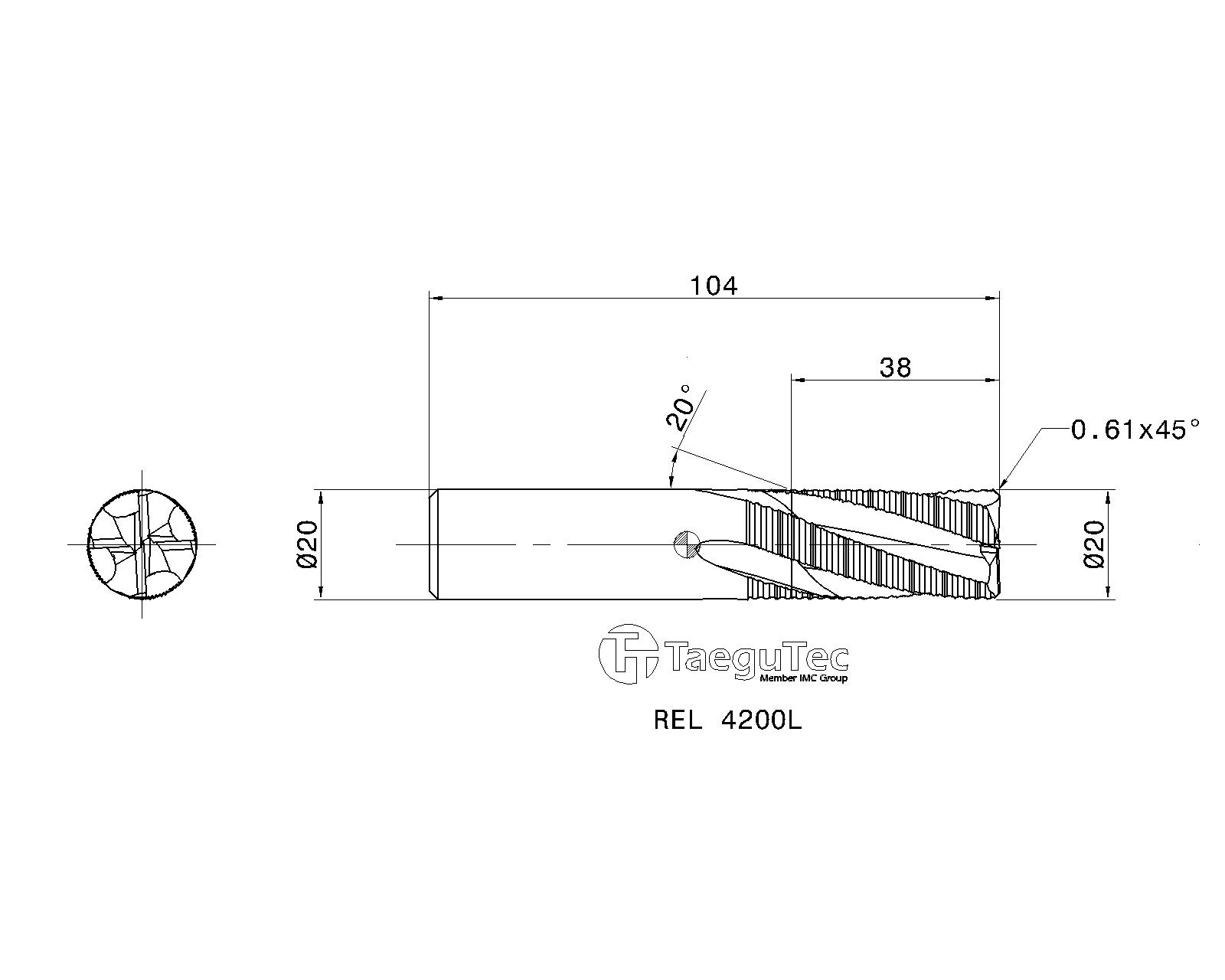

Item Designation: REL 4200L

Tool sty	NOF	DC	CHW	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	C	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	4	20.00	0.61	104.00	38.00	20.00	20.0~	C ~	5.00~	0.050	0.110	0.00~	71E01A05D27A8 ~	ZYL ~	01 ~	57.00~	6113552		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6113552	TT5515			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113552&cat=6113552&itemDesc=REL 4200L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6113552', 'REL 4200L' , 'DXF' , '6113552 - REL 4200L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6113552&itemDesc=REL 4200L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
