Family Designation: REH ...S
|
Solid carbide roughing end mills with serrated cutting edges & short length type & corner chamfer & 4-6 flute for low hardness parts
|
Weldon shank is available on request.
Ordering example:REHW....S)
Weldon shank is available on request.
Ordering example:REHW....S)

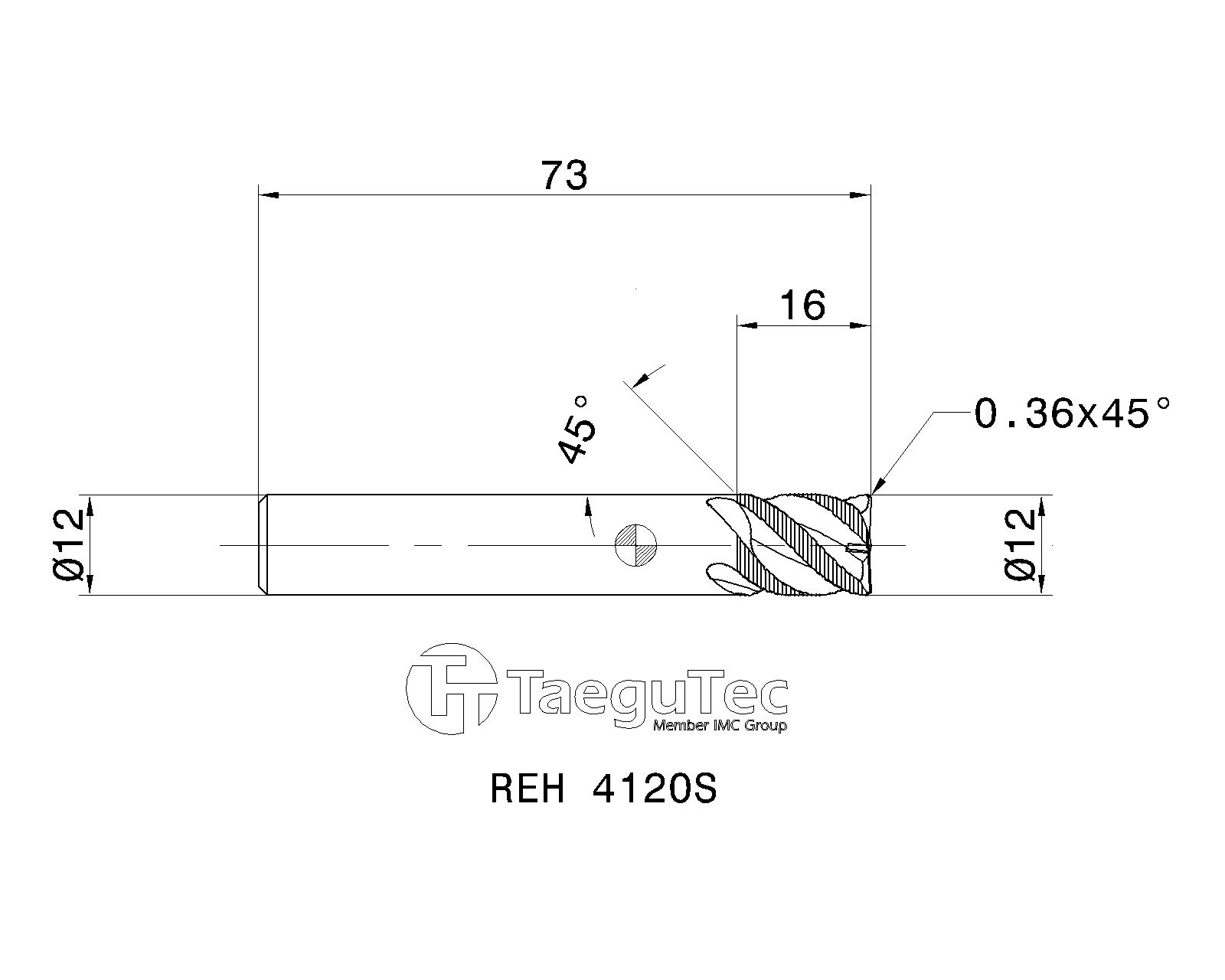

Item Designation: REH 4120S

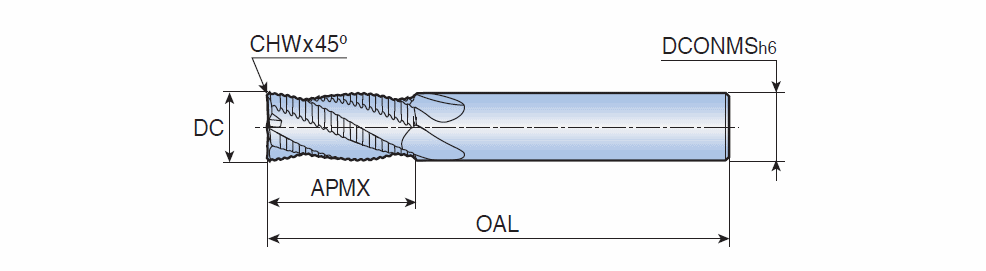

| Tool sty | NOF  | DC | CHW | OAL | APMX | DCONMS | FHA | Shank | RMPX | fz
(min) | fz
(max) | C | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 4 | 12.00 | 0.36 | 73.00 | 16.00 | 12.00 | 45.0~ | C ~ | 5.00~ | 0.060 | 0.200 | 0.00~ | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 28.00~ | 6113570 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6113570 | TT5525 | |  | 3 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113570&cat=6113570&itemDesc=REH 4120S"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6113570', 'REH 4120S' , 'DXF' , '6113570 - REH 4120S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6113570&itemDesc=REH 4120S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
