Family Designation: REH ...M
|
Solid carbide roughing end mills with serrated cutting edges & medium length type & 3-6 flute & corner chamfer for low hardness part
|
Weldon shank is available on request.
Ordering example :REHW....M
Weldon shank is available on request.
Ordering example :REHW....M

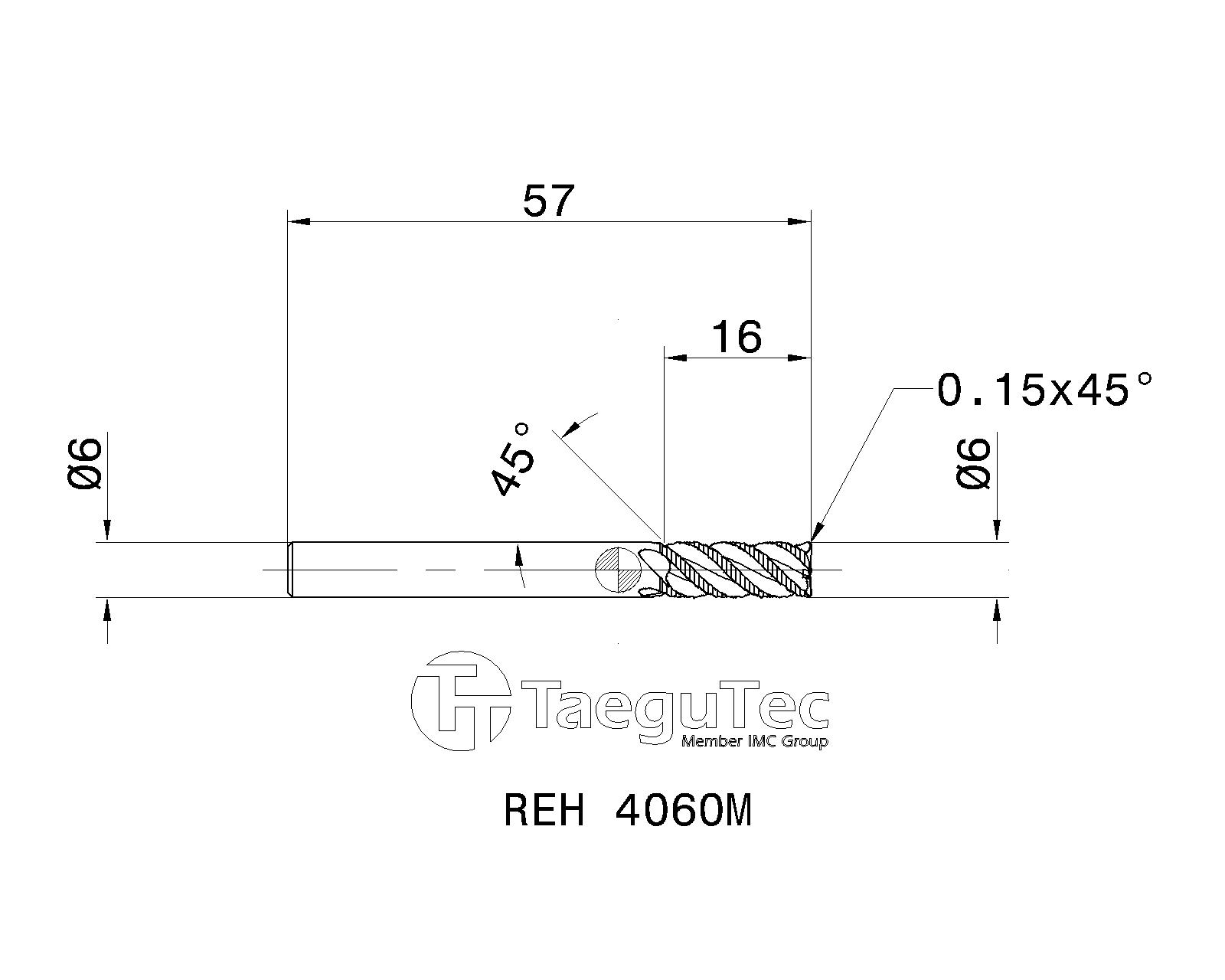

Item Designation: REH 4060M
| Tool sty | NOF  | DC | CHW | OAL | APMX | DCONMS | FHA | Shank | RMPX | fz
(min) | fz
(max) | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 4 | 6.00 | 0.25 | 57.00 | 16.00 | 6.00 | 45.0~ | C ~ | 5.00~ | 0.040 | 0.120 | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 21.00~ | 6113578 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6113578 | TT5525 | |  | 1 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113578&cat=6113578&itemDesc=REH 4060M"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6113578', 'REH 4060M' , 'DXF' , '6113578 - REH 4060M');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6113578&itemDesc=REH 4060M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
