Family Designation: REH ...L
|
Solid carbide roughing end mills with serrated cutting edges & long length type & corner chamfer & 4-6 flute for low hardness parts
|
Weldon shank is available on request.
Ordering example:REHW....L)
Weldon shank is available on request.
Ordering example:REHW....L)

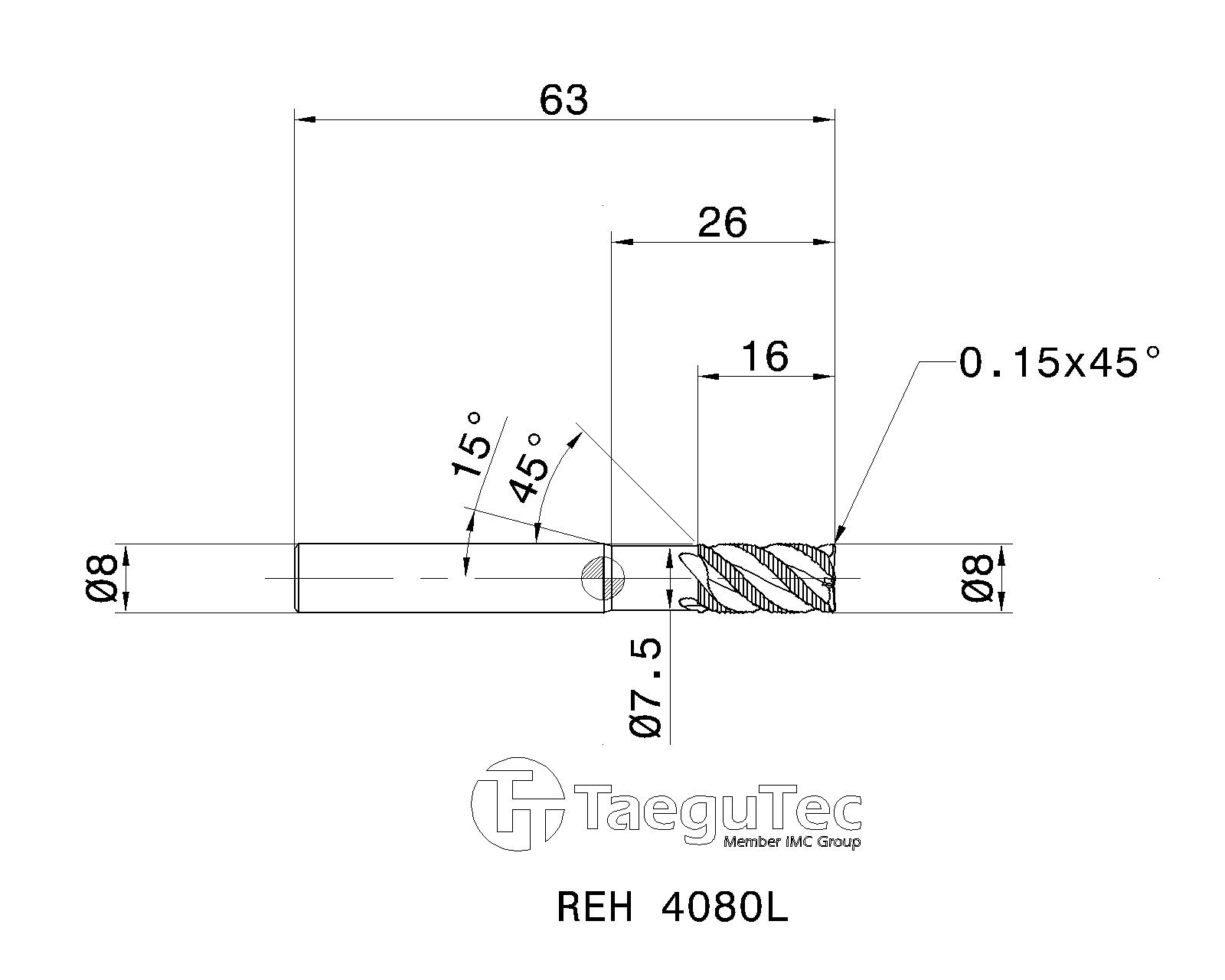

Item Designation: REH 4080L
| Tool sty | NOF  | DC | CHW | OAL | APMX | LU | DN | DCONMS | FHA | Shank | RMPX | fz
(min) | fz
(max) | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 4 | 8.00 | 0.30 | 63.00 | 16.00 | 26.0 | 7.50 | 8.00 | 45.0~ | C ~ | 5.00~ | 0.050 | 0.160 | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 27.00~ | 6113597 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6113597 | TT5525 | |  | 3 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113597&cat=6113597&itemDesc=REH 4080L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6113597', 'REH 4080L' , 'DXF' , '6113597 - REH 4080L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6113597&itemDesc=REH 4080L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
