Family Designation: REH ...L
|
Solid carbide roughing end mills with serrated cutting edges & long length type & corner chamfer & 4-6 flute for low hardness parts
|
Weldon shank is available on request.
Ordering example:REHW....L)
Weldon shank is available on request.
Ordering example:REHW....L)

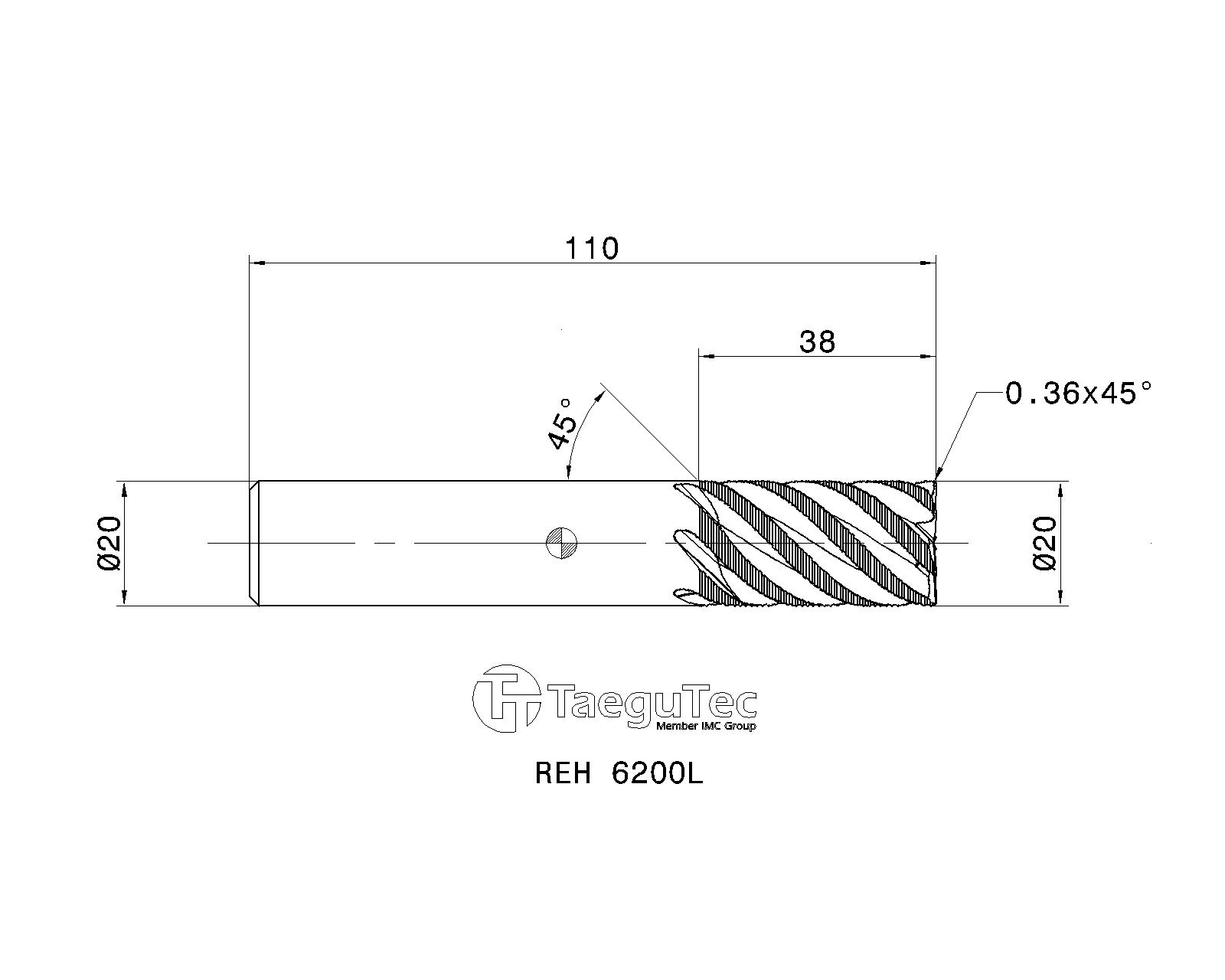

Item Designation: REH 6200L

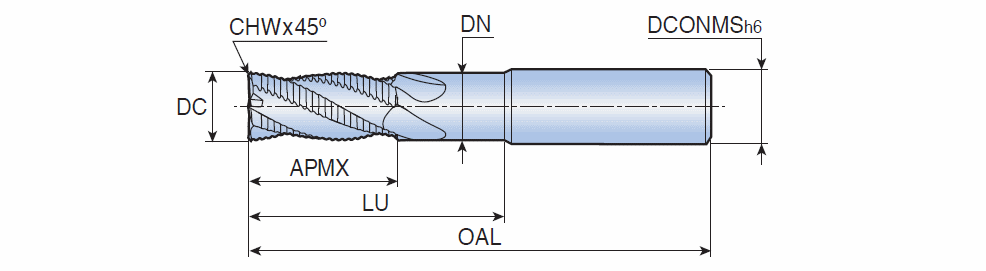

| Tool sty | NOF  | DC | CHW | OAL | APMX | LU | DN | DCONMS | FHA | Shank | RMPX | fz
(min) | fz
(max) | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 6 | 20.00 | 0.36 | 110.00 | 38.00 | 59.0 | 19.20 | 20.00 | 45.0~ | C ~ | 5.00~ | 0.080 | 0.220 | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 61.49~ | 6113601 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6113601 | TT5525 | |  | 3 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6113601&cat=6113601&itemDesc=REH 6200L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6113601', 'REH 6200L' , 'DXF' , '6113601 - REH 6200L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6113601&itemDesc=REH 6200L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
