Family Designation: 2F 16/20/25/30/32 Ball nose end mills for rough or semi-finish profiling with one insert 2FB of both internal & external pockets in diameters of 16/20/25/30/32 mm


Item Designation: 2F 16-20-W20-L120-P
Tool sty DCX  CICT RE DCONMS OAL LH LU APMX  Fig. S1 RMPX Zout KAPR HAND Arbor  PD Insert Shank ClssID MIID MIID_2 CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~16.002 8.0020.00120.0060.0041.8020.50X 516.00~4.90~0.231~2.0~ ~ ~ ~ ~W 71E01A05D27A8 ~2FB160-M APKT 09T3 PER-EM ZYL ~10 ~70.00~6125070 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6125070 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6125070&cat=6125070&itemDesc=2F 16-20-W20-L120-P"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6125070', '2F 16-20-W20-L120-P' , 'DXF' , '6125070 - 2F 16-20-W20-L120-P');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6125070&itemDesc=2F 16-20-W20-L120-P"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

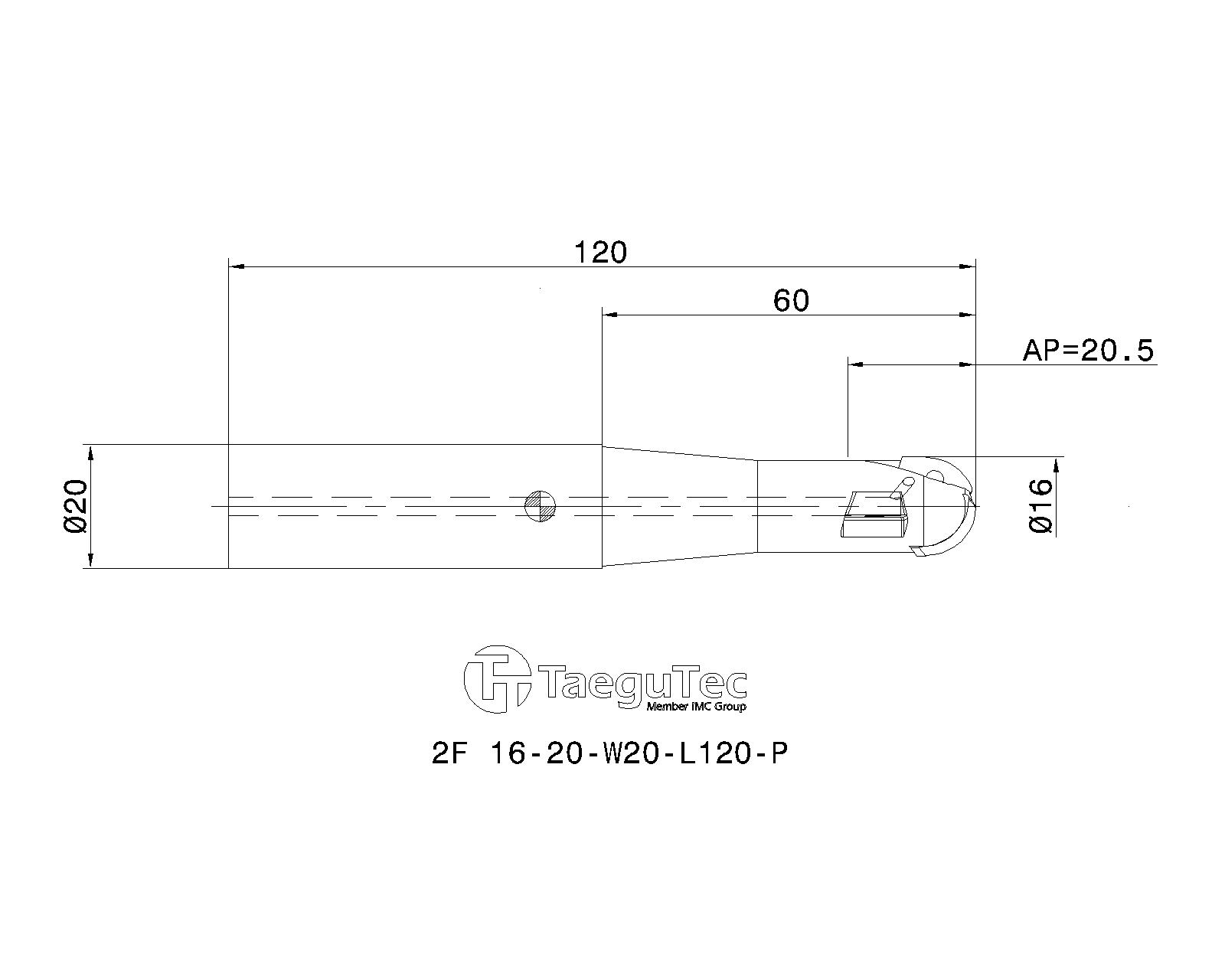

2D Representation
  Spare Parts
4351486TS 25064IScrew
4351180TD 8(T-8/51)TD wrench
