TaeguTec Cutting Tools - Metal Working Tools - HSF 6...M : 6127480 - HSF 6120M 260
× Login Information

Family Designation: HSF 6...M High precision solid carbide end mills of flat type with medium length & 6 flute for finishing of hardened steel


 EM FLUTES_6  EM HELIX ANGLE_45
Item Designation: HSF 6120M 260
Tool sty DC OAL APMX DCONMS FHA Shank RMPX fz
(min) 		fz
(max) 		NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~12.0080.0026.0012.0045.0~C ~5.00~0.0530.0706~71E01A05D27A8 ~ZYL ~01 ~35.00~6127480 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6127480 TT55053<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6127480&cat=6127480&itemDesc=HSF 6120M 260"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6127480', 'HSF 6120M 260' , 'DXF' , '6127480 - HSF 6120M 260');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6127480&itemDesc=HSF 6120M 260"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

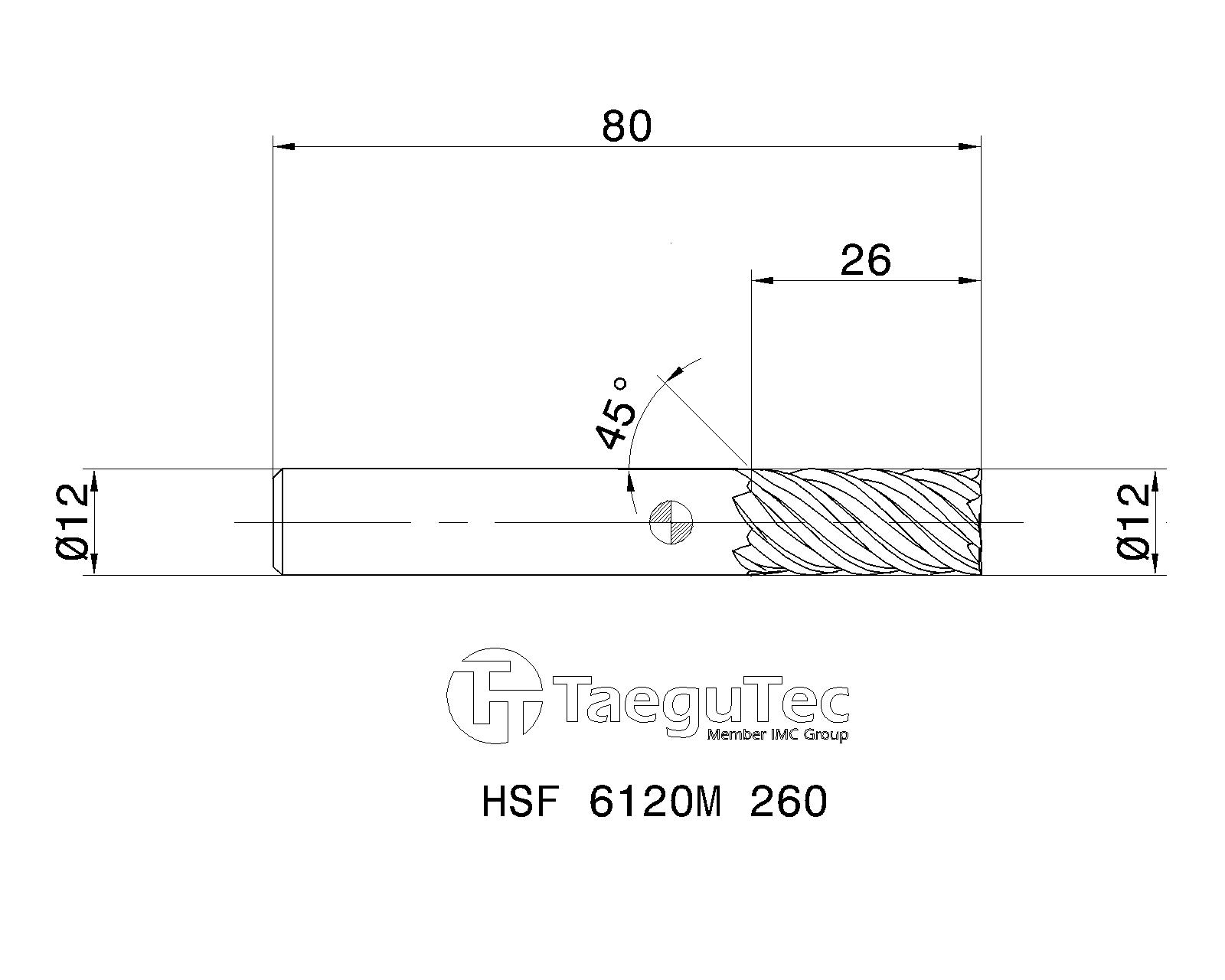

2D Representation
