Family Designation: EFE 2...S Economical 2 flute solid carbide end mills with flat & short type for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels (Hardness < 45 HRC)


 EM FLUTES_2  EM HELIX ANGLE_30

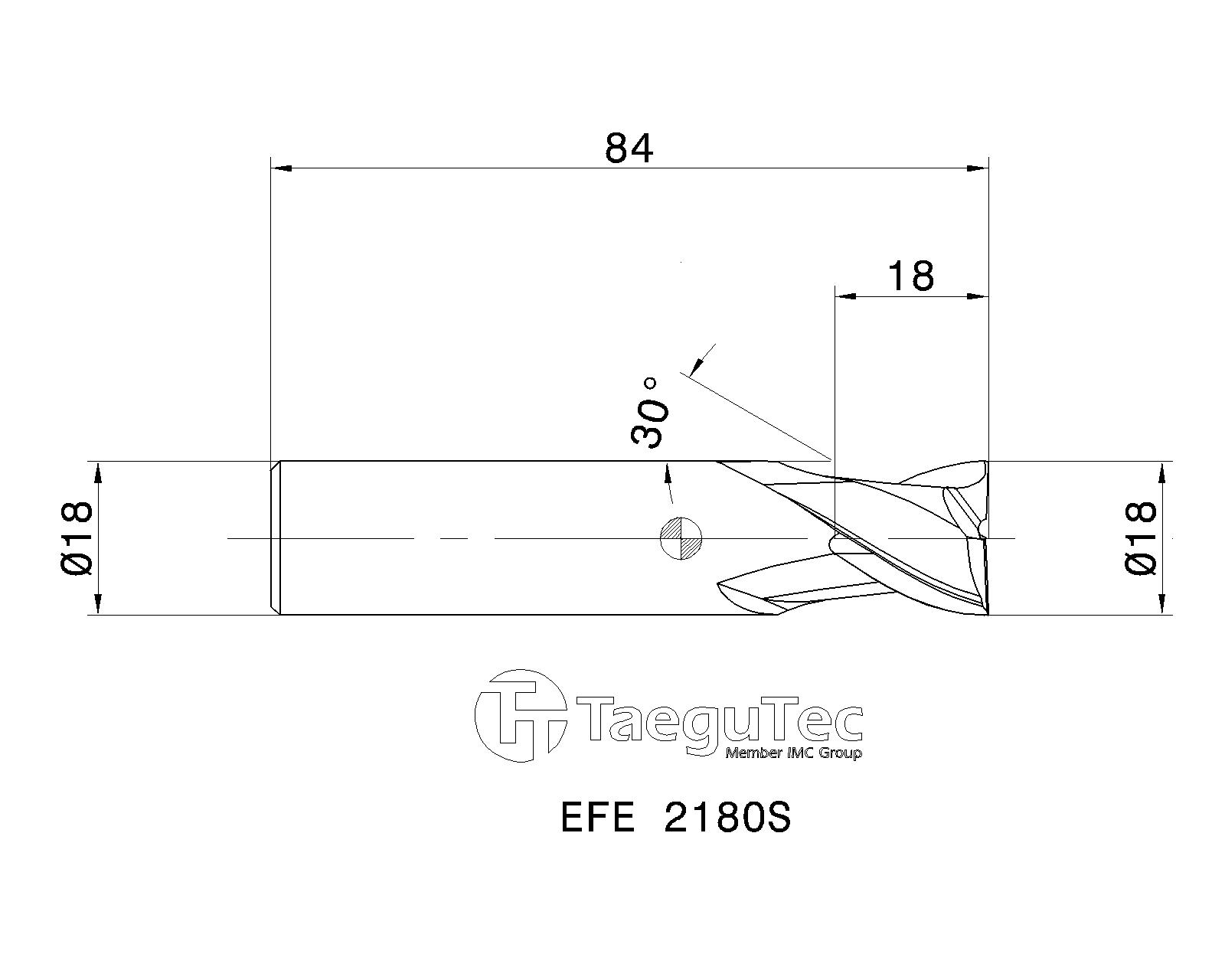

Item Designation: EFE 2180S
Tool sty DC OAL APMX DCONMS FHA Shank RMPX fz
(min) 		fz
(max) 		NOF  ClssID LTA GICATGIREMgiic
SOLID TYPE ~18.0084.0018.0018.0030.0~C ~5.00~0.0400.1402~71E01A05D27A8 ~36.00~6128916 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6128916 TT55253<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6128916&cat=6128916&itemDesc=EFE 2180S"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6128916', 'EFE 2180S' , 'DXF' , '6128916 - EFE 2180S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6128916&itemDesc=EFE 2180S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation
2D Representation
