Milling & Solid End mills
Main Application
Profiling
Sub Application

Family Designation: HSB 2...M High precision solid carbide ball nose end mills of medium type & 2 flute for high speed machining of hardened steel and pre-hardened steel


 EM FLUTES_2  EM HELIX ANGLE_30
Item Designation: HSB 2005M 010
Tool sty DC RE OAL APMX DCONMS FHA Shank RMPX NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~0.500.2545.001.004.0030.0~C ~0.00~2~71E01A05D27A8 ~ZYL ~01 ~25.00~6135816 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6135816 TT55053<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6135816&cat=6135816&itemDesc=HSB 2005M 010"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6135816', 'HSB 2005M 010' , 'DXF' , '6135816 - HSB 2005M 010');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6135816&itemDesc=HSB 2005M 010"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

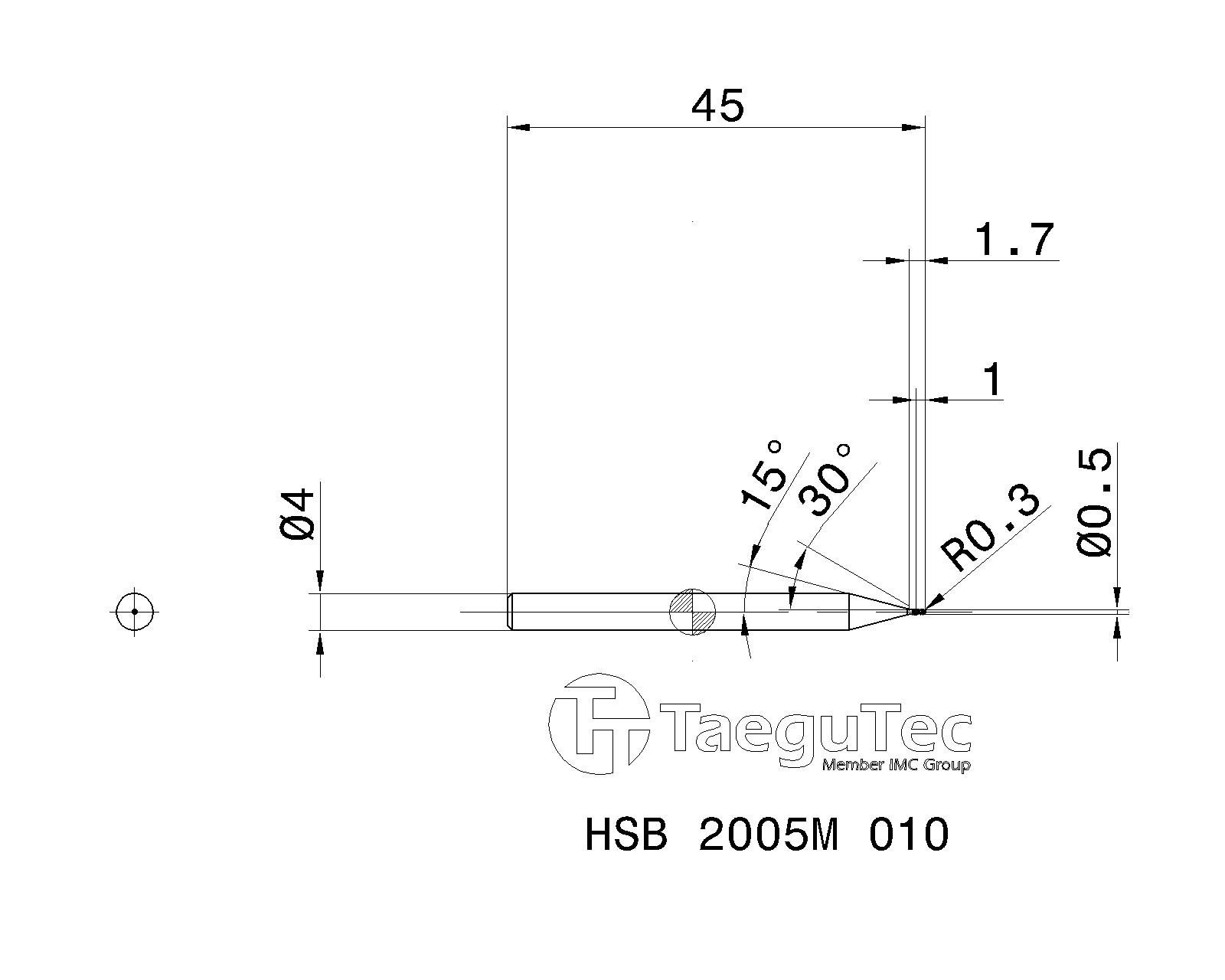

2D Representation
