TaeguTec Cutting Tools - Metal Working Tools - TNFR...-CT-L... : 6140834 - TNFR 300-32-CT-L350
× Login Information

Family Designation: TNFR...-CT-L... End mill holders for finishing with corner radius inserts of NFR and carbide shank of better rigidity


Item Designation: TNFR 300-32-CT-L350
Tool sty DC DCONMS BD OAL LH S2 S3 Shank e KAPR HAND Arbor  PD Insert ClssID MIID  AE RE CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~30.0032.0029.50350.00230.0030 ~32 ~C ~3 ~3.4490.0~ ~ ~RC ~FB-30R ~71E01A05D27A8 ~NFR 300A-R05 X ~0.0~0.50~ZYL ~01 ~290.00~6140834 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6140834 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6140834&cat=6140834&itemDesc=TNFR 300-32-CT-L350"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6140834', 'TNFR 300-32-CT-L350' , 'DXF' , '6140834 - TNFR 300-32-CT-L350');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6140834&itemDesc=TNFR 300-32-CT-L350"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

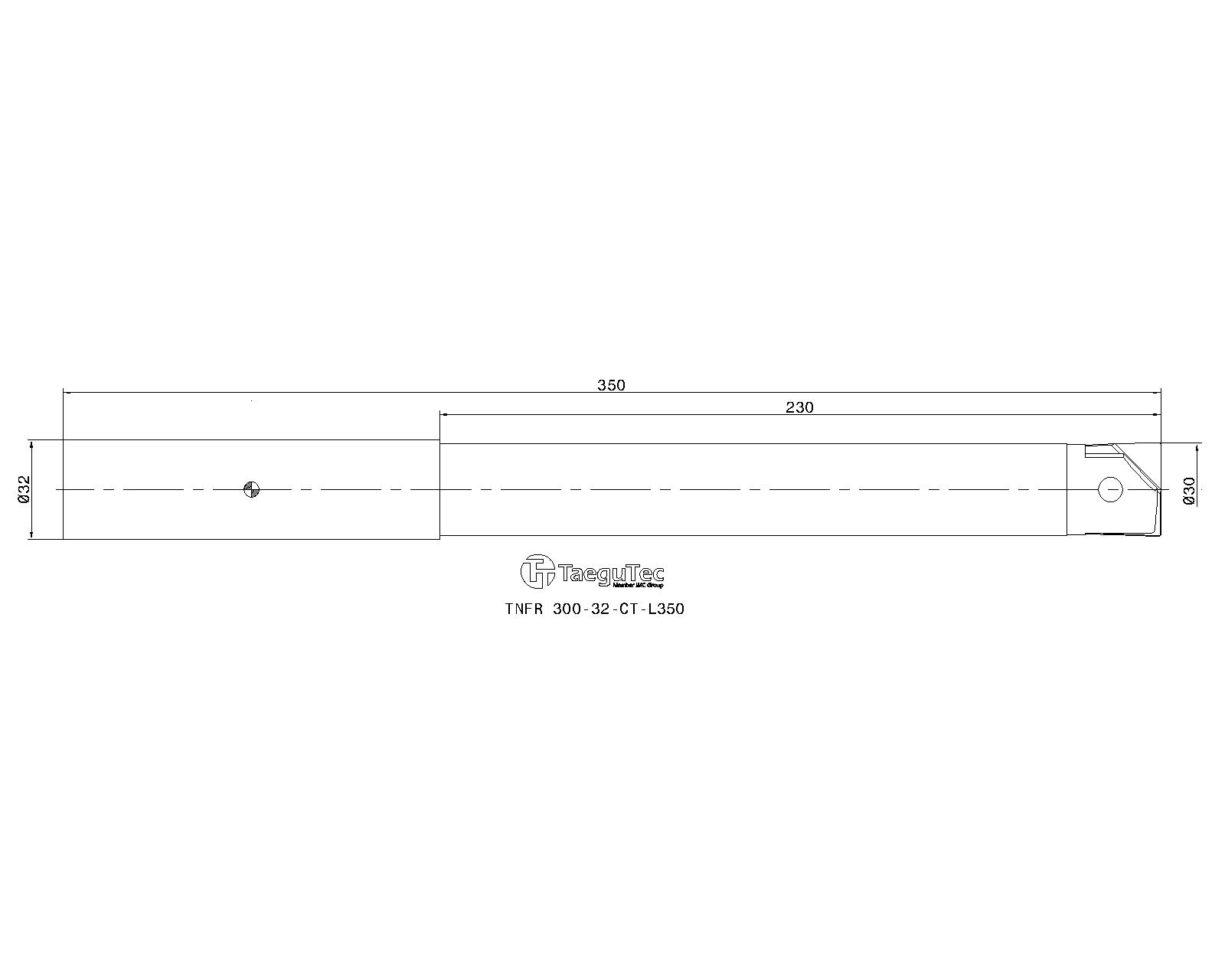

2D Representation
  Spare Parts
4354000TS 80F300AScrew
4351498T-T30T-T wrench
