TaeguTec Cutting Tools - Metal Working Tools - TSE 2...M : 6145767 - TSE 2180M(45X110)
× Login Information

Family Designation: TSE 2...M Solid carbide end mills with flat type & medium & 2 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels


 EM FLUTES_2  EM HELIX ANGLE_30
Item Designation: TSE 2180M(45X110)
Tool sty DC OAL APMX DCONMS NOF  FHA Shank RMPX fz
(min) 		fz
(max) 		ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~18.00110.0045.0020.002~30.0~C ~5.00~0.0400.14071E01A05D27A8 ~ ZYL ~01 ~60.00~6145767 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6145767 TT55153<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6145767&cat=6145767&itemDesc=TSE 2180M(45X110)"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6145767', 'TSE 2180M(45X110)' , 'DXF' , '6145767 - TSE 2180M(45X110)');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6145767&itemDesc=TSE 2180M(45X110)"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

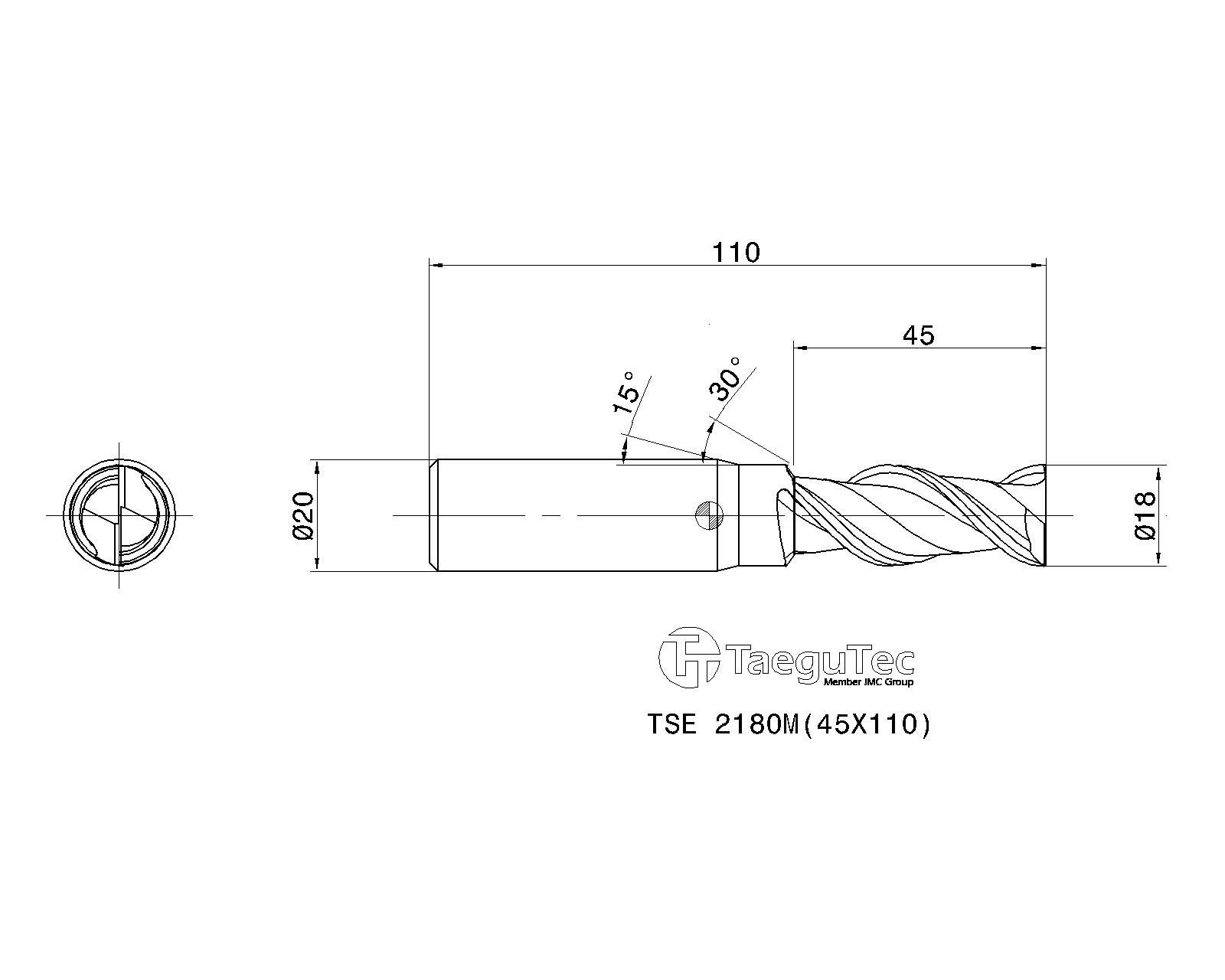

2D Representation
