TaeguTec Cutting Tools - Metal Working Tools - RCFE : 6146643

Family Designation: RCFE

Multi-flute router end mills for roughing of composite materials with high productivity by low cutting force

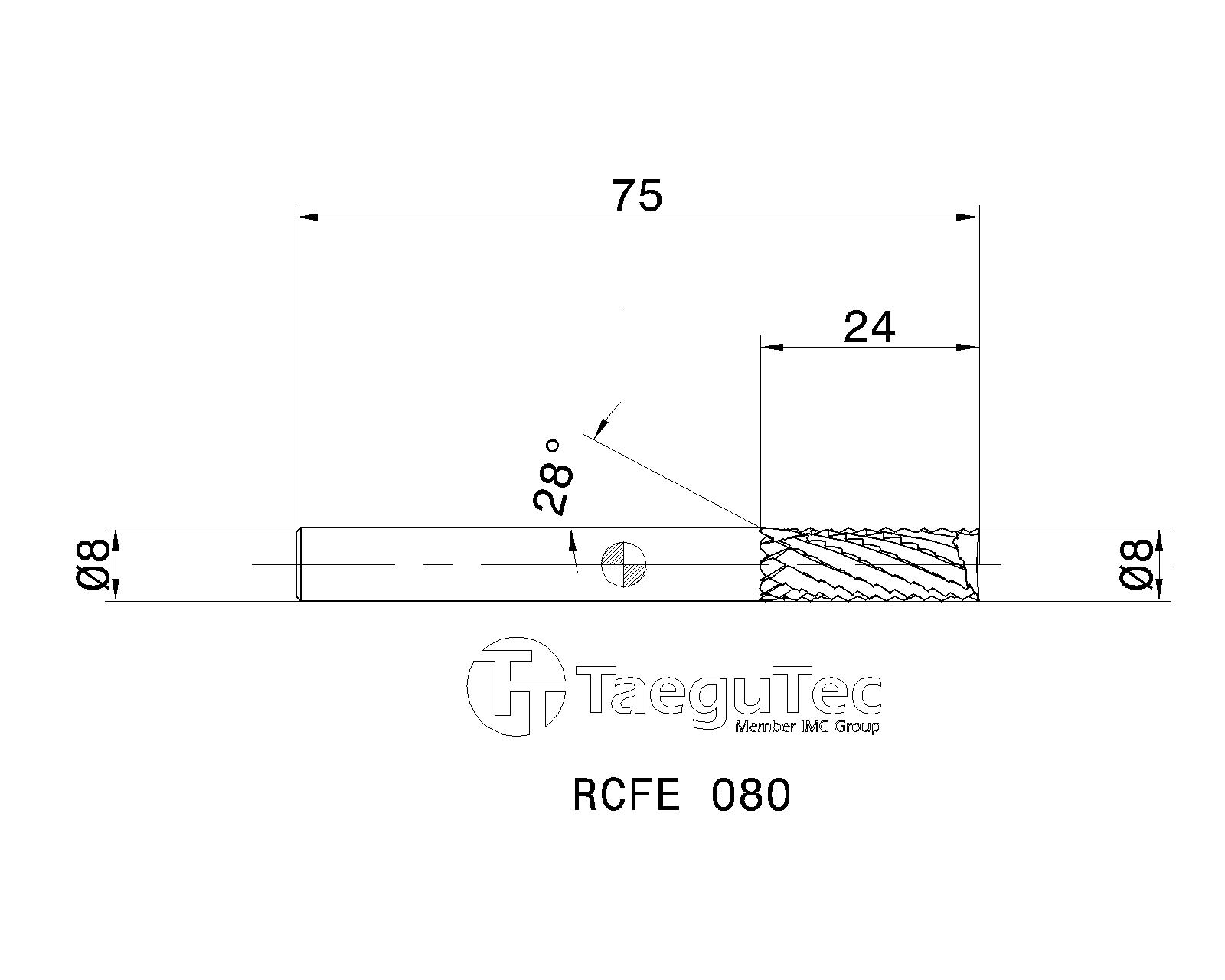

Item Designation: RCFE 080

Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	8.00	75.00	24.00	8.00	28.0~	C ~	5.00~	0.010	0.020	71E01A05D27A8 ~	ZYL ~	01 ~	39.00~	6146643		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6146643	TTD610			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6146643&cat=6146643&itemDesc=RCFE 080"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6146643', 'RCFE 080' , 'DXF' , '6146643 - RCFE 080');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6146643&itemDesc=RCFE 080"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
