Family Designation: RCOM Solid carbide end mills with left and right helix for finishing of composite materials by eliminating delamination and splintering


 EM FLUTES_4-6  EM HELIX ANGLE_30
Item Designation: RCOM 4080
Tool sty NOF  DC  OAL APMX APMX_2 DCONMS FHA Shank RMPX fz
(min) 		fz
(max) 		ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~48.0075.0024.009.208.0030.0~C ~5.00~0.0200.05071E01A05D27A8 ~ ZYL ~01 ~39.00~6146648 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6146648 TTD6103<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6146648&cat=6146648&itemDesc=RCOM 4080"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6146648', 'RCOM 4080' , 'DXF' , '6146648 - RCOM 4080');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6146648&itemDesc=RCOM 4080"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For best machining performance, the end mill's intersection point(APMX_2) should be positioned at the center of the workpiece thickness.
3D Representation

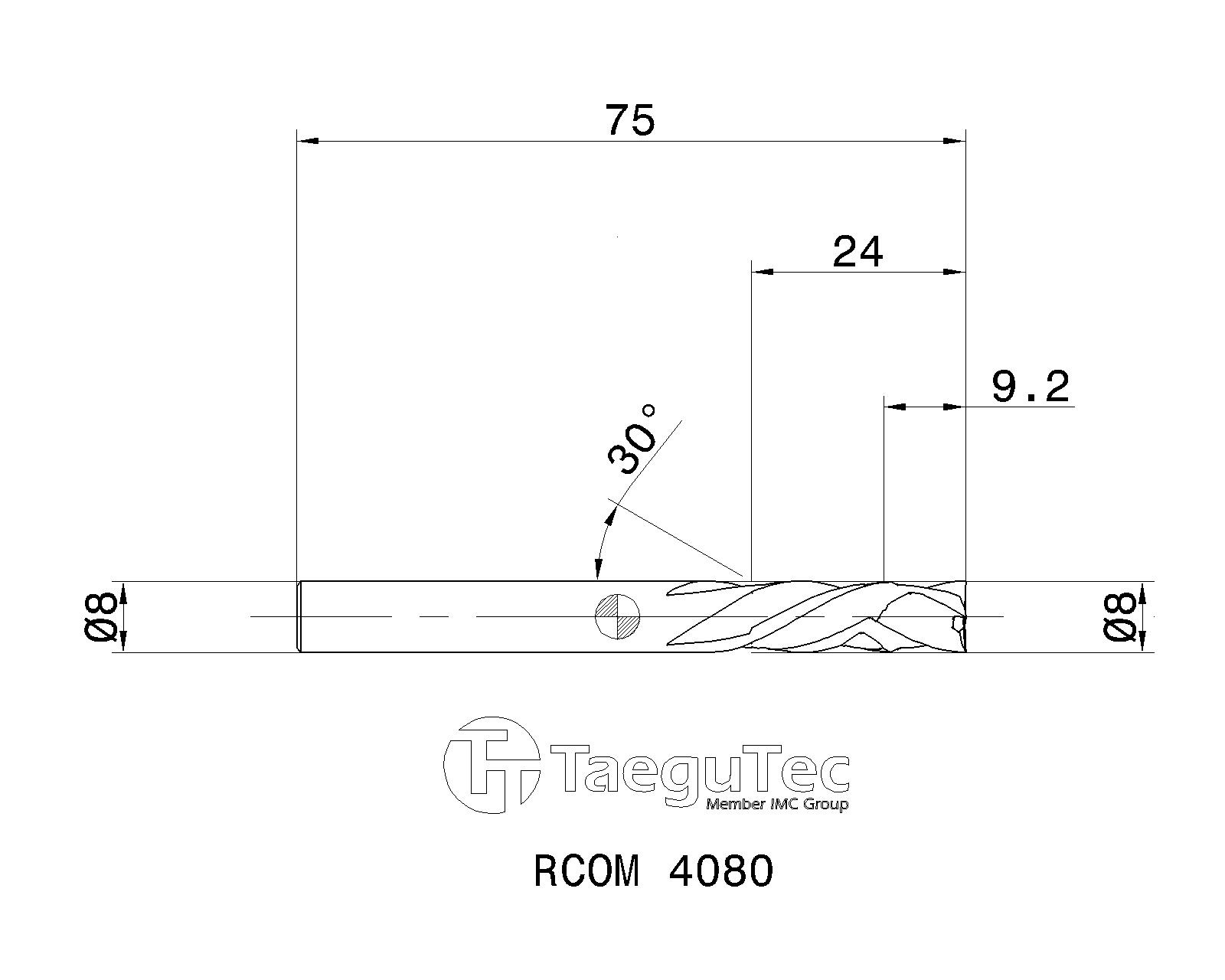

2D Representation
