Family Designation: RCOM Solid carbide end mills with left and right helix for finishing of composite materials by eliminating delamination and splintering


 EM FLUTES_4-6  EM HELIX ANGLE_30
Item Designation: RCOM 6100
Tool sty NOF  DC  OAL APMX APMX_2 DCONMS FHA Shank RMPX fz
(min) 		fz
(max) 		ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~610.0085.0030.007.9010.0030.0~C ~5.00~0.0300.06071E01A05D27A8 ~ ZYL ~01 ~45.00~6146649 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6146649 TTD6103<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6146649&cat=6146649&itemDesc=RCOM 6100"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6146649', 'RCOM 6100' , 'DXF' , '6146649 - RCOM 6100');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6146649&itemDesc=RCOM 6100"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For best machining performance, the end mill's intersection point(APMX_2) should be positioned at the center of the workpiece thickness.
3D Representation

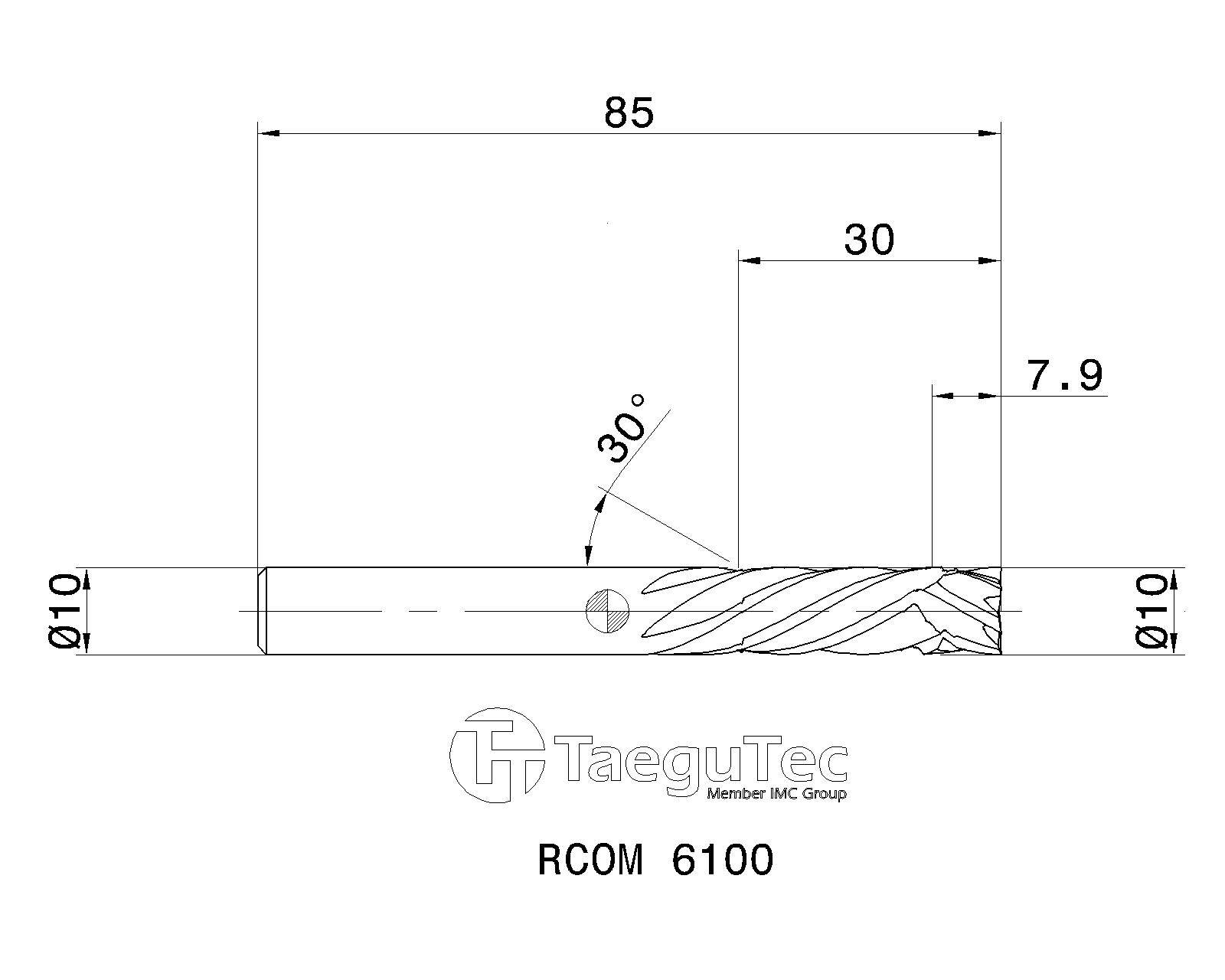

2D Representation
