Family Designation: RDCF Solid carbide end mills with 10° low helix angle of 4-8 flutes for finishing of composite materials by eliminating delamination and splintering


 EM FLUTES_4-8  EM HELIX ANGLE_10

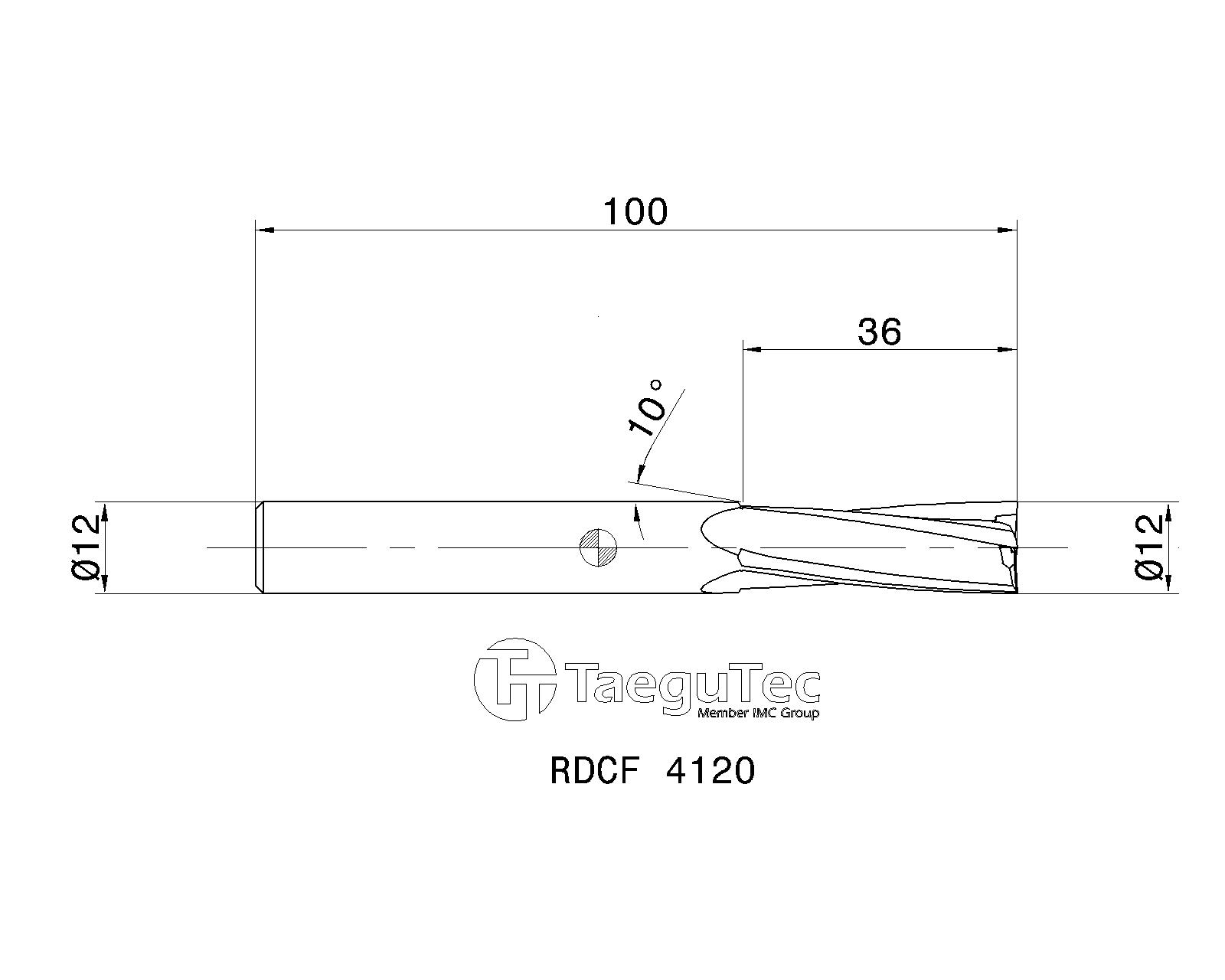

Item Designation: RDCF 4120
Tool sty DC  NOF  OAL APMX DCONMS FHA Shank RMPX fz
(min) 		fz
(max) 		ClssID LTA CCTMS CCFMS GICATGIREMgiic
SOLID TYPE ~12.004100.0036.0012.0010.0~C ~5.00~0.0400.08071E01A05D27A8 ~55.00~ZYL ~01 ~6146655 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6146655 TTD6103<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6146655&cat=6146655&itemDesc=RDCF 4120"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6146655', 'RDCF 4120' , 'DXF' , '6146655 - RDCF 4120');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6146655&itemDesc=RDCF 4120"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
