TaeguTec Cutting Tools - Metal Working Tools - CDF : 6148542

Family Designation: CDF

Solid carbide drills for composite materials

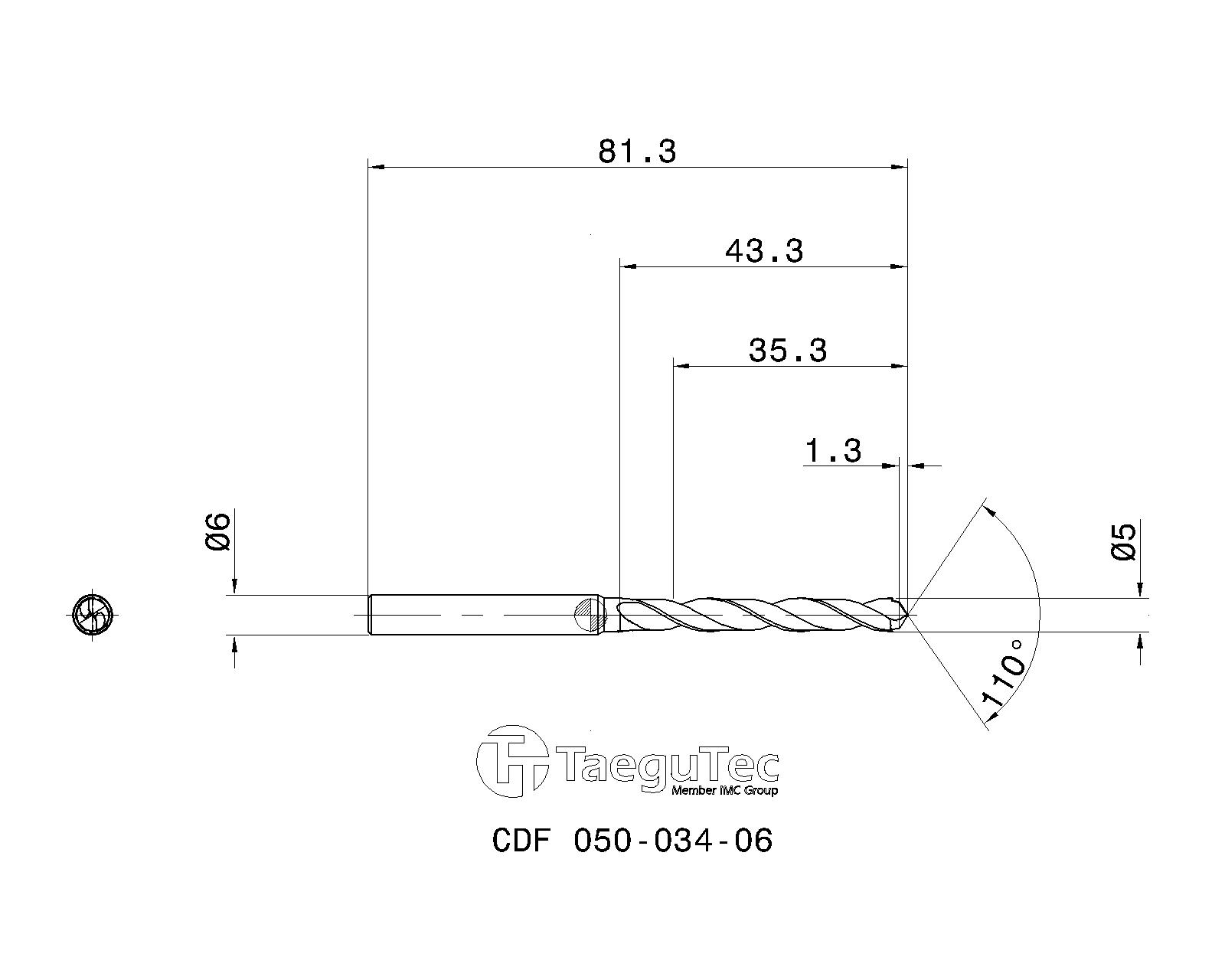

Item Designation: CDF 050-034-06

Tool sty	DC	DCONMS	OAL	LU	LCF	PL	Zeff		Machines	Min Tol	Max Tol	Shank	ClssID	CCFMS	CCTMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	5.00	6.00	81.30	35.3	43.3	1.30	2~	~	~	0~	0~	C ~	71E01A0608FE4 ~	01 ~	ZYL ~	46.40~	6148542		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6148542	TTD610			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6148542&cat=6148542&itemDesc=CDF 050-034-06"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6148542', 'CDF 050-034-06' , 'DXF' , '6148542 - CDF 050-034-06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6148542&itemDesc=CDF 050-034-06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
