TaeguTec Cutting Tools - Metal Working Tools - CDF : 6148550

Family Designation: CDF

Solid carbide drills for composite materials

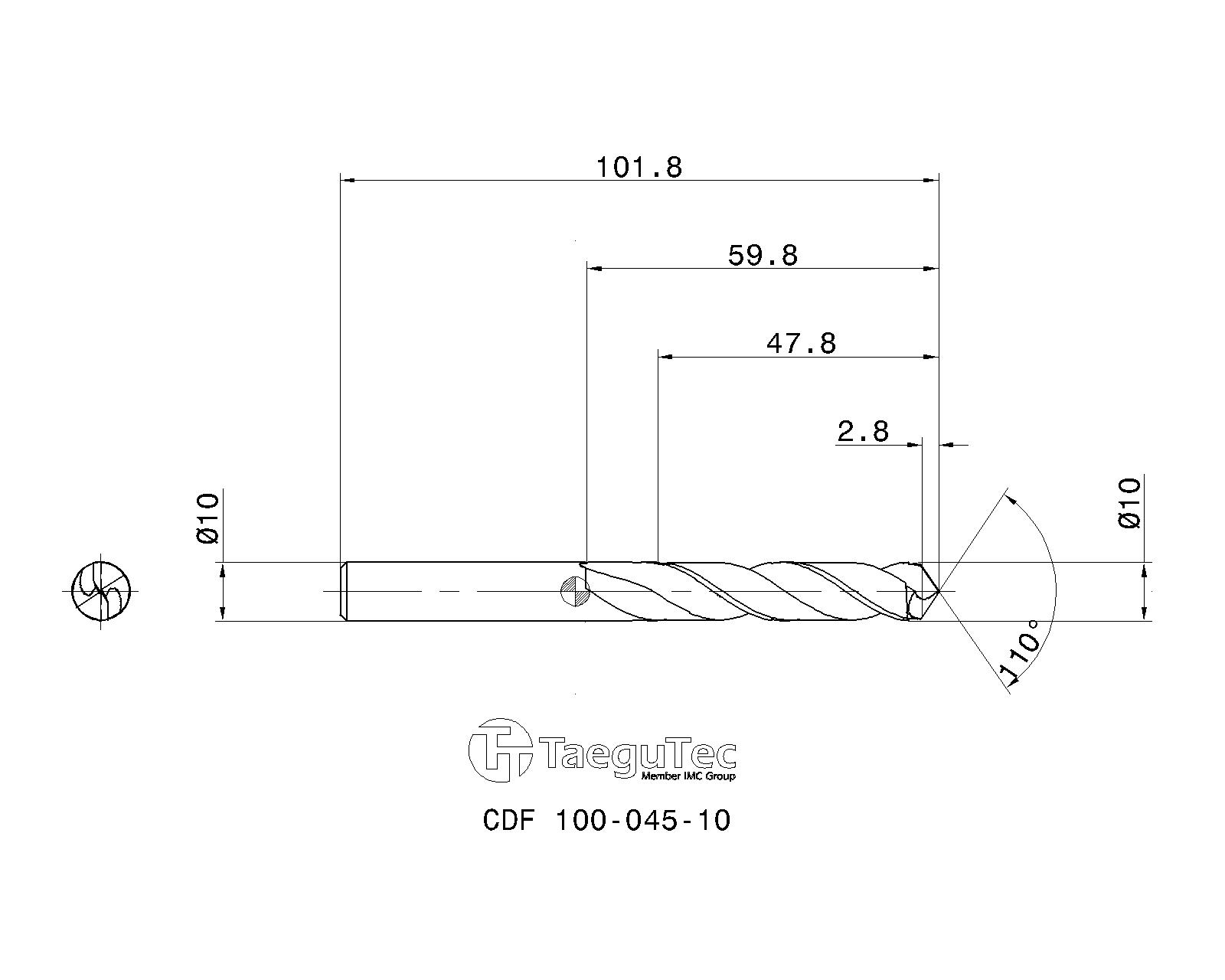

Item Designation: CDF 100-045-10

Tool sty	DC	DCONMS	OAL	LU	LCF	PL	Zeff		Machines	Min Tol	Max Tol	Shank	ClssID	CCFMS	CCTMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	10.00	10.00	101.80	47.8	59.8	2.80	2~	~	~	0~	0~	C ~	71E01A0608FE4 ~	01 ~	ZYL ~	59.00~	6148550		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6148550	TTD610			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6148550&cat=6148550&itemDesc=CDF 100-045-10"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6148550', 'CDF 100-045-10' , 'DXF' , '6148550 - CDF 100-045-10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6148550&itemDesc=CDF 100-045-10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
