Family Designation: 4N TE90-06 90° End mills with unique 4 high positive helical cutting edges of double-sided 4NK(H)T 06 inserts & high ramping


 COOLANT
Item Designation: 4N TE90-433-32-06-L220
Tool sty CICT DC DCONMS OAL LH APMX Fig. S1 Shank RMPX KAPR PD Insert Pocket ClssID MIID  CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~433.0032.00220.0035.006.0026.00~C 1.70~1.2690.0~C ~C4M-4N06 ~4N06-HF ~71E01A05D27A8 ~4NKT 060308R-M O ~ZYL ~01 ~160.00~6157883 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6157883 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6157883&cat=6157883&itemDesc=4N TE90-433-32-06-L220"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6157883', '4N TE90-433-32-06-L220' , 'DXF' , '6157883 - 4N TE90-433-32-06-L220');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6157883&itemDesc=4N TE90-433-32-06-L220"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Cutter body for '4NKT 060320R-HF' and '4NHT 060320R-F' inserts should be modified with body corner radius 2.0 mm
3D Representation

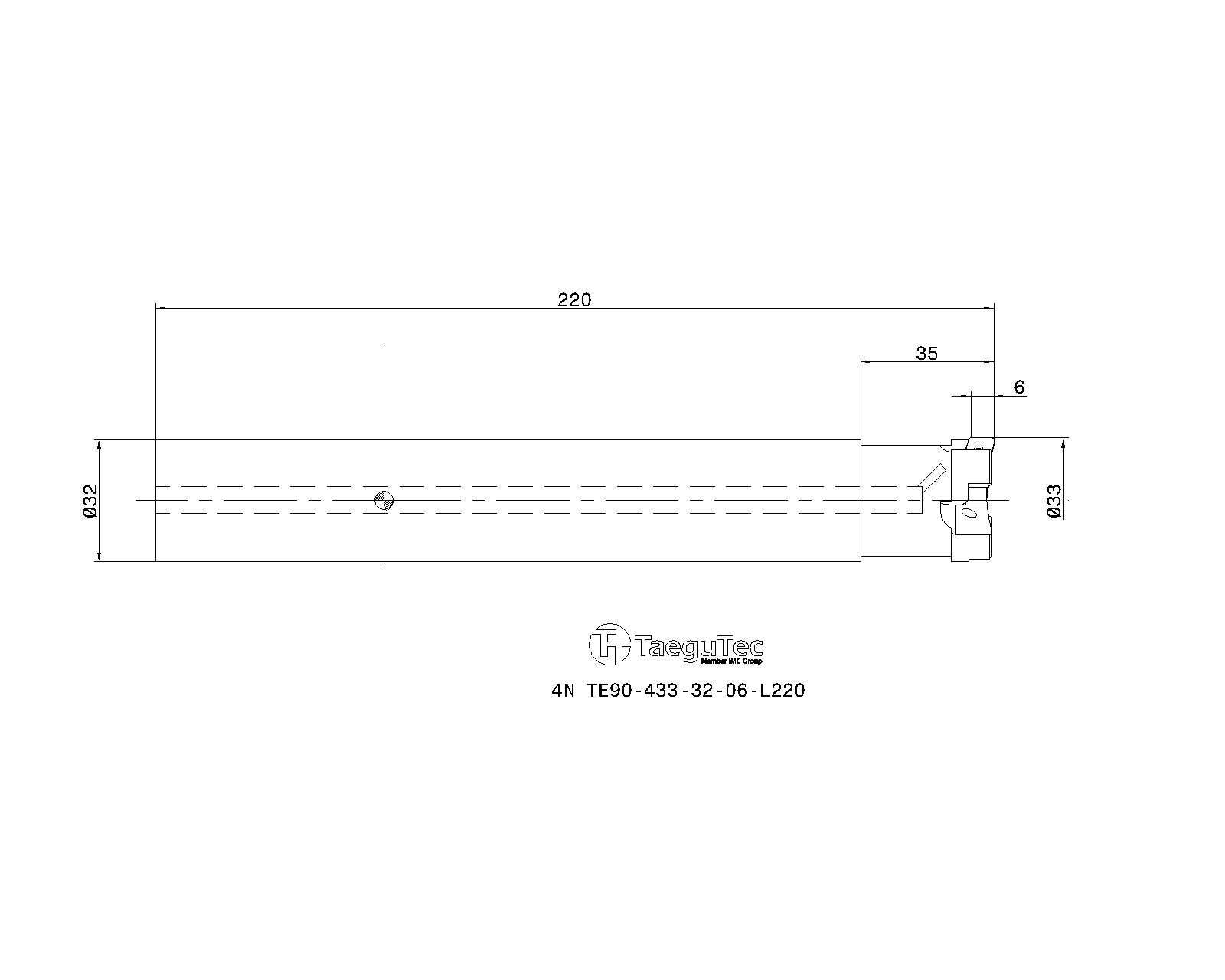

2D Representation
  Spare Parts
6125404TS 30B068I/HGScrew
4351180TD 8(T-8/51)TD wrench
