Family Designation: TFMRX-R-10/12/16 Face mills with positive round inserts of RXM(H)X for general profiling & general machining


Item Designation: TFMRX 566-27R-16
Tool sty S1 DCX  DC CICT DCONMS DHUB OAL APMX Arbor  RMPX HAND KAPR PD Insert Mtg. Ref ClssID MIID  RE CCTMS CCFMS LTA GICATGIREMgiic
FACE MILL ~16.00~66.0050.00527.0058.0050.008.00A 0.535.00~ ~3.0~RC ~CM-RX16 ~SH M12X1.75X35 ~71E01A05B627B ~RXMX 1604-M O 8.00~FDA ~02 ~50.00~6162214 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6162214 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6162214&cat=6162214&itemDesc=TFMRX 566-27R-16"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6162214', 'TFMRX 566-27R-16' , 'DXF' , '6162214 - TFMRX 566-27R-16');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6162214&itemDesc=TFMRX 566-27R-16"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
3D Representation

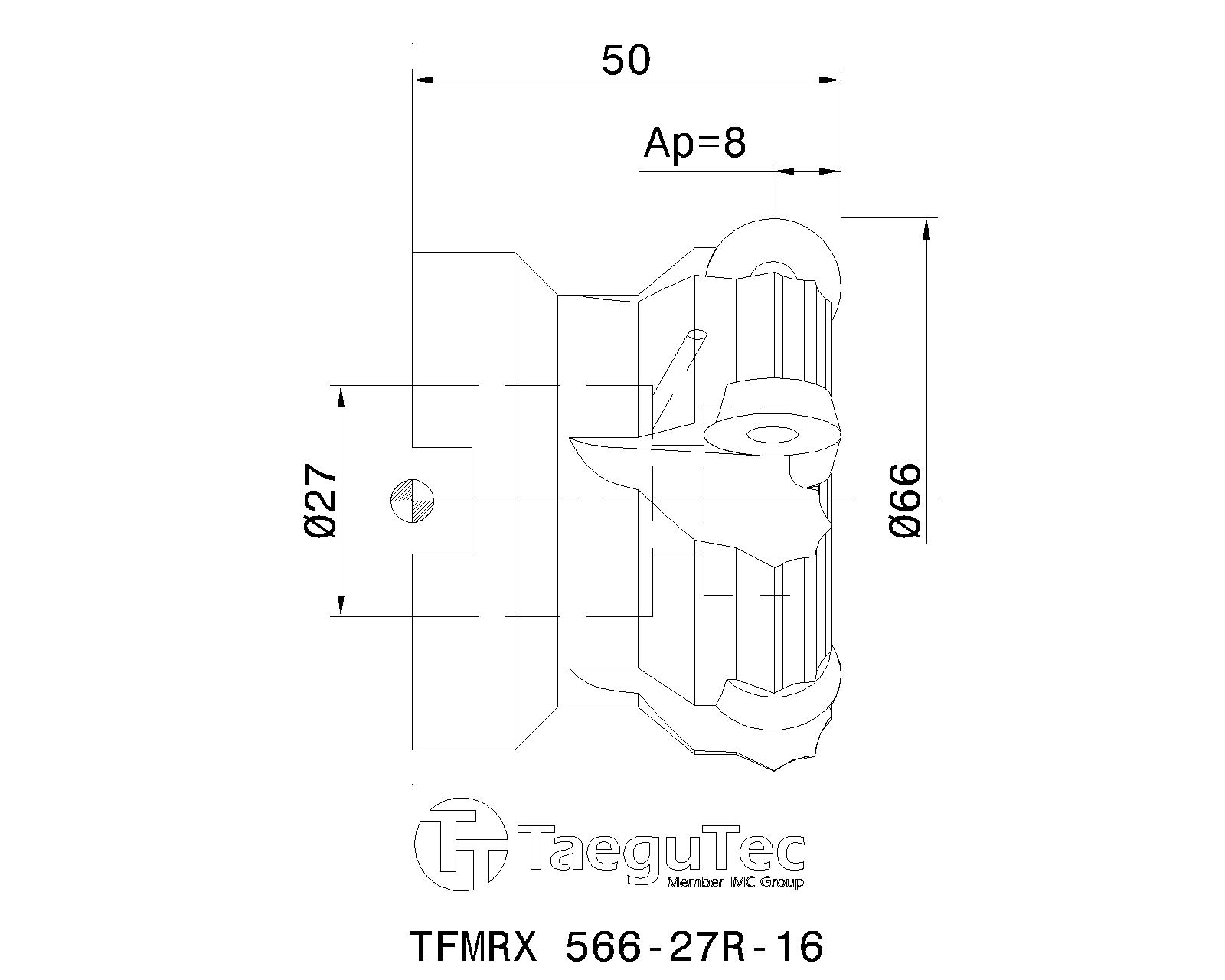

2D Representation
  Spare Parts
4352128TS 45A100I/HGScrew
4351344SH M12X1.75X35Mounting bolt
4351484T-T20T-T wrench
