Family Designation: TE90AN-16 90° End mills with four helical cutting edges of double-sided inserts AN 16


 COOLANT
Item Designation: TE90AN 232-32-16
Tool sty CICT DC DCONMS OAL LH APMX Fig. S1 S5 S6 Shank RMPX KAPR HAND Arbor PD Insert ClssID MIID CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~232.0032.00150.0045.0015.00216.00~ 32.00000 ~ 32.00000 ~C 1.20~0.8390.0~ ~ ~C ~C2M-AN16 ~71E01A05D27A8 ~ANHX 160708R-M O ~ZYL ~01 ~90.00~6162323 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6162323 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6162323&cat=6162323&itemDesc=TE90AN 232-32-16"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6162323', 'TE90AN 232-32-16' , 'DXF' , '6162323 - TE90AN 232-32-16');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6162323&itemDesc=TE90AN 232-32-16"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

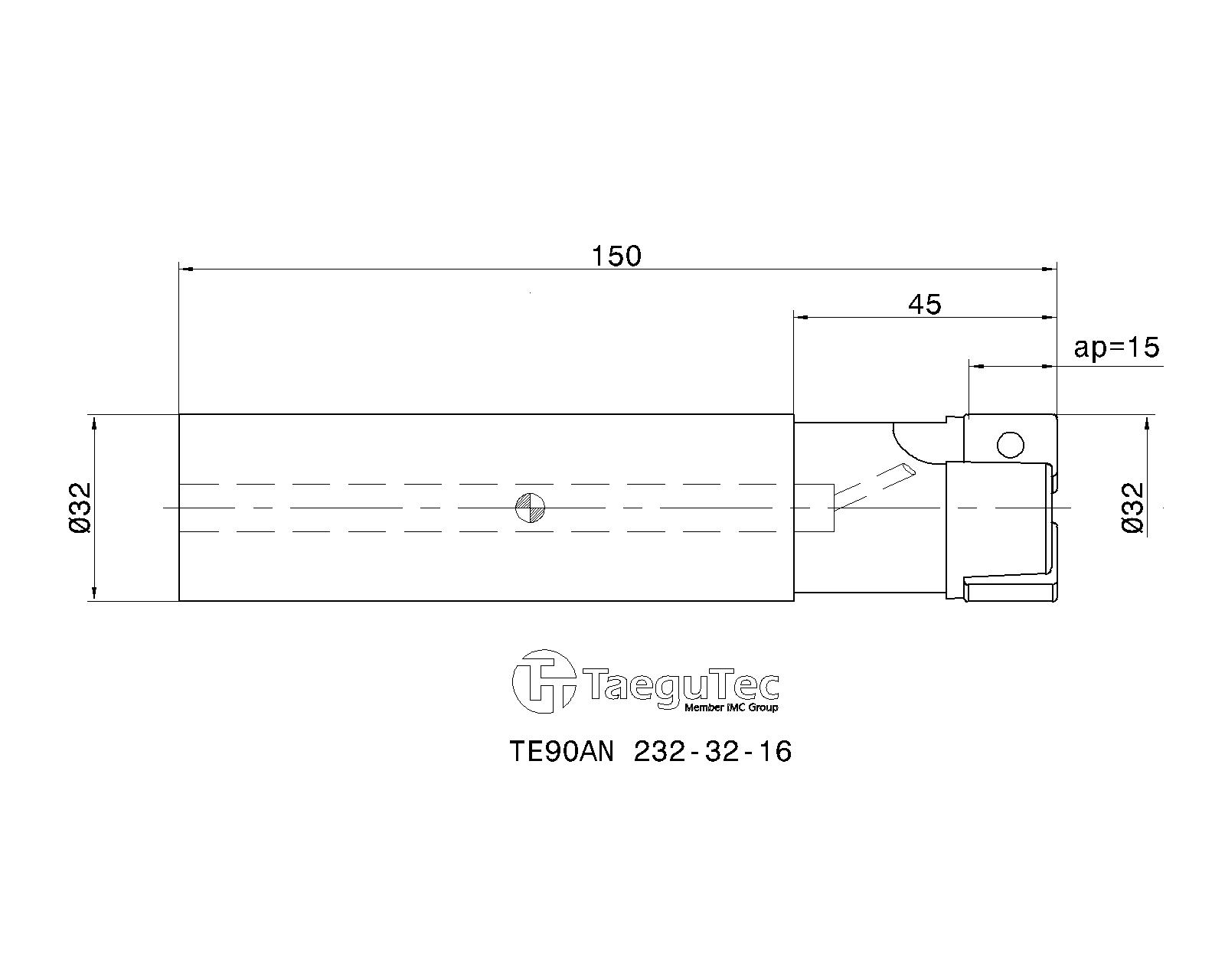

2D Representation
  Spare Parts
4352338TS 40120I/HGScrew
4350869TD 15 (T-15/51)TD wrench
