Family Designation: TFM45SNS-R-16 Heavy duty 45° face mills with double-sided 8 cutting edges inserts of SN 16 for roughing of steels and cast irons


Item Designation: TFM45SNS 8125-40R-16
Tool sty DC CICT DCX  DCONMS DHUB OAL APMX Arbor   Mtg. Ref S1 RMPX KAPR HAND PD Insert ClssID MIID CCTMS CCFMS LTA GICATGIREMgiic
FACE MILL ~125.008143.2040.0085.0063.008.80A O 4.00SH M20X2.5X40 16.00~0.00~45.0~ ~C ~C2Q-SN16 ~71E01A05B627B ~SNMX 1607 ANTN-M FDA ~02 ~63.00~6162528 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6162528 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6162528&cat=6162528&itemDesc=TFM45SNS 8125-40R-16"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6162528', 'TFM45SNS 8125-40R-16' , 'DXF' , '6162528 - TFM45SNS 8125-40R-16');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6162528&itemDesc=TFM45SNS 8125-40R-16"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
3D Representation

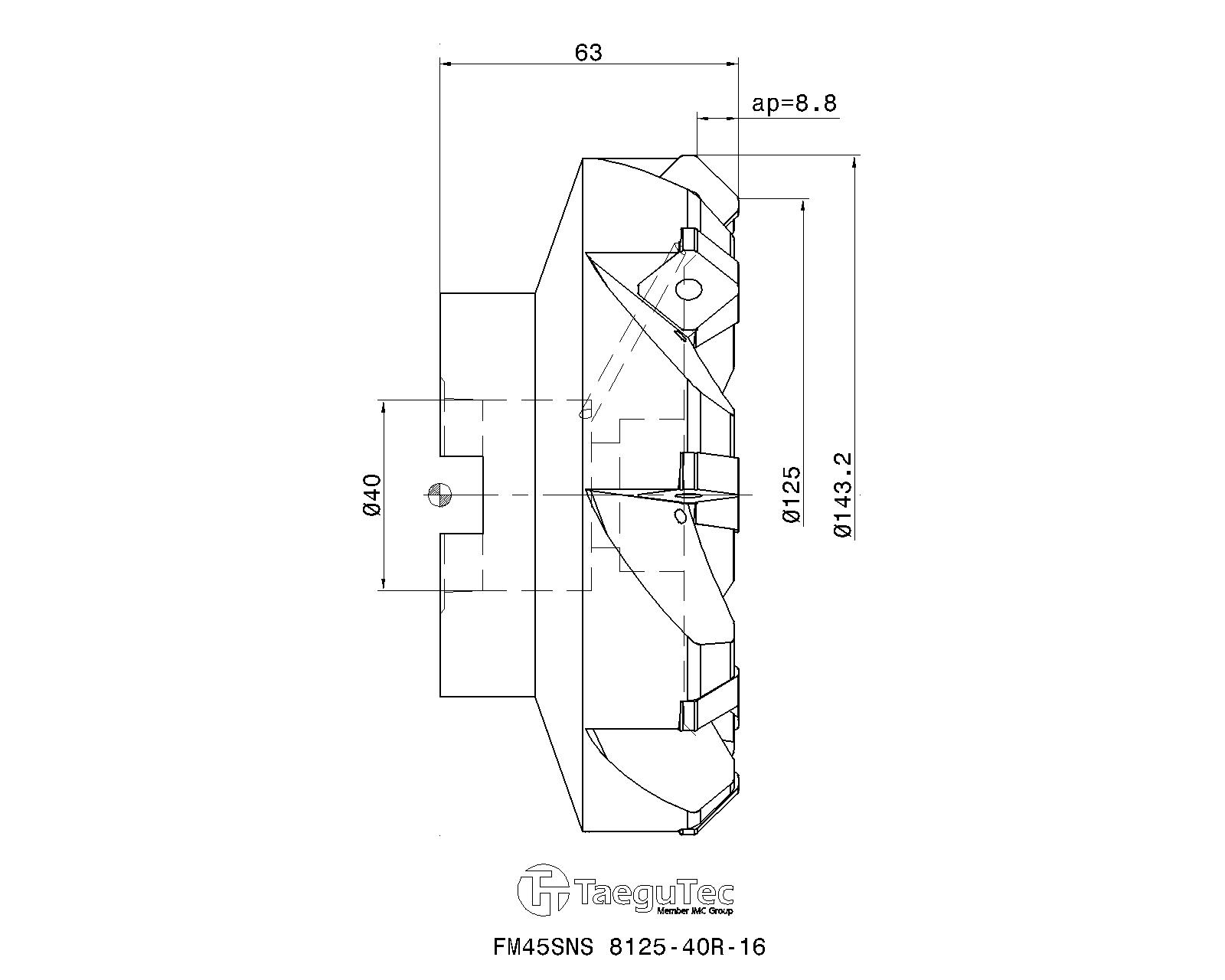

2D Representation
  Spare Parts
4352056TS 45120I(M4.5X12MM)Screw
4351056SH M20X2.5X40Mounting bolt
4351484T-T20T-T wrench
