Family Designation: HSF 2...M (6.0-12.0) High precision solid carbide end mills of flat type with medium length & 2 flute for high speed machining of hardened steel & pre-hardened steel


 EM FLUTES_2  EM HELIX ANGLE_30
Item Designation: HSF 2100M 250
Tool sty DC OAL APMX DCONMS NOF  FHA Shank fz
(min) 		fz
(max) 		RMPX ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~10.0070.0025.0010.00230.0C ~0.1170.1303.00~71E01A05D27A8 ~ZYL ~01 ~37.00~6171540 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6171540 TT55051<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6171540&cat=6171540&itemDesc=HSF 2100M 250"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6171540', 'HSF 2100M 250' , 'DXF' , '6171540 - HSF 2100M 250');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6171540&itemDesc=HSF 2100M 250"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

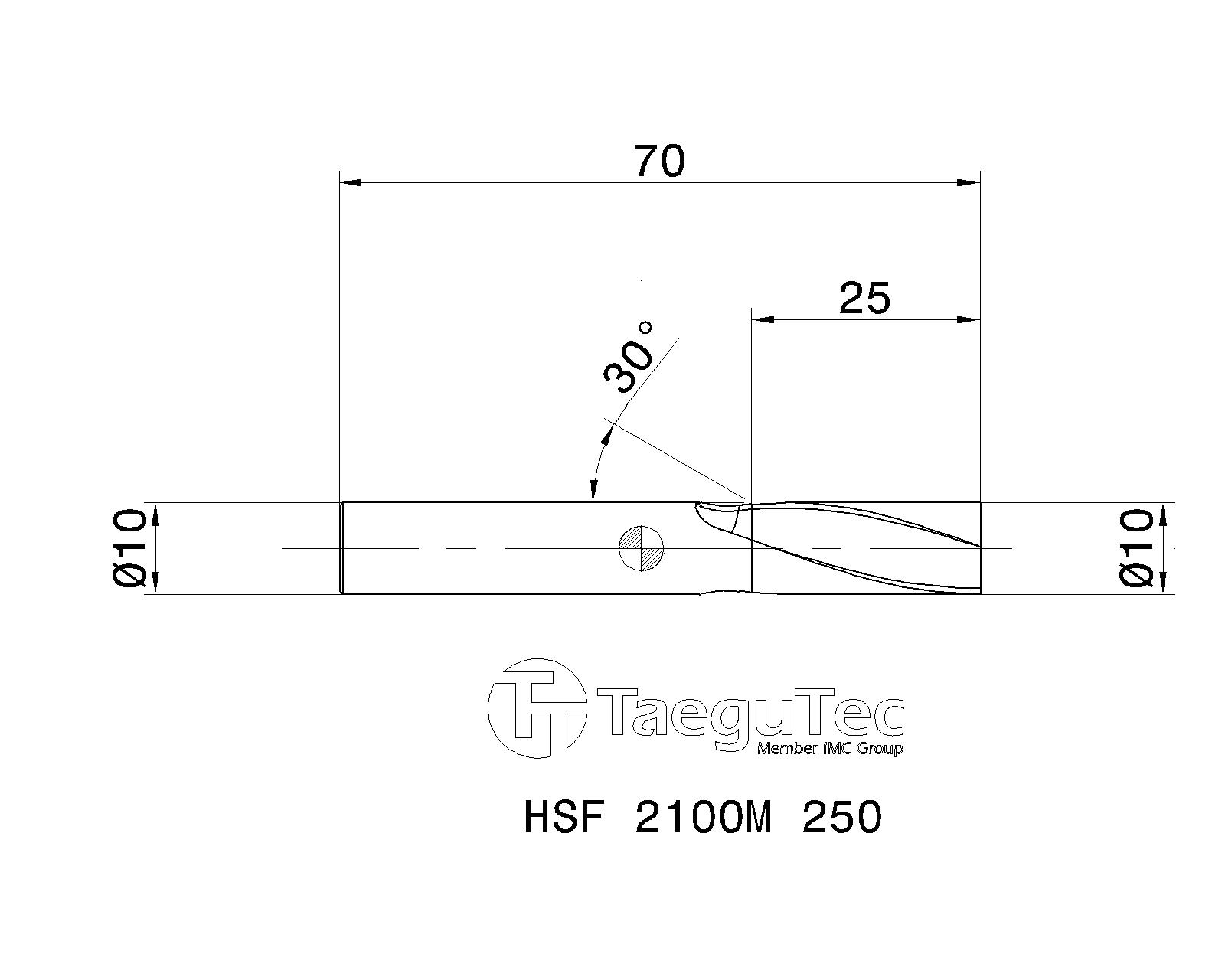

2D Representation
