Family Designation: 4N TE90-09 90° End mills with unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts and high ramping capability


 COOLANT
Item Designation: 4N TE90-432-W25-09
Tool sty DC CICT DCONMS OAL LH APMX Fig.  S1 Shank Rd e PD Insert KAPR Pocket ClssID MIID CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~32.00425.00130.0035.08.001O ~9.00~W 4.90~ ~RC ~0.14C4M-4N09 ~90.0~4N09-HF ~71E01A05D27A8 ~4NKT 090408R-M ZYL ~10 ~74.00~6172909 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6172909 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6172909&cat=6172909&itemDesc=4N TE90-432-W25-09"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6172909', '4N TE90-432-W25-09' , 'DXF' , '6172909 - 4N TE90-432-W25-09');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6172909&itemDesc=4N TE90-432-W25-09"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Cutter body for '4NKT 090432R-HF' insert should be modified with body corner radius 3.2 mm
3D Representation

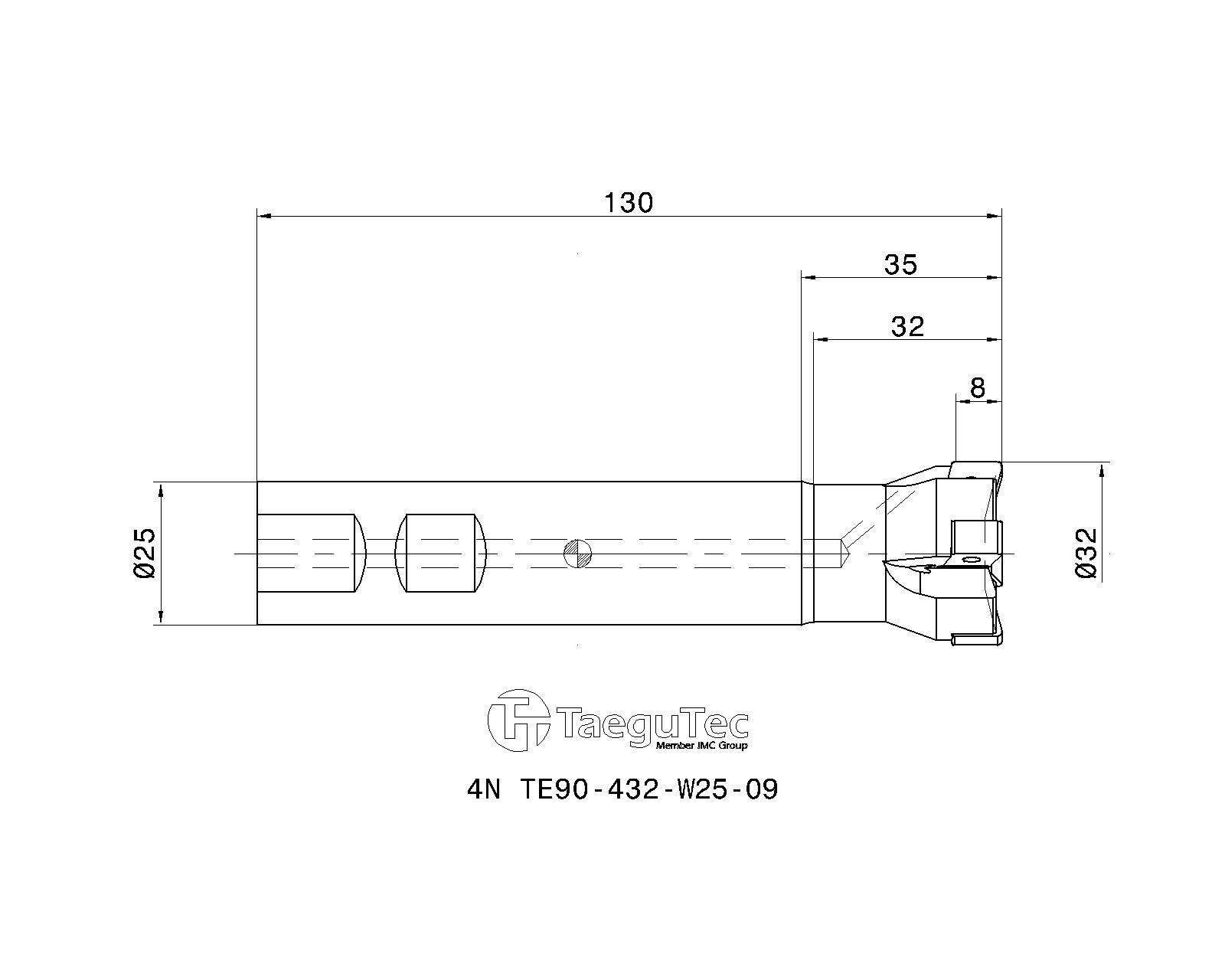

2D Representation
  Spare Parts
4352126TS 35A088I/HGScrew
6321802TBLD T10P-W6Torx wrench
6321791THND 6WHandle
