Family Designation: 4N TE90-11 90° End mills with unique four high positive helical cutting edges of double-sided 4NKT 11 inserts & high ramping capability


 COOLANT
Item Designation: 4N TE90-225-25-11-L200
Tool sty DC CICT DCONMS OAL LH APMX Fig.  S1 Shank Rd e PD Insert KAPR Pocket ClssID MIID CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~25.00225.00200.0040.010.502O ~11.00~C 5.10~ ~ C ~0.68C4M-4N11 ~90.0~4N11-HF ~71E01A05D27A8 ~4NKT 110608R-M ZYL ~01 ~144.00~6178134 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6178134 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6178134&cat=6178134&itemDesc=4N TE90-225-25-11-L200"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6178134', '4N TE90-225-25-11-L200' , 'DXF' , '6178134 - 4N TE90-225-25-11-L200');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6178134&itemDesc=4N TE90-225-25-11-L200"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Cutter body for '4NKT 110640R-HF' insert should be modified with body corner radius 4.0 mm
3D Representation

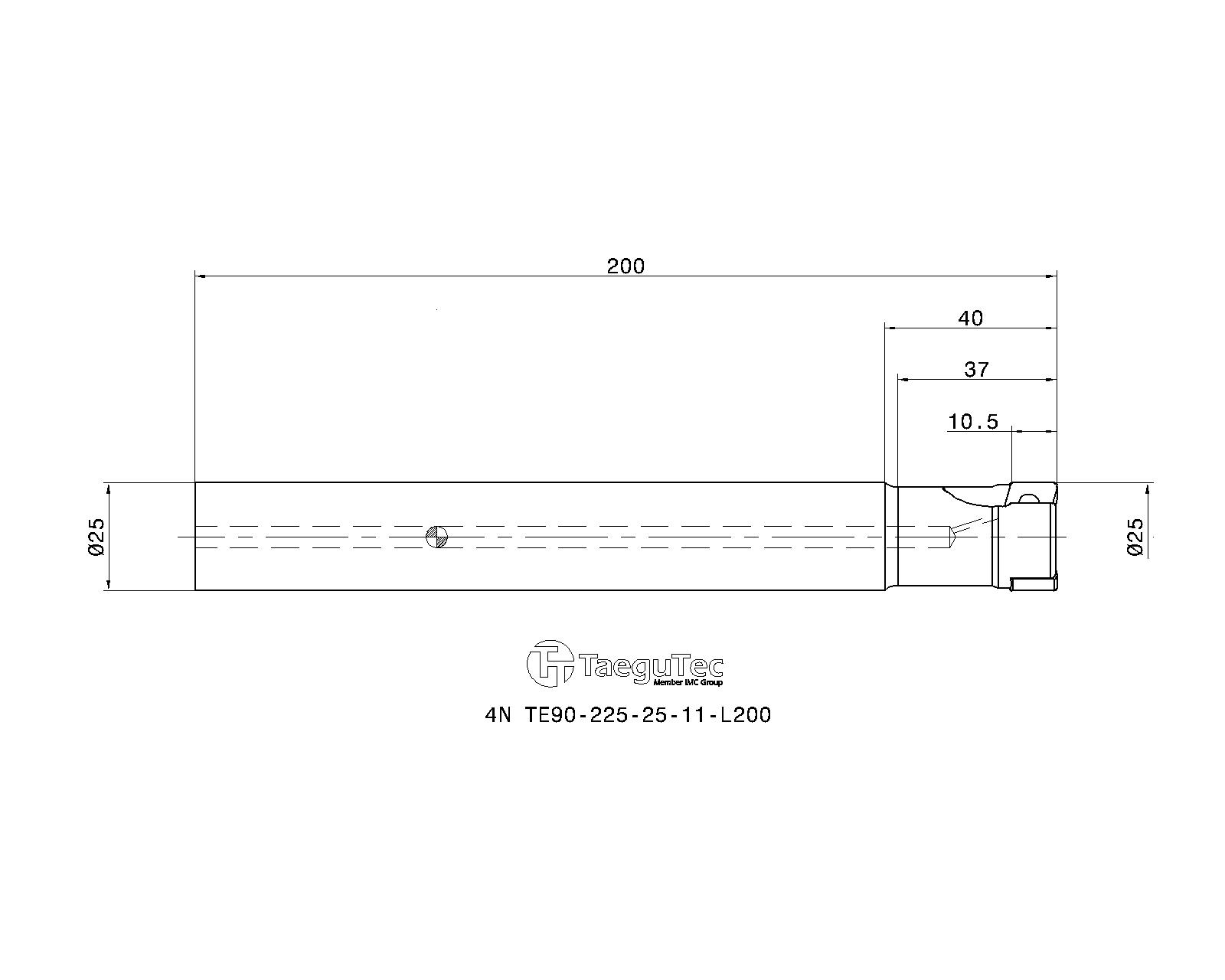

2D Representation
  Spare Parts
4354896TS 40093I/HGScrew
6321803TBLD T15-W6Torx wrench
6321791THND 6WHandle
